Product Details:
|
| Product Name: | AIO Touch PC | Touch: | Infrared IR Touch Screen |
|---|---|---|---|
| Resolution: | 1280*1024 | Brightness: | 250 Nits |
| CPU: | Android / I3 / I5 / I7 CPU | RAM: | 2GB , 4GB , 8GB , 16GB , 32GB |
| Memory: | 32GB , 64GB ,128GB , 256GB , 512GB | Interface: | USB / COM / H-DMI /VGA /RJ45, Etc. |
| High Light: | Infrared AIO Touch PC,AIO Touch PC For Android I3,Vandalproof PC All In One Touch |
||
17'' AIO Touch PC Specifications:
| General Information | |
| Model | CCT170-IPK-RK3399 |
| CPU | J1900 / I3/I5/I7/ RK3288/ RK3399 |
| RAM | 2/4/8/16/32GB RAM |
| Memory | SSD 32/64/128/256/512GB |
| Interface | HD-MI, VGA, RJ45, USB , COM |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Android or Win 7/8/10 |
| LCD Specification | |
| Active area(mm) |
337.92 × 270.336 (H×V) mm |
| Resolution |
1280×1024@60Hz |
| Pixel Pitch(mm) |
0.264×0.264 (H×V) |
| Nominal input voltage VDD |
+5V |
| Viewing angle(v/h) |
85/85/80/80 (Typ.)(CR≥10) |
| Contrast |
1000:1 |
| Luminance (cd/m2) | 250 cd/m² (Typ.) |
| Response time |
3.8/1.2 (Typ.)(Tr/Td) ms |
| Support color |
16.7M , 90% NTSC |
| Backlight MTBF(hr) | 30000 |
|
Touchscreen Specification |
|
|
Type |
CJTOUCH infrared IR touch screen |
|
Multi touch |
2-6 points |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Packing Details
--Anti-static film, bubble bag, Pearl sponge and wooden case
Delivery Details
--1~20 working days after deposit received
Delivery method
--TNT, DHL, airfreight and seafreight are welcome. You are welcome to ask us to delivery for you and contact your own agent.

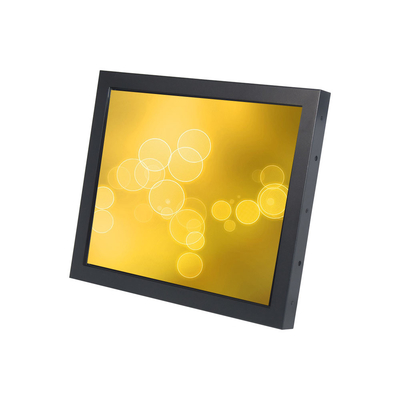

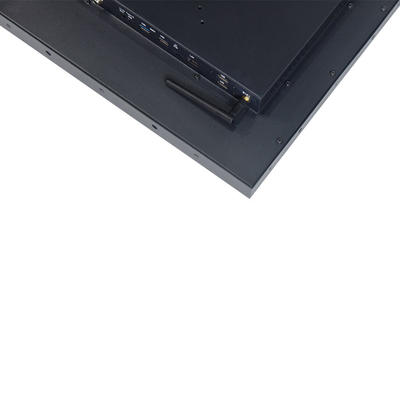

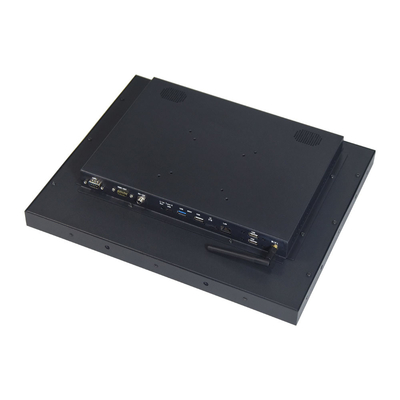

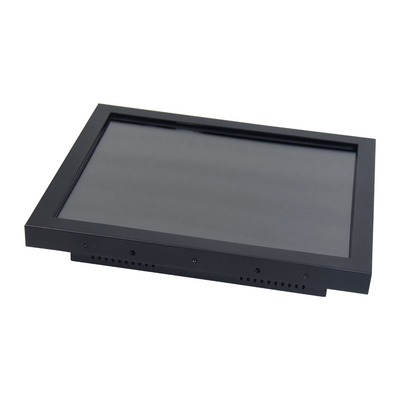

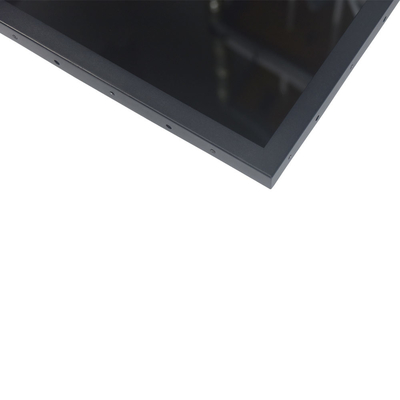

Pictures:
Drawing:
