Product Details:
|
| Series: | AIO Touch PC | Touchscreen: | 10 Points PCAP Touchscreen |
|---|---|---|---|
| Resolution: | 1920 X 1080 | Brightness: | 250 Units |
| CPU Optional: | RK3288 / RK3399 / I3 / I5 / I7 CPU | RAM: | 2GB- 32GB Optional |
| SSD: | 32GB- 512GB Optional | Interface: | VGA/H-DMI /USB /RS232 /RJ45 |
| High Light: | RK3399 AIO Touchscreen Computer,RK3288 AIO Touchscreen Computer,Antiglare Touchscreen All In One |
||
Features:
Specifications:
| General Information | |
| Model | CCT270-CFK-B430-C00 |
| CPU | I3/I5/I7/ And-roid optional |
| RAM | 2GB , 4GB , 8GB , 16GB , 16GB , 32GB Optional |
| Memory | SSD 32GB , 64GB , 128GB , 256GB , 512GB ect Optional |
| Interface | HD-MI, VGA, USB, COM, LAN |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins 7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
597.6 × 336.15 (H×V) mm |
| Resolution |
1920 * 1080@60Hz |
| Pixel Pitch(mm) |
0.31125×0.31125 mm |
| Nominal input voltage VDD |
+5V |
| Viewing angle(v/h) |
89/89/89/89 (Typ.)(CR≥10) |
| Contrast |
3000:1 |
| Luminance (cd/m2) | 250 |
| Response time |
7/5 (Typ.)(Tr/Td) ms |
| Support color |
16.7M |
| Backlight MTBF(hr) | 30000 |
|
Touch screen Specification |
|
|
Type |
CJTouch projected capacitive touchscreen |
|
Multi touch |
10points touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Package :
EPE package inside, carton package outside
Shipping :
For sample order: By Fedex, TNT, UPS, DHL etc.
For bulk order: By air to airport or by sea to seaport.
You are welcome to ask us to delivery for you and contact your own agent.

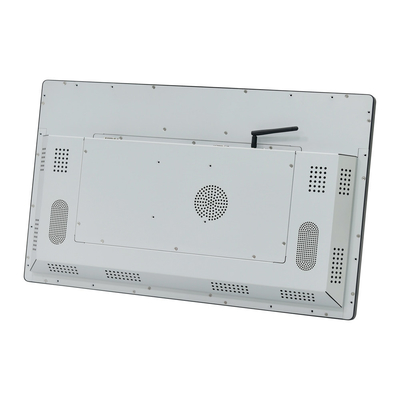

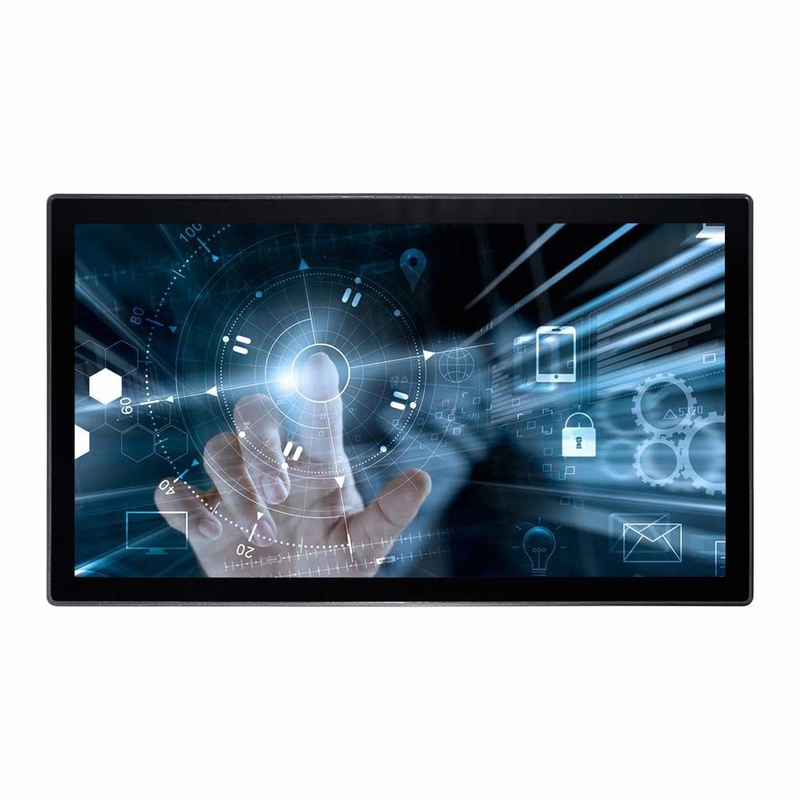

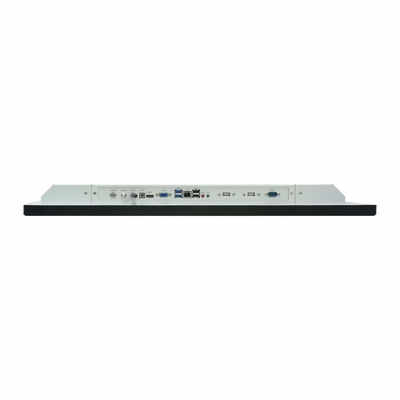

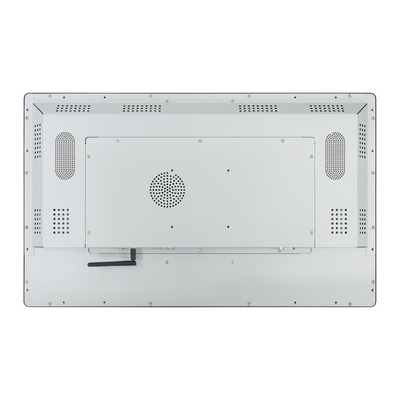

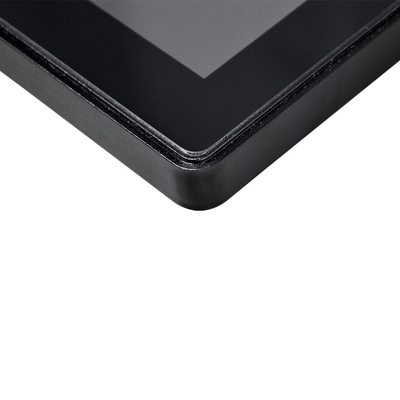

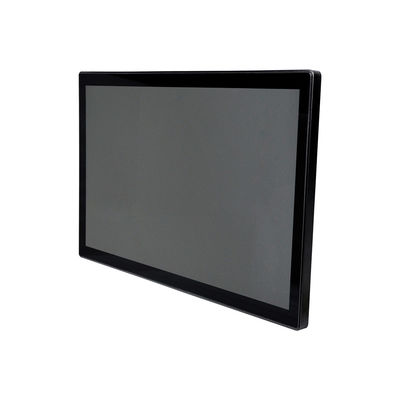

Pictures:
Drawing:
