Product Details:
|
| Series: | Flat Screen Frameless Waterproof | Resolution: | 1920(RGB)×1080 (FHD)(60Hz) |
|---|---|---|---|
| Aspect Ratio: | 16:9 | Luminance(cd/m2): | 400 Cd/m² |
| Response Time(Rising): | 10ms | Viewing Angle (v/h): | 178/178 |
| Contrast: | 1100:1 | Power Supply: | AC220V |
| Warranty: | 1 Year | ||
| Highlight: | 220V PCAP Touch Panel,32Inch PCAP Touch Panel,IP65 Projected Capacitive Touch Screen Monitor |
||
32 inch 10 touch points Flat screen PCAP Touch Monitor Water-proof Project Capacitive Touch screens meet IP65 standard
Experience:
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single & Multi-touch screens (custom sizes available)
Single & Multi-touch monitors (custom sizes and functions available)
All-in-one computers
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
Surface Acoustic Wave (SAW) touch technology
Infrared touch technology
Projected Infrared Touch technology
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.
32 inch PCAP touch monitor Features:
Simple desigh with good stability performance
Ture flat touchscreen desigh
Support 10 points multi touch
With 4mm tempered glass, waterproof/ vandalproof/ dustproof/ sunlight readable option
Operation system: Wins/ Linus/ Andriod
Customer customization can be accepted
32 inch Capacitive touch monitor specification :
| Display Specifications | |||||
| Characteristic | Value | Comment | |||
| LCD Size/Type | 32” a-Si TFT-LCD | ||||
| Aspect Ratio | 16:9 | ||||
| Active Area | Horizontal | 698.4mm | |||
| Vertical | 392.85mm | ||||
| Pixel | Horizontal | 0.36375 | |||
| Vertical | 0.36375 | ||||
| Panel Resolution | 1920(RGB)×1080 (FHD)(60Hz) | Native | |||
| Display Color | 16.7 Million | 8-bits + Hi-FRC | |||
| Contrast Ratio | 1100:1 | Typical | |||
| Brightness | 400 cd/m² | Typical | |||
| Response Time | 10ms | Typical | |||
| Viewing Angle | Horizontal | 178 | Typical 89/89/89/89 (Min.)(CR≥10) | ||
| Vertical | 178 | ||||
| Video Signal Input | VGA and DVI and H-DMI | ||||
| Physical Specifications | |||||
| Dimensions | Width | 773.5mm | |||
| Height | 468.2 mm | ||||
| Depth | 65 mm | ||||
| Electrical Specifications | |||||
| Power Supply | AC220V | Power Adapter Included | |||
| 100-240 VAC, 50-60 Hz | Plug Input | ||||
| Power Consumption | Operating | 38 W | Typical | ||
| Sleep | 3 W | ||||
| Off | 1 W | ||||
| Touch Screen Specifications | |||||
| Touch Technology | Project Capacitive Touch Screen 10 Touch Point | ||||
| Touch Interface | USB (Type B) | ||||
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) | |||
| Driver | Driver Offered | ||||
| Environmental Specifications | |||||
| Condition | Specification | ||||
| Temperature | Operating | -10°C ~+ 50°C | |||
| Storage | -20°C ~ +70°C | ||||
| Humidity | Operating | 20% ~ 80% | |||
| Storage | 10% ~ 90% | ||||
| MTBF | 30000 Hrs at 25°C | ||||
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
32 inch PCAP touch monitor drawing:

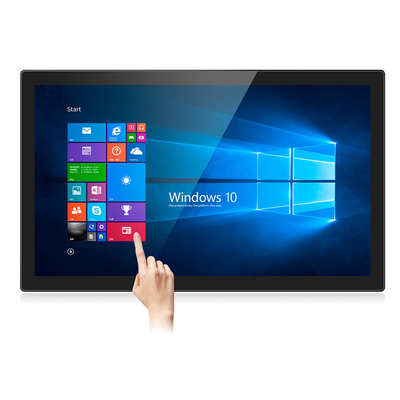

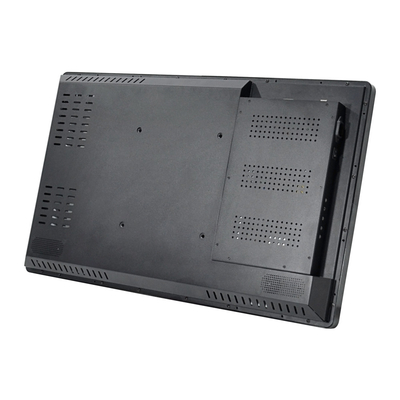

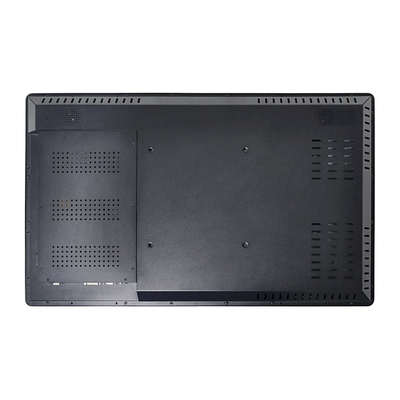

32 inch Capacitive display monitor pictures:
