Product Details:
|
| Product Name: | Touch PC All In One | Touch Type: | PCAP Capacitive Touchscreen |
|---|---|---|---|
| Touch Points: | 10 Points Touch | Aspect Ratio: | 16:9 |
| Resolution: | 1920*1080 | CPU: | Android / I3 / I5 / I7 CPU |
| RAM: | 2GB /4GB /8GB /16GB/ 32GB | Memory: | 32GB /64GB/128GB /256GB/ 512GB |
| Interface: | USB / COM / H-DMI /VGA /RJ45, Etc. | Custom Made: | Touch PC All In One With Camera/ 4G/ Printer, Etc. |
| High Light: | 400 Cd/M2 All In One Computers,CE All In One Computers,ODM Touch Screen AIO Desktop |
||
13.3'' Touch PC All In One Features:
13.3 inch Touch PC All In One Specifications:
| General Information | |
| Model | CCT131-CFK-3855U |
| CPU | J1900 / I3/I5/I7/ Android optional |
| RAM | 2/4/8/16/32GB RAM |
| Memory | 32/64/128/256/512 GB SSD |
| Interface | H-DMI, VGA, USB, COM, RJ45 |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
293.472 × 165.078 (H×V) mm |
| Resolution |
1920(RGB)×1080 (FHD) 166PPI |
| Pixel Pitch(mm) |
0.15285×0.15285 mm [166PPI] |
| Nominal input voltage VDD | 3.3v |
| Viewing angle(v/h) |
89/89/89/89 (Typ.)(CR≥10) |
| Contrast |
800:1 |
| Luminance (cd/m2) | 400 cd/m² (Typ.) |
| Response time | 25 (Typ.)(Tr+Td) ms |
| Support color |
16.7M , 90% NTSC |
| Backlight MTBF(hr) | 30000 |
|
Touchscreen Specification |
|
|
Type |
Cjtouch PCAP Projected Capacitive touch screen |
|
Multi touch |
10 points touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Packing Details
--Anti-static film, bubble bag, Pearl sponge and wooden case
Delivery Details
--1~20 working days after deposit received
Delivery method
--TNT, DHL, airfreight and seafreight are welcome. You are welcome to ask us to delivery for you and contact your own agent.

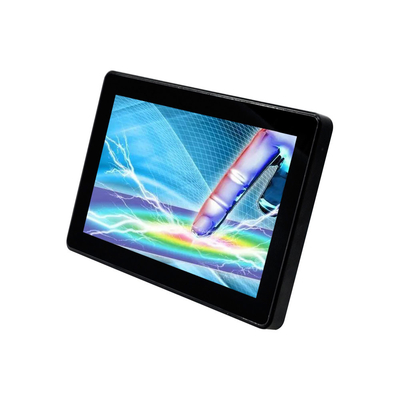

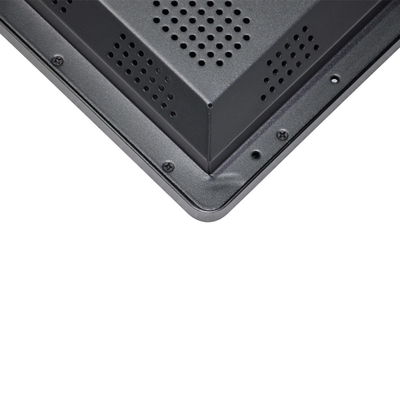

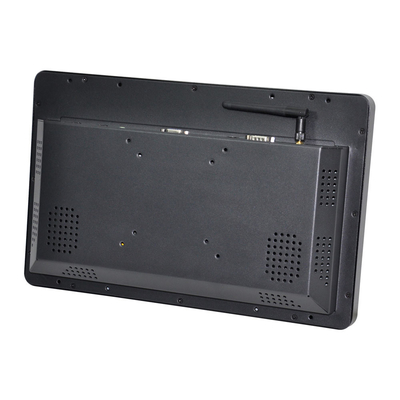

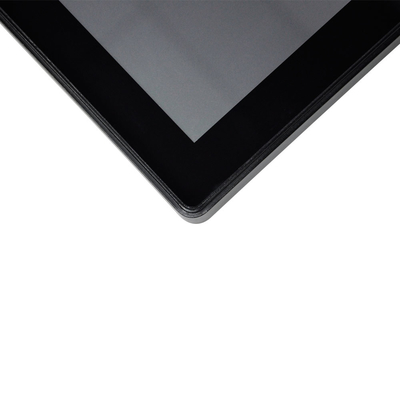

Pictures:
Drawing:
