Product Details:
|
| Product Name: | Aio Touch | Touch Type: | Capacitive Touchscreen |
|---|---|---|---|
| Touch Points: | 10 Touch Points | Aspect Ratio: | 16:10 |
| Resolution: | 1280*800 | CPU: | Android / I3 / I5 / I7 |
| RAM: | 2GB /4GB /8GB /16GB/ 32GB | Memory: | 32GB /64GB/128GB /256GB/ 512GB |
| Interface: | USB / COM / H-DMI /VGA /RJ45, Etc. | Custom Made: | Aio Touch With Camera/ 4G/ Printer, Etc. |
| Highlight: | Vandal Proof AIO Touch PC,Waterproof AIO Touch PC,ODM All In One Touch PC |
||
10.1'' aio touch Features:
10.1inch Aio Touch Specifications:
| General Information | |
| Model | CCT101-CFK-M600SE |
| CPU | Intel(R)Celeron(R)CPU J1900 - I3/I5/I7/ Android optional |
| RAM | 2/4/8/16/32GB RAM |
| Memory | 32/64/128/256/512 GB SSD |
| Interface | H-DMI, VGA, USB, COM, RJ45 |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins7/8/10 or Android |
| LCD Specification | |
| Active area(mm) | 220.8(H)×139.2(V) mm |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Pitch(mm) | 0.0565×0.1695 |
| Nominal input voltage VDD | 3.3v |
| Viewing angle(v/h) | 80/80/80/80 (Typ.)(CR≥10) |
| Contrast | 500:1 (Typ.) (TM) |
| Luminance (cd/m2) | 400 cd/m² (Typ.) |
| Response time | 30 (Typ.)(Tr+Td) ms |
| Support color | 16.7M , 45% NTSC |
| Backlight MTBF(hr) | 30000 |
| Environment | |
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components Of AIO Touch:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Package :
1 or 2 pcs aio touch in one carton, EPE package inside
Shipping :
For small order: By Fedex, TNT, UPS, DHL etc. door to door service
For big order: By air to airport or by sea to seaport

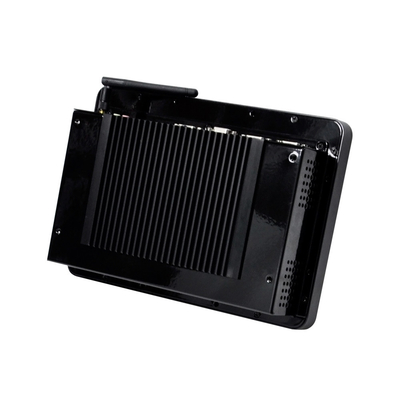

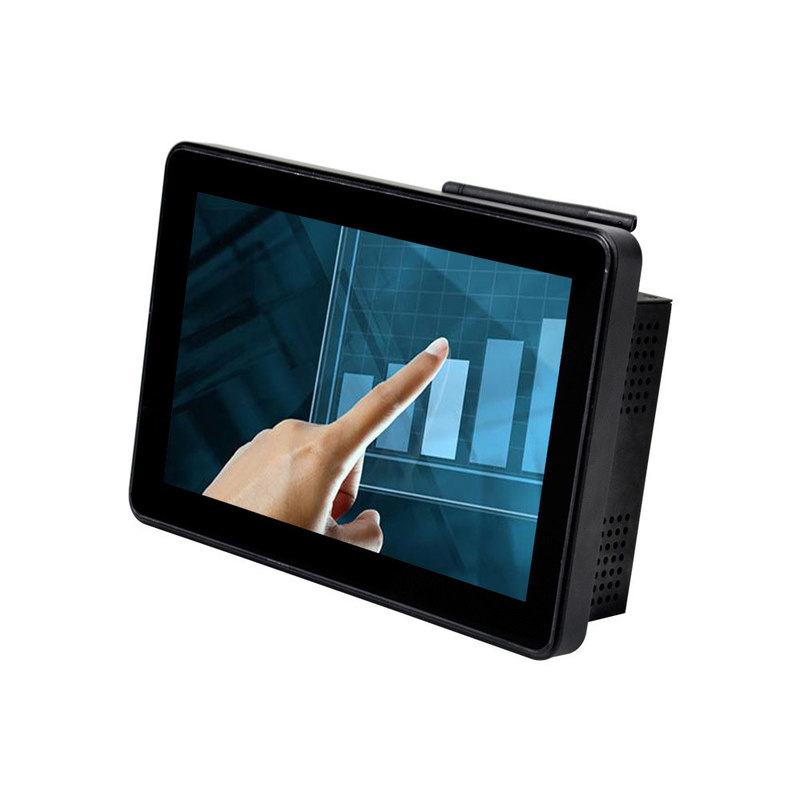

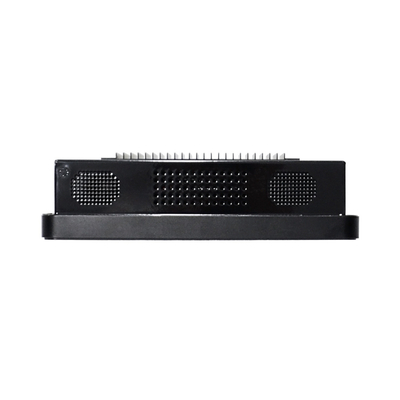

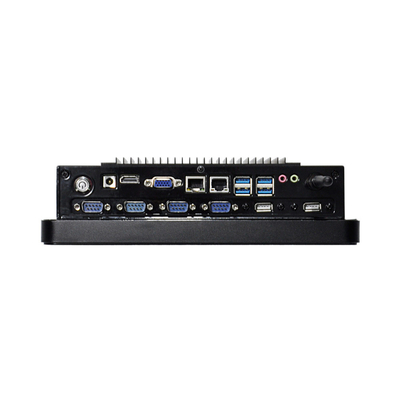

10.1'' AIO Touch Pictures:
10.1'' AIO Touch Drawing:
