Product Details:
|
| Product Series: | AIO Touch PC | Touch Type: | PCAP Touch Screen |
|---|---|---|---|
| LCD Resolution: | 1280*800 | CPU: | Android / I3 / I5 / I7 |
| RAM: | 2GB /4GB /8GB /16GB/ 32GB | Memory: | 32GB /64GB/128GB /256GB/ 512GB |
| Interface: | USB / COM / HDMI /VGA /RJ45, Etc. | Custom Made: | Touch All In One Computer With Camera/ 4G/ Printer, Etc. |
| High Light: | 60 Hz AIO Touch PC,10.1inch AIO Touch PC,OEM All In One PC Touch Screen |
||
10.1'' Touch All In One Computer Features:
10.1inch Touch all in one Computer Specifications:
| General Information | |
| Model | CCT101-CFK02-YSJ1900-JP |
| CPU | Intel(R)Celeron(R)CPU J1900 - I3/I5/I7/ Android optional |
| RAM | 2/4/8/16/32GB RAM |
| Memory | 32/64/128/256/512 GB SSD |
| Interface | H-DMI, VGA, USB, COM, RJ45 |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins7/8/10 or Android |
| LCD Specification | |
| Active area(mm) | 220.8(H)×139.2(V) mm |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Pitch(mm) | 0.0565×0.1695 |
| Nominal input voltage VDD | 3.3v |
| Viewing angle(v/h) | 80/80/80/80 (Typ.)(CR≥10) |
| Contrast | 500:1 (Typ.) (TM) |
| Luminance (cd/m2) | 400 cd/m² (Typ.) |
| Response time | 30 (Typ.)(Tr+Td) ms |
| Support color | 16.7M , 45% NTSC |
| Backlight MTBF(hr) | 30000 |
| Environment | |
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components Of Touch All In One Computer :
Power Cord with Switching Adapter *1 Pcs
Bracket*2 Pcs
FAQ:
Q: what is the delivery time of the sample?
A: 3-7 days depends on the number of samples.
Q: do you have touch all in one computer in stock?
A: some products are available in stock and can be delivered within 7 days.
Q: how long does it take for mass production of touch all in one computer?
A: according to the quantity, about 7-15days.
Q: how to ensure the quality?
A: we have about 14 years of experience in this field. We have a strong team, special design, exquisite production technology and exquisite materials and exquisite workmanship.
Q: Can I customize the logo?
A: Yes, of course. You can send us your logo.
Q: what's your MOQ?
A: the minimum order quantity is 1PCs. Of course, we can accept small trial orders for some products

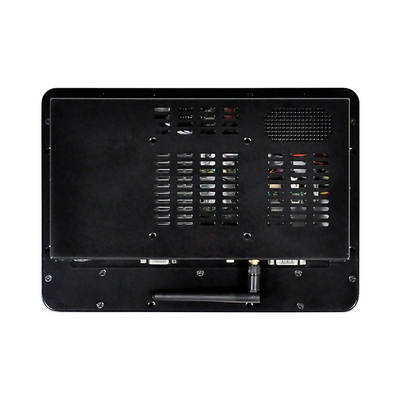

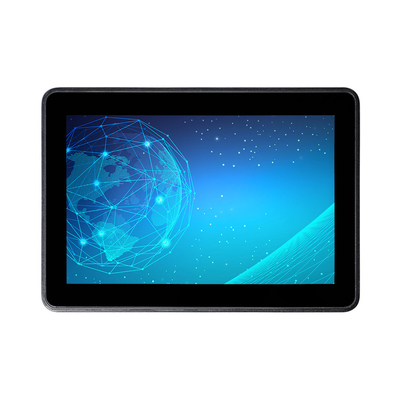

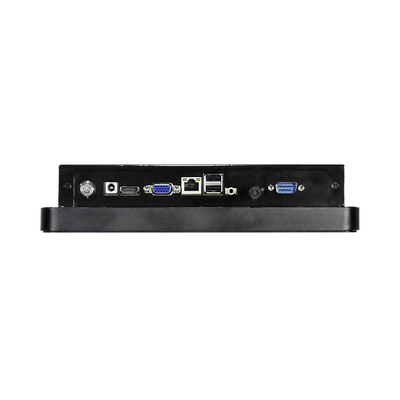

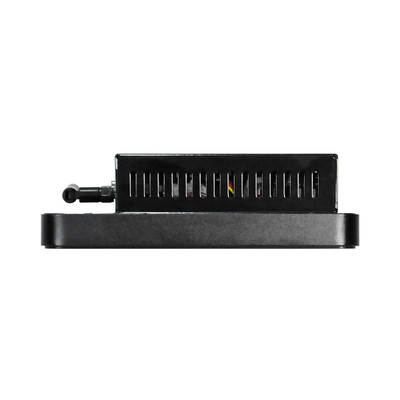

10.1'' Touch All In One Computer Pictures:
10.1'' Touch All In One Computer Drawing:
