Product Details:
|
| Type: | Touchscreen Education Kiosk | CPU: | I3/I5/I7 |
|---|---|---|---|
| System: | Android+Windows | Touch Support: | Max. 20 Points PCAP Touch |
| Brightnes: | 350cdm | Resolution: | 1920*1080 / 2160*3840 |
| Contrast Ratio: | 1000:1 | Power: | ≤200W |
| High Light: | CJTOUCH Education Interactive Display,Education Interactive Display 65Inch |
||

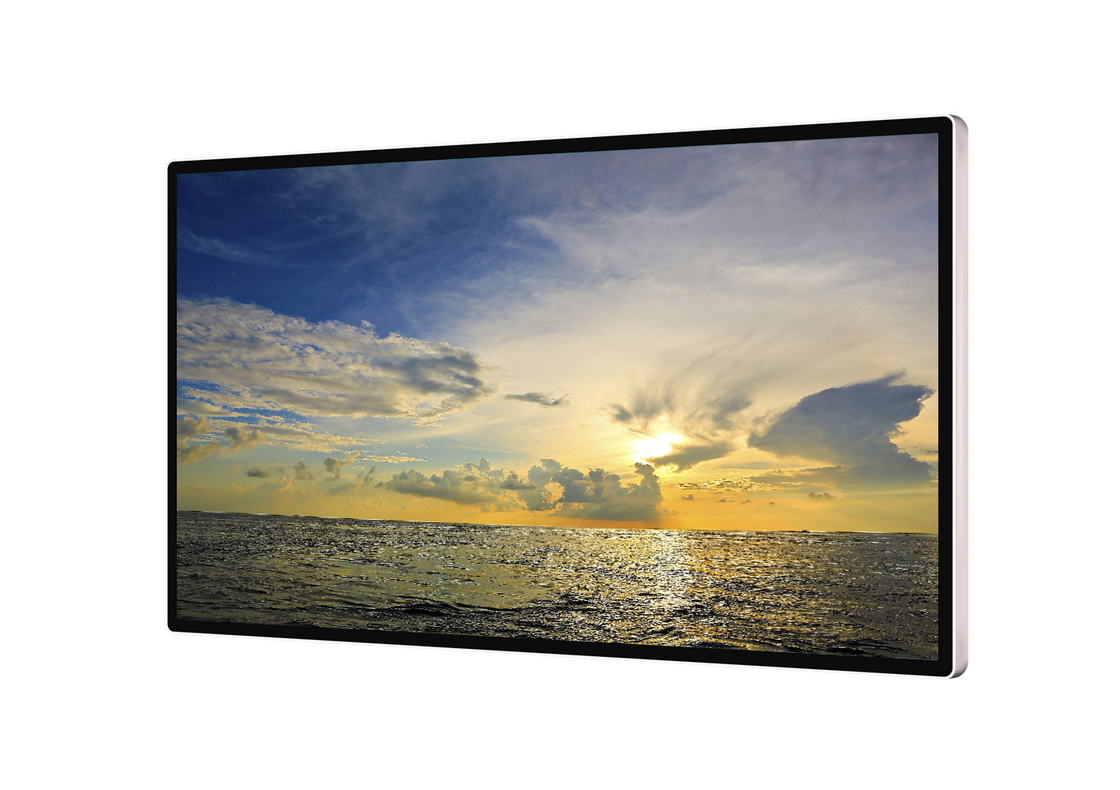

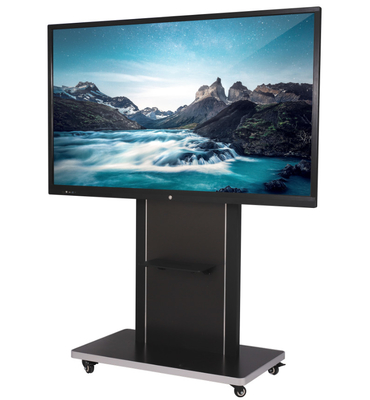

Features Of Touch Screen Teaching Board
The touch screen teaching board is an interactive Andriod machine with built-in LCD/LED and touch screen (PC is optional). We use the most popular capacitive touch technology to realize the interaction between the user and the display.
Connected to a built-in or external PC, it is a large touch PC, which can be controlled and operated by fingers to present advertisements, conference PPT, classroom courses, play movies, etc.
Using Android+Windows system intelligent interconnection. Provide a variety of optional computer configuration combinations, CPU I3/I5/I7, memory 4G/8G/16G, 64GB-1TB solid state hard drive, which can meet the configuration requirements of different customers in different usage scenarios;
Use the whiteboard cross system for intelligent interactive education and remote meeting functions, and also support wireless connection and screen sharing;
High-definition LCD high-definition screen, high-definition display,
Adopt PCAP touch screen, 4096*4096, multi-point support 20-point touch
The use of toughened glass can achieve high durability and destructive resistance, and the waterproof surface structure meets the IP65 standard, which can effectively waterproof, dust and moisture
The metal shell has good heat dissipation performance and long standby time, suitable for indoor and outdoor use. Optional exclusive mobile stand, it is more convenient to use in different occasions. Widely used in education, video conferencing, information kiosks and exhibitions, etc.
Specifications Of Touch Screen Teaching Board
|
Android |
CPU |
Quad-core ARM1.7,1.8GHz |
|
RAM |
2G/4G (can optional) |
|
|
Memory |
8GB/16GB/32GB/64G (can optional) |
|
|
HDMI Interface |
HDMI output * 1 |
|
|
TF card Interface |
TF card * 1,(Expandable to 64GB) |
|
|
USB Interface |
USB*2 (USB Host*1,SUB OTG*1) |
|
|
RJ-45 Interface |
network interface *1 |
|
|
headphone interface |
3.5mm Stereo Headphone Output *1 |
|
|
Windows |
CPU |
Intel Core I3 I5 I7(can optional) |
|
Memory |
standard 4G/8G DDR3(can optional) |
|
|
Storage |
128G/256G/512G SSD MSATA(can optional) |
|
|
OS |
Windows 7/Windows 10(can optional) |
|
|
Network interface*1 |
1* RTL8111E Ethernet chips,support remote wake up |
|
|
VGA interface |
1*VGA DB15 interface |
|
|
HDMI interface |
1*HDMI 1.4 interface |
|
|
USB interface |
2*USB3.0 interface 2*USB2.0 interface |
|
|
Audio interface |
1*LIN-OUT 1*MIC-IN |
|
|
Touch |
Touch technology |
Capacitive induction technology |
|
Multi touch |
Max. Support 20 points touch |
|
|
Writing style |
Use your fingers or other opaque sensing media |
|
|
Durability |
>80 million single touch |
|
|
Response Time |
8ms |
|
|
Touch deviation |
<2mm |
|
|
Touch screen glass |
Fully tempered AG anti-glare glass,Transmittance : >90% |
|
|
Surface hardness |
Mohs 7 |
| Display | LCD Panel | 65"LCD HD screen |
| Resolution | 1920*1080/2160*3840(2K/4K can optional) | |
| Visual area | 1428*803(mm) | |
| Viewing angle | 165/165/150/150(L/R/U/D) | |
| Display mode | Black , IPS | |
| Contrast ratio | 1000:1 | |
| Brightness | 350cdm | |
| Screen scale | 16:09 | |
| Net wort | WiFi | Support WIFI-2.4G (Expandable to BT-4.0) |
| Ethernet | 10M/100M Network port | |
| Bluetooth | Bluetooth 4.0 | |
| Media play | Video format | Support RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4 ect. |
| Audio format | MP3/WMA/AAC etc. | |
| Picture format | Support BMP,JPEG,PNG,GIF ect. | |
| Other | Loudspeaker | 8 ohms 10 watts |
| OSD language | Multilingual OSD operations in English and Chinese | |
| Input voltage | Alternating current:100～240v 50/60HZ | |
| Power | ≤200W | |
| Use environment | Operating stability 0--50℃/relative humidity≤80%/storage humidity -10～+60℃ | |
| Authentication | CE/FCC/RoHS | |
| Accessories | Instruction manual | Standard configuration |
| Power cable | National standard Power cable 1.8 metre | |
| Package size | Carton size | 1540x945x140mm |
Drawing Of Touch Screen Teaching Board
