Product Details:
|
| Type: | Touch Screen Teaching Board | CPU: | Intel Core I3 I5 I7 ( Can Optional ) |
|---|---|---|---|
| Touch Support: | Max. Support 20 Points Touch | Surface Hardness: | Mohs 7 |
| Resolution: | 2K / 4K ( Optional ) | System: | Android & Windows |
| High Light: | 55'' Touch Screen Smart Board For Teaching,IP65 Touch Screen Smart Board For Teaching |
||
Features
Widely used in education / kiosks ect;
Android + Windows system intelligent interconnection;
Use the whiteboard Cross-system for education and meeting;

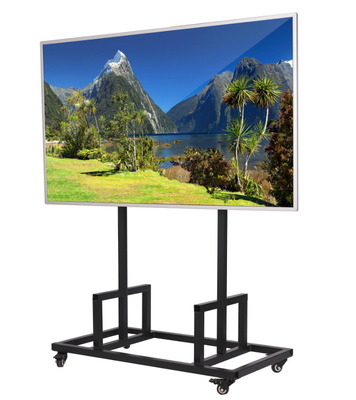

Optional mobile stand , more convenient to use on different occasions;
Provide optional computer configuration I3/I5/I7
LCD HD Screen with high clarity;
Capacitive Touch Screens, Max support 20 points;
With 3mm tempered glass can do high durability and vandal resistance;
Wall-mounted advertising machine, easy to operate;
Long time standby, suitable for indoor and outdoor;
Specifications
|
Android |
CPU |
Quad-core ARM1.7,1.8GHz |
|
RAM |
2G/4G (can optional) |
|
|
Memory |
8GB/16GB/32GB/64G (can optional) |
|
|
HDMI Interface |
HDMI output * 1 |
|
|
TF card Interface |
TF card * 1,(Expandable to 64GB) |
|
|
USB Interface |
USB*2 (USB Host*1,SUB OTG*1) |
|
|
RJ-45 Interface |
network interface *1 |
|
|
headphone interface |
3.5mm Stereo Headphone Output *1 |
|
|
Windows |
CPU |
Intel Core I3 I5 I7(can optional) |
|
Memory |
standard 4G/8G DDR3(can optional) |
|
|
Storage |
128G/256G/512G SSD MSATA(can optional) |
|
|
OS |
Windows 7/Windows 10(can optional) |
|
|
Network interface*1 |
1* RTL8111E Ethernet chips,support remote wake up |
|
|
VGA interface |
1*VGA DB15 interface |
|
|
HDMI interface |
1*HDMI 1.4 interface |
|
|
USB interface |
2*USB3.0 interface 2*USB2.0 interface |
|
|
Audio interface |
1*LIN-OUT 1*MIC-IN |
|
|
Touch |
Touch technology |
Capacitive induction technology |
|
Multi touch |
Max. Support 20 points touch |
|
|
Writing style |
Use your fingers or other opaque sensing media |
|
|
Durability |
>80 million single touch |
|
|
Response Time |
8ms |
|
|
Touch deviation |
<2mm |
|
|
Touch screen glass |
Fully tempered AG anti-glare glass,Transmittance : >90% |
|
|
Surface hardness |
Mohs 7 |
|
Display |
LCD Panel |
55" LCD HD screen |
|
Resolution |
1920*1080/2160*3840(2K/4K can optional) |
|
|
Visual area |
1209*680 mm |
|
|
Viewing angle |
165/165/150/150(L/R/U/D) |
|
|
Display mode |
Black , IPS |
|
|
Contrast ratio |
1000:1 |
|
|
Brightness |
350cdm |
|
|
Screen scale |
16:09 |
|
|
Net wort |
WiFi |
Support WIFI-2.4G (Expandable to BT-4.0) |
|
Ethernet |
10M/100M Network port |
|
|
Bluetooth |
Bluetooth 4.0 |
|
|
Media play |
Video format |
Support RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4 ect. |
|
Audio format |
MP3/WMA/AAC etc. |
|
|
Picture format |
Support BMP,JPEG,PNG,GIF ect. |
|
|
Other |
Loudspeaker |
8 ohms 5 watts |
|
OSD language |
Multilingual OSD operations in English and Chinese |
|
|
Input voltage |
Alternating current:100～240v 50/60HZ |
|
|
Power |
≤180W |
|
|
Use environment |
Operating stability 0--50℃/relative humidity≤80%/storage humidity -10～+60℃ |
|
|
Authentication |
CE/FCC/RoHS |
|
|
Accessories |
Instruction manual |
Standard configuration |
|
Power cable |
National standard Power cable 1.8 metre |
|
|
Package size |
Carton size |
1325x835x140mm |
Drawing
