Product Details:
|
| Type: | Touch Screen Smart AIO Machine | CPU: | Optional I3/I5/I7 |
|---|---|---|---|
| System: | Android+Windows/Linux | Resolution: | 1920*1080 (Optional 2160*3840) |
| Viewing Angle: | 165/165/150/150(L/R/U/D) | Power: | ≤450W |
| High Light: | 1.8GHz Touch Screen Teaching Board,PCAP Touch Screen Teaching Board,1.8GHz PCAP Touch Screen Monitor |
||

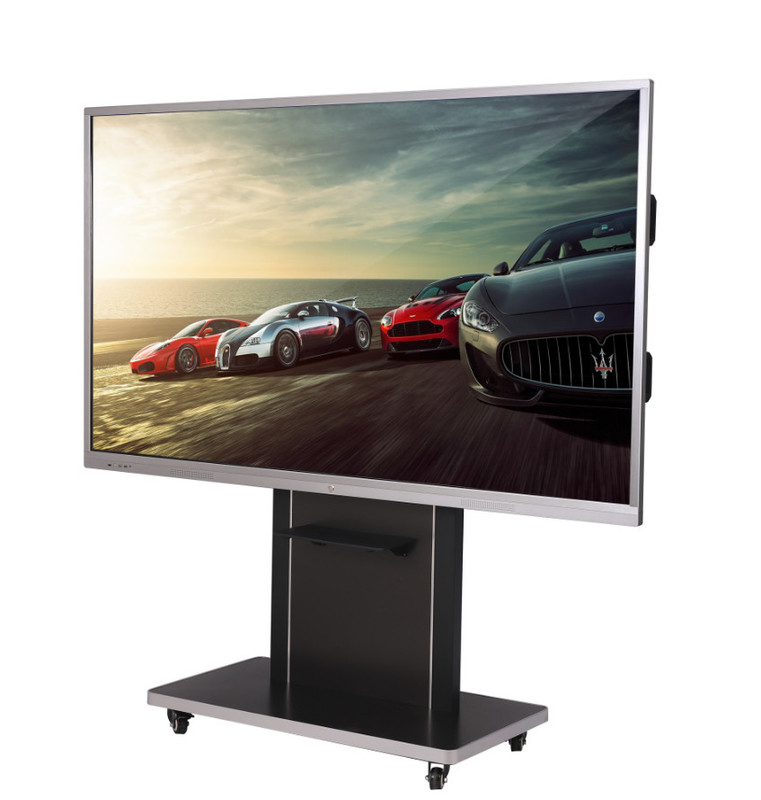

1.8GHz Touch Screen Teaching Board IP65 PCAP Touch Screen Monitor
86 Inch Lcd Touch Screen Smart AIO Machine IP65 High Clarity Intelligent Interconnect PCAP Monitor Waterproof Dustproof
Detail Features Of Touch Screen Teaching Board
Connected to a built-in or external PC, it is a large touch PC that can be controlled and operated by fingers, display advertisements, conference PPT, classroom courses, play movies, etc.
Using Android+Windows system intelligent interconnection. Provide a variety of optional computer configuration combinations to meet the configuration requirements of different customers in different usage scenarios;
Use the whiteboard intelligent interactive system for intelligent interactive education and remote conference functions, while supporting wireless connection and screen sharing;
High-definition LCD high-definition screen, high-definition display, better detail performance, brighter video picture, stronger three-dimensional effect, no ghosting delay.
Adopt PCAP touch screen, 4096*4096, maximum support 20-point touch;
Switch between different signal source channels by physical button operation
Front USB3.0, USB2.0 interface, faster connection speed
Specifications Of Touch Screen Teaching Board
|
Android |
CPU |
Quad-core ARM1.7,1.8GHz |
|
RAM |
2G/4G (can optional) |
|
|
Memory |
8GB/16GB/32GB/64G (can optional) |
|
|
HDMI Interface |
HDMI output * 1 |
|
|
TF card Interface |
TF card * 1,(Expandable to 64GB) |
|
|
USB Interface |
USB*2 (USB Host*1,SUB OTG*1) |
|
|
RJ-45 Interface |
network interface *1 |
|
|
headphone interface |
3.5mm Stereo Headphone Output *1 |
|
|
Windows |
CPU |
Intel Core I3 I5 I7(can optional) |
|
Memory |
standard 4G/8G DDR3(can optional) |
|
|
Storage |
128G/256G/512G SSD MSATA(can optional) |
|
|
OS |
Windows 7/Windows 10(can optional) |
|
|
Network interface*1 |
1* RTL8111E Ethernet chips,support remote wake up |
|
|
VGA interface |
1*VGA DB15 interface |
|
|
HDMI interface |
1*HDMI 1.4 interface |
|
|
USB interface |
2*USB3.0 interface 2*USB2.0 interface |
|
|
Audio interface |
1*LIN-OUT 1*MIC-IN |
|
|
Touch |
Touch technology |
Capacitive induction technology |
|
Multi touch |
Max. Support 20 points touch |
|
|
Writing style |
Use your fingers or other opaque sensing media |
|
|
Durability |
>80 million single touch |
|
|
Response Time |
8ms |
|
|
Touch deviation |
<2mm |
|
|
Touch screen glass |
Fully tempered AG anti-glare glass,Transmittance : >90% |
|
|
Surface hardness |
Mohs 7 |
| Display | LCD Panel | 86" LCD HD screen |
| Resolution | 1920*1080/2160*3840(2K/4K can optional) | |
| Visual area | 1895*1066 mm | |
| Viewing angle | 165/165/150/150(L/R/U/D) | |
| Display mode | Black , IPS | |
| Contrast ratio | 1000:1 | |
| Brightness | 350cdm | |
| Screen scale | 16:09 | |
| Net wort | WiFi | Support WIFI-2.4G (Expandable to BT-4.0) |
| Ethernet | 10M/100M Network port | |
| Bluetooth | Bluetooth 4.0 | |
| Media play | Video format | Support RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4 ect. |
| Audio format | MP3/WMA/AAC etc. | |
| Picture format | Support BMP,JPEG,PNG,GIF ect. | |
| Other | Loudspeaker | 8 ohms 10 watts |
| OSD language | Multilingual OSD operations in English and Chinese | |
| Input voltage | Alternating current:100～240v 50/60HZ | |
| Power | ≤450W | |
| Use environment | Operating stability 0--50℃/relative humidity≤80%/storage humidity -10～+60℃ | |
| Authentication | CE/FCC/RoHS | |
| Accessories | Instruction manual | Standard configuration |
| Power cable | National standard Power cable 1.8 metre | |
| Package size | Carton size | 2100x1270x225mm |
Drawing Of Touch Screen Teaching Board
