Product Details:
|
| Product: | Indstrial Display Monitors Computer | Touch Type: | Capacitive / Resisitive Touch Screen |
|---|---|---|---|
| Resolution: | 1280*1024 | Brightness: | 600nits |
| RAM Optiaonal: | 2- 8GB | Storage: | 32- 512GB |
| High Light: | Industrial Touch Screen Monitor 17Inches,IP66 Industrial Touch Screen Monitor,IP65 industrial touch screen |
||
Waterproof IP65 IP66 PC Indstrial Display Monitors Computer 17 Inches
Features:
Specifications:
| System | |
| CPU | Cele ron J1900 2.0-2.42G CPU |
| Chipset | In tel SOC |
| System Memory | 1-Ch DDR3L, 1333MHz SODIMM MAX 8GB |
| BIOS | AMI UEFI BIOS |
| Storage | 1*Simple-swap 2.5” SATA bay;1*mSATA(full size), support AHCI |
| Display | 17'' LCD |
| Touch | Resistive/Capacitive touch |
| Expansion | 1*Mini PCIe(full size) with PCIe X1+USB,with SIM slot 1*Full size mSATA with USB2.0 |
| Real I/O |
2*RJ45 GbE LAN(with LED); 1*USB3.0 Type A; 3*USB2.0 Type A 1*HD MI; 1*VGA |
| LAN | 2*In tel I211AT PCIe Gig. Ethernet, 10/100/1000Mbps |
| LED | 1*Power LED; 1*HDD LED; 3*CPU Temp.LED(Red is warning, Yellow is high, Green is normal) |
| Audio | Realtek ALC662VD controller, Support 5.1 channel |
| Control SW | 1*Power button, 1*AT/ATX Select dip |
| Power Supply | DC 9~36V, D-Jack w/ M8 connector, Comsuption: 12V/ 2.5A |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
| OS Supply | Wins 7, Wins 8.1, Wins 10, Linux Fedora Ubuntu |
|
Mechanical and Environmental |
|
| Construction |
The whole body: SUS304 Stainless steel Back cover: 3.0mm 5052 Aluminum IO cover: 1.0mm SECC/SGCC |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -40°C~85°C |
| Operating Humidity | 10~90%@40℃, non-condensing |
| Shock | 10g peak acceleration(duration 11ms) |
| Vibration | 1g 5~500Hz |
| Mounting | Desktop VESA(100mm*100mm) mounting |
| Dimension | (W*H*D):429.51mm*364.51mm*51.6mm |
| Net Weight | 5.57KG |
| EMC | CE, FCC Class B |
| LCD | |
| Type | 17 LCD |
| Resolution | 1280 * 1024 |
| Color | 16.19M colors |
| Pixel Pitch(mm) | 0.264*0.264 |
| Brightness(cd/m2) | 600 |
| Viewing Angle | 80 Degree(left), 80 Degree(right), 70 Degree(up), 80 Degree(down) |
| Operating Temperature | -20~70℃ |
| Backlight Lifetime | 70000 Hours |
| Touch | |
| Type | 5 wire resistive touch / projected capacitive touch |
| Resolution | gapless |
| Light Transmittance | 83% / 90% |
| Interface | USB |
| Consumption | +5V @ 200mA / +5V @300mA |
| OS | Wins or Linux |
| Click Lifetime | 35 million times / 3 million times |

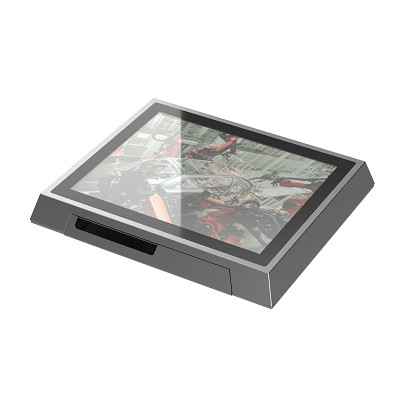

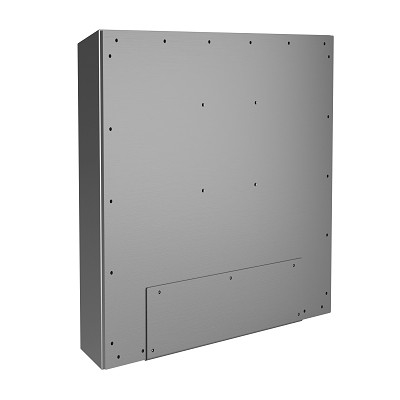

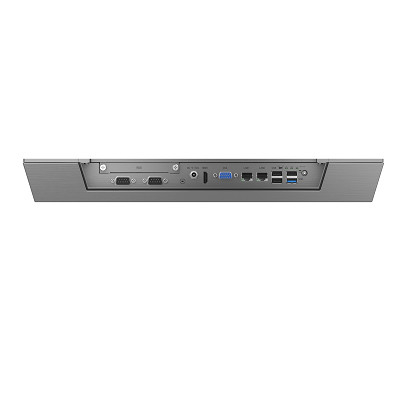

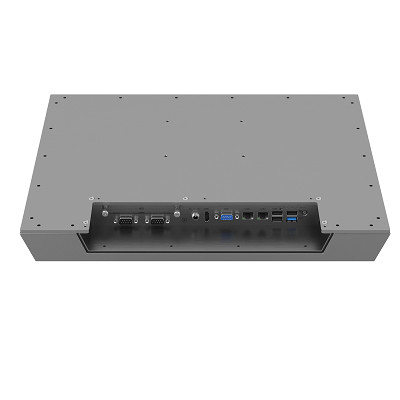

Pictures:
