Product Details:
|
| Product: | Industrial PC Panel | Sreen Size: | 12.1'' |
|---|---|---|---|
| Touch Type: | Capacitive / 5 Wire Resisitive Touch Screen | Resolution: | 1024*768 |
| Brightness: | 500 Cd/m2 | CPU Optional: | 3855U / I3-6100U / I5-6200U / I7-6500U /3865U / Core I3-7100U /I5-7200U / I7-7500U CPU |
| RAM Optiaonal: | 2- 16GB | Storage: | 32- 512GB |
| High Light: | CJTOUCH Industrial Display Monitors,Industrial Display Monitors 12.1Inch,12.1Inch Resistive Touch Screen Monitor |
||

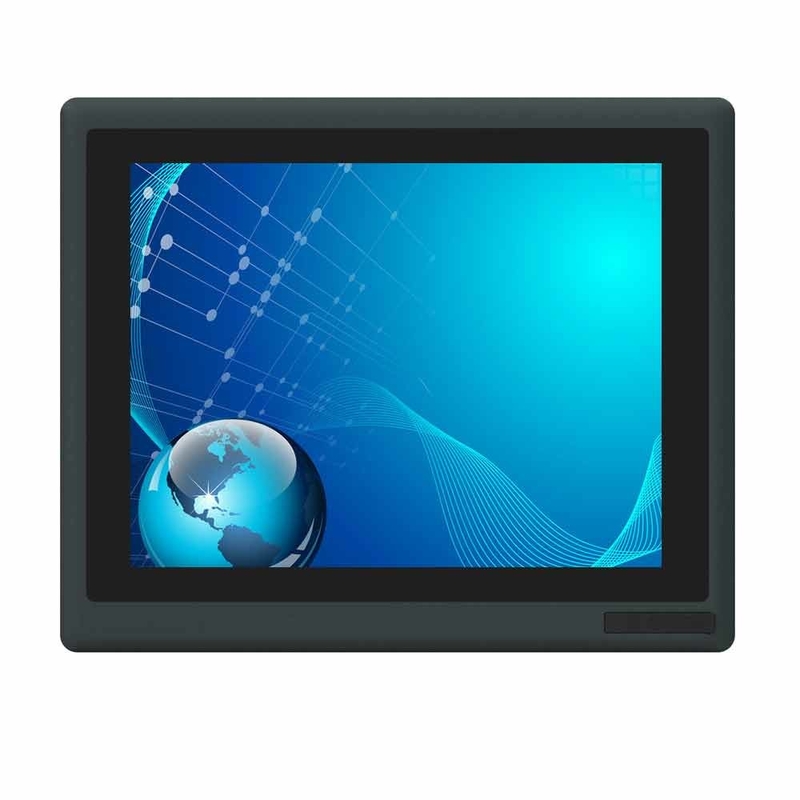

Restistive Touch Industrial Display Montiors PC 12.1Inch Industrial PC Panel
Features:
Specifications:
| System | |
| CPU | Gen.6th Sky lake-U Cele ron 3855U; Core I3-6100U; I5-6200U; I7-6500U CPU Gen. 7th Kaby lake-U Cele ron 3865U; Core I3-7100U; I5-7200U; I7-7500U CPU |
| Chipset | In tel SOC |
| System Memory | 1*DDR4 2133 MHz SODIMM, Max 16GB |
| BIOS | Insyde SPI 64Mbit Flash |
| Storage | 1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*mSATA |
| Display | 12.1'' LED backlight TFT LCD and HDWI(4K resolution) , dual display, HD graphics 510/520 |
| Touch | 5 wire resistive touch optional projected capacitive touch USB control |
| Expansion | 1*Mini PCIe(PCIe and USB signal) |

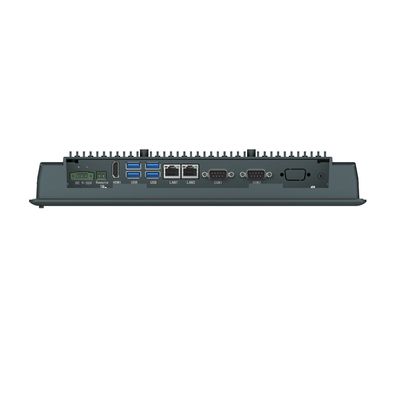

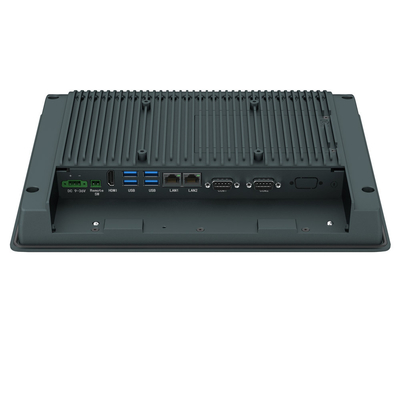

| Real I/O | 2*COM: 2*RS232/422/485, DB9, 1*HD-MI,1*Line out 4*USB3.0 Type A, 2*RJ45 |
| Front I/O | 1*USB2.0 Type A |
| LAN | 2*In tel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps |
| Audio | Real tek ALC662VD controller, Support 5.1 channel, 2*3W Speaker |
| Control SW | 1*Cmos, 1*AT/ATX, Power button, 2–pin connecter with power switch signal,HDD LED |
| Power Supply | DC to DC: 9~36V input, consumption: TDP 12V/2.75A(In tel I5–6200U CPU, 4GB DDR4) |
| OS Supply | Wins 7, Wins 8.1,Wins 10,Linux |
|
Mechanical and Environmental |
|

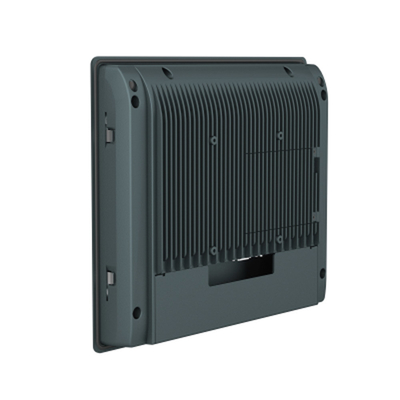

| Construction | Aluminum die–casting front bezel , fin–shaped radiator shell |
| Operating Temperature | 0~50℃ –HDD( –10~55℃ –SSD), with airflow |
| Storage Temperature | -20~60 ℃ |
| Operating Humidity | 10~95%@40, non-condensing |
| Shock | 10g peak acceleration(duration 11ms), in operating with HDD |
| Vibration | 1g 5~500Hz in operating with HDD |
| Mounting | Panel mounting, VESA 100*100 |
| Dimension | (W*H*D):315*259*51mm; mounting cut out(W*H): 303*247mm |
| Net Weight | 2.8kg |
| EMC | CE, FCC Class A |
| LCD | |
| Type | 12.1'' TFT LCD |
| Resolution | 1024*768 |
| Color | 16.2M |
| Pixel Pitch(mm) | 0.240*0.240(mm) |
| Brightness(cd/m2) | 500 |
| Viewing Angle |
80°(left), 80°(right), 70°(up),70°(down) |
| Operating Temperature | -30~70℃ |
| Backlight Lifetime | 50000 Hours |
| Touch | |
| Type | 5 wire resistive touch / Projected capacitive touch |
| Resolution | gapless |
| Light Transmittance | 83% / 90% |
| Interface | USB |
| Consumption | +5V @ 200mA / +5V @ 300mA |
| OS | Wins or Linux |
| Click Lifetime | 35 million times/ 30 million times |
