Product Details:
|
| Type: | PCAP Touch Screen Education Board | CPU: | Optional I3/I5/I7 |
|---|---|---|---|
| System: | Android + Windows | Touch Support: | Max. 20 Points Touch |
| Brightnes: | 350cdm | Resolution: | 2K / 4K |
| Surface Hardness: | Mohs 7 | Power: | ≤120W |
| High Light: | Interactive Touch Screen Display 43 Inch,PCAP Interactive Touch Screen Display,2K interactive displays for education |
||
Features Of Touch Screen Teaching Board
Touch Screen Teaching Board is an interactive Andriod machine, it built-in with LCD/LED and touch screen (and PC for optional). We use the most popular technology capacitive touch to achieve interaction between users and the monitor.
Specifications Of Touch Screen Teaching Board
|
Android |
CPU |
Quad-core ARM1.7,1.8GHz |
|
RAM |
2G/4G (can optional) |
|
|
Memory |
8GB/16GB/32GB/64G (can optional) |
|
|
HDMI Interface |
HDMI output * 1 |
|
|
TF card Interface |
TF card * 1,(Expandable to 64GB) |
|
|
USB Interface |
USB*2 (USB Host*1,SUB OTG*1) |
|
|
RJ-45 Interface |
network interface *1 |
|
|
headphone interface |
3.5mm Stereo Headphone Output *1 |
|
|
Windows |
CPU |
Intel Core I3 I5 I7(can optional) |
|
Memory |
standard 4G/8G DDR3(can optional) |
|
|
Storage |
128G/256G/512G SSD MSATA(can optional) |
|
|
OS |
Windows 7/Windows 10(can optional) |
|
|
Network interface*1 |
1* RTL8111E Ethernet chips,support remote wake up |
|
|
VGA interface |
1*VGA DB15 interface |
|
|
HDMI interface |
1*HDMI 1.4 interface |
|
|
USB interface |
2*USB3.0 interface 2*USB2.0 interface |
|
|
Audio interface |
1*LIN-OUT 1*MIC-IN |
|
|
Touch |
Touch technology |
Capacitive induction technology |
|
Multi touch |
Max. Support 20 points touch |
|
|
Writing style |
Use your fingers or other opaque sensing media |
|
|
Durability |
>80 million single touch |
|
|
Response Time |
8ms |
|
|
Touch deviation |
<2mm |
|
|
Touch screen glass |
Fully tempered AG anti-glare glass,Transmittance : >90% |
|
|
Surface hardness |
Mohs 7 |
| Display | LCD Panel | 43" LCD HD screen |
| Resolution | 1920*1080/2160*3840(2K/4K can optional) | |
| Visual area | 938*528 mm | |
| Viewing angle | 165/165/150/150(L/R/U/D) | |
| Display mode | Black , IPS | |
| Contrast ratio | 1000:1 | |
| Brightness | 350cdm | |
| Screen scale | 16:09 | |
| Net wort | WiFi | Support WIFI-2.4G (Expandable to BT-4.0) |
| Ethernet | 10M/100M Network port | |
| Bluetooth | Bluetooth 4.0 | |
| Media play | Video format | Support RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4 ect. |
| Audio format | MP3/WMA/AAC etc. | |
| Picture format | Support BMP,JPEG,PNG,GIF ect. | |
| Other | Loudspeaker | 8 ohms 5 watts |
| OSD language | Multilingual OSD operations in English and Chinese | |
| Input voltage | Alternating current:100～240v 50/60HZ | |
| Power | ≤120W | |
| Use environment | Operating stability 0--50℃/relative humidity≤80%/storage humidity -10～+60℃ | |
| Authentication | CE/FCC/RoHS | |
| Accessories | Instruction manual | Standard configuration |
| Power cable | National standard Power cable 1.8 metre | |
| Package size | Carton size | 800x525x140mm |

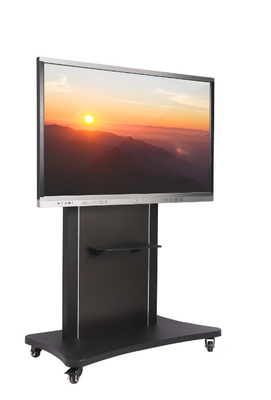

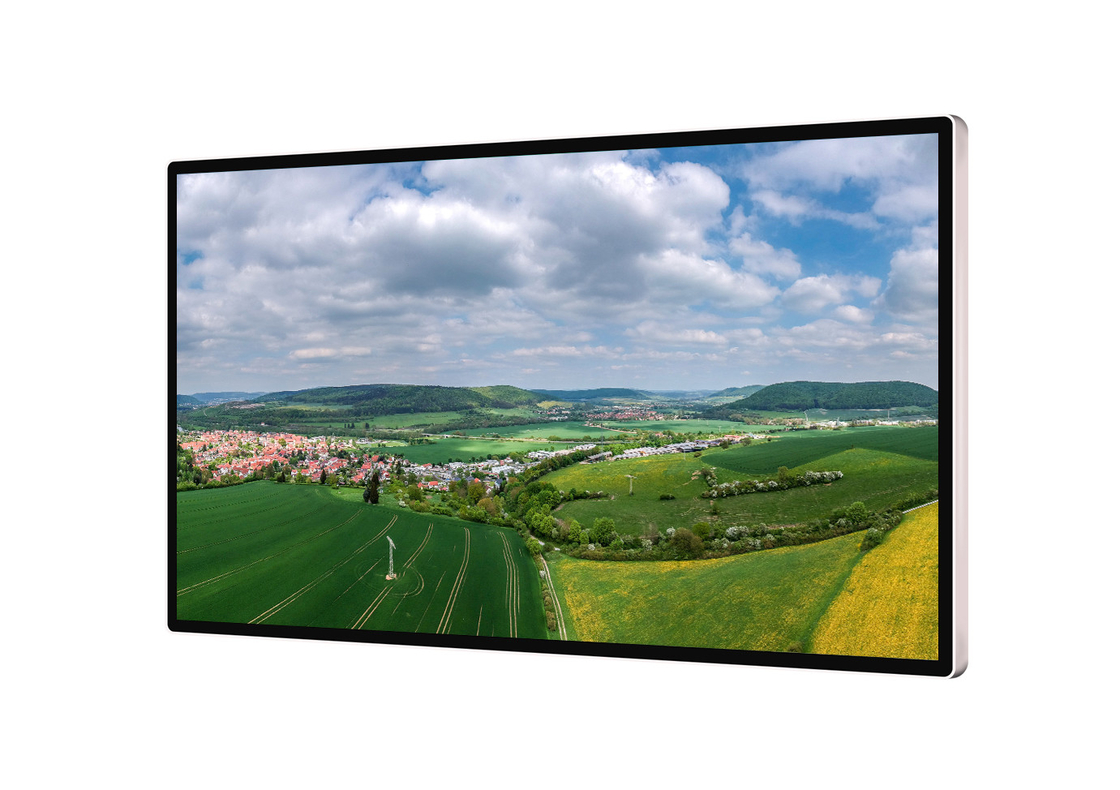

Drawing Of Touch Screen Teaching Board
