Product Details:
|
| Product: | Industrial Fanless Panel Pc | Sreen Size: | 18.5'' |
|---|---|---|---|
| Resolution: | 1366*768 | Brightness: | 300 Cd/m2 |
| RAM Optiaonal: | 2- 16GB | Storage: | 32- 512GB |
| High Light: | 18.5Inch Industrial Touch Screen Panel,Industrial Touch Screen Panel Fanless,Die Casting 18.5 fanless touch panel |
||
18.5 Inch Industrial Fanless Panel Pc Touch Screen Industrial All In One Pc Computer
Features:
Specifications:
| System | |
| CPU | I3-6100U , 3855U, I5-6200U,I7-6500U |
| Chipset | In tel SOC |
| System Memory | 1*DDR4 2133 MHz SODIMM, Max 16GB |
| BIOS | Insyde SPI 64Mbit Flash |
| Storage | 1*2.5' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*M.2 (2242 B-Key) |
| Display | 18.5" |
| Touch | capacitive touch sreen |
| Expansion |
1*Mini PCIe(PCIe&USB signal) 2*COM: 2*RS232/422/485, DB9 |
| Real I/O | 4*USB3.0 Type A 1*HD MI 2*RJ45 |
| Front I/O | 1*USB2.0 Type A |
| LAN | In tel I210AT chip, 10/100/1000 Mbps |
| Control SW | Power button, 2-pin connecter with power switch signal |
| Power Supply | DC to DC: 9~36V input, consumption: TDP 12V/3.72A(In tel I5-6200U CPU, 4GB DDR3L memory) |
| OS Supply | Wins 7, Wins 8.1,Wins 10,Linux |
|
Mechanical and Environmental |
|
| Construction | Aluminum die-casting front bezel and chassis, fin-shaped radiator shell |
| Operating Temperature | 0~50℃ –HDD( –10~55℃ –SSD), with airflow |
| Storage Temperature | -20~60 ℃ |
| Operating Humidity | 10~95%@40, non-condensing |
| Shock | 10g peak acceleration(duration 11ms), in operating with HDD |
| Vibration | 1g 5~500Hz in operating with HDD |
| Mounting | Panel mounting, VESA 100*100 |
| Dimension | (W*H*D): 482.3*304.3*59.1; mounting cut out(W*H): 473.5*295.5mm |
| Net Weight | 6.63kg |
| EMC | CE, FCC Class A |
| LCD | |
| Type | 18.5'' TFT LCD |
| Resolution | 1366*768 |
| Color | 16.2M |
| Pixel Pitch(mm) | 0.300*0.300(mm) |
| Brightness(cd/m2) | 300 |
| Viewing Angle |
85°(left), 85°(right), 80°(up),80°(down) |
| Operating Temperature | -10~50℃ |
| Backlight Lifetime | 50000 Hours |
| Touch | |
| Type | PCAP touch |
| Resolution | gapless |
| Light Transmittance | 90% |
| Interface | USB |
| Consumption | +5V @ 300mA |
| OS | Wins or Linux |
| Click Lifetime | 3 million times |

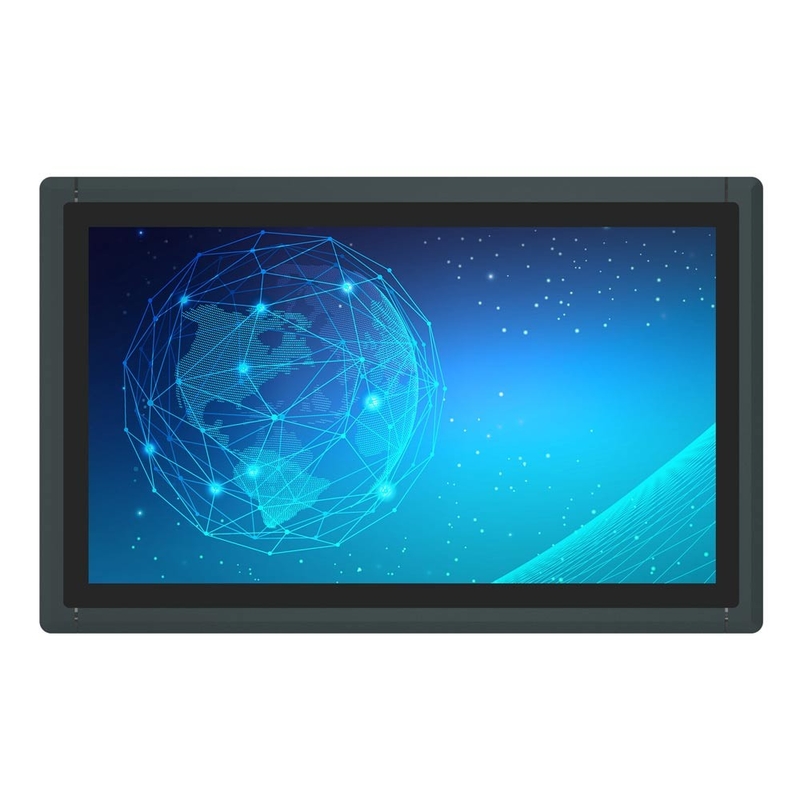

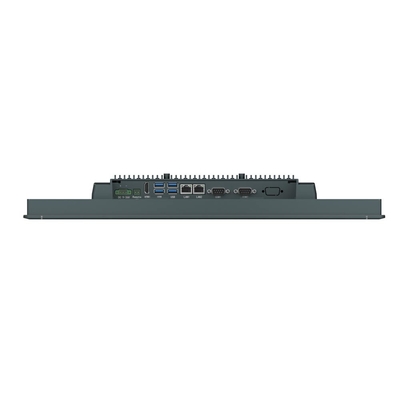

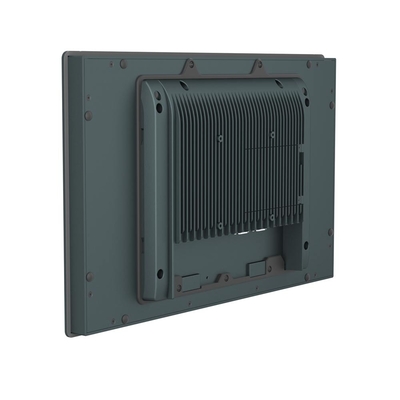

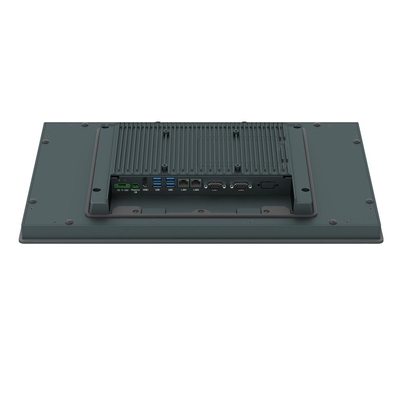

Pictures:
