Product Details:
|
| Product: | Industrial Display Monitors PC | Sreen Size: | 17'' |
|---|---|---|---|
| Touch Type: | Capacitive / 5 Wire Resisitive Touchscreen | Resolution: | 1280*1024 |
| Brightness: | 350nits | CPU Optional: | 3855U; I3-6100U; I5-6200U; I7-6500U ; 3865U; I3-7100U; I5-7200U; I7-7500U |
| High Light: | 19'' Industrial Display Monitors,17'' Industrial Display Monitors,350nits Industrial Pc Panel |
||
10.1''/12.1''/15''/17''/19'' Industrial Panel Pc Industrial Display Monitors
Features:
Specifications:
| System | |
| CPU | 3855U; 3865U; I3 I5 I7 |
| Chipset | In tel SOC |
| System Memory | 1*DDR4 2133 MHz SODIMM, Max 16GB |
| BIOS | Insyde SPI 64Mbit Flash |
| Storage | 1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*mSATA |
| Display | 17.0'' LCD |
| Touch | 5 wire resistive touch optional projected capacitive touch |
| Expansion | 1*Mini PCIe(PCIe and USB signal ) |
| Real I/O |
2*COM: 2*RS232/422/485, DB9,Opt. 2*RS232,DB9,3-wire signal 1*HD MI,1*Line out 4*USB3.0 Type A 2*RJ45 |
| Front I/O | 1*USB2.0 Type A |
| LAN | 2*In tel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps |
| Audio | Realtek ALC662VD controller, Support 5.1 channel, 2*3W Speaker |
| Control SW/LED | 1*Cmos, 1*AT/ATX, Power button, 2–pin connecter with power switch signal,HDD LE |
| Power Supply | DC to DC: 9~36V input, consumption: TDP 12V/2.95A(In tel I5–6200U CPU, 4GB DDR4) |
| OS Supply | Wins 7, Wins 8.1,Wins 10,Linux |
|
Mechanical and Environmental |
|
| Construction | Aluminum die–casting front bezel |
| Operating Temperature | 0~50℃ –HDD( –10~55℃ –SSD), with airflow |
| Storage Temperature | -20~60 ℃ |
| Operating Humidity | 10~95%@40, non-condensing |
| Shock | 10g peak acceleration(duration 11ms), in operating with HDD |
| Vibration | 1g 5~500Hz in operating with HDD |
| Mounting | Panel mounting, VESA 100*100, Rack mounting |
| Dimension | (W*H*D):415.5*360.5*59mm; mounting cut out(W*H): 407*352mm |
| Net Weight | 6.1kg |
| EMC | CE, FCC Class A |
| LCD | |
| Type | 17'' TFT LCD |
| Resolution | 1280 X 1024 |
| Color | 16.2M colors |
| Pixel Pitch(mm) | 0.297*0.297(mm) |
| Brightness(cd/m2) | 350 |
| Viewing Angle |
80°(left), 80°(right), 80°(up),80°(down) |
| Operating Temperature | -20~70℃ |
| Backlight Lifetime | 50000 Hours |
| Touch | |
| Type | 5 wire resistive / PCAP touch |
| Resolution | gapless |
| Light Transmittance | 83% / 90% |
| Interface | USB |
| Consumption | +5V @ 200mA / +5V @ 300mA |
| OS | Wins or Linux |
| Click Lifetime | 35 million times/ 3 million times |
Package :
EPE package inside, carton package outside and 1 or 2 pieces in one carton

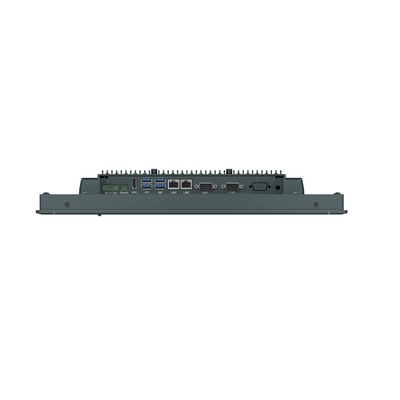

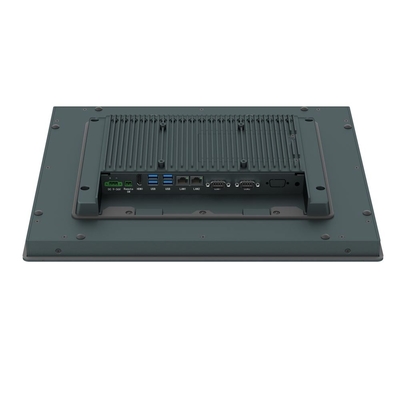

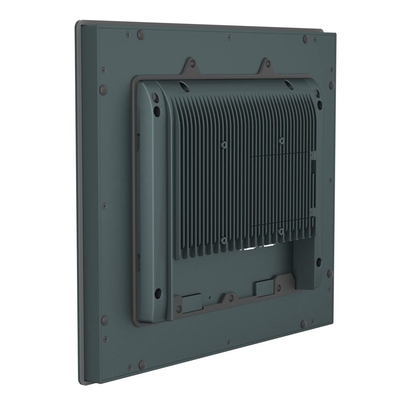

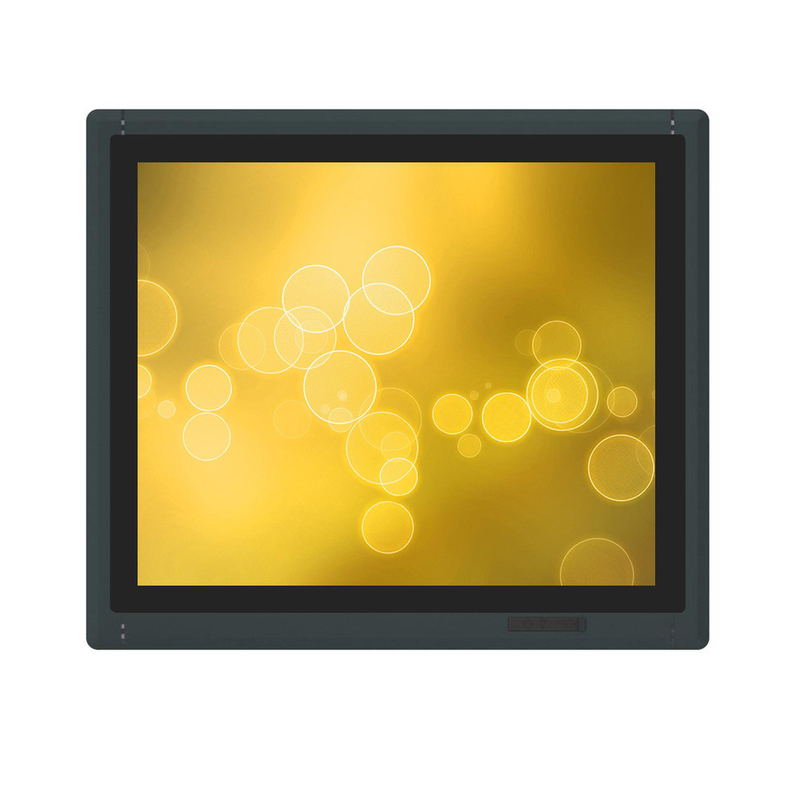

Pictures:
