Product Details:
|
| Product: | Industrial Display Monitor Computer | Sreen Size: | 15'' |
|---|---|---|---|
| Resolution: | 1024*768 | Brightness: | 350 Cd/m2 |
| RAM Optiaonal: | From 2- 16GB | Storage: | From 32- 512GB |
| High Light: | 15'' Industrial Display Monitors OEM,1024x768 Industrial Display Monitors,15'' Resistive Capacitive Touch Screen |
||
Resistive Capacitive Touch Screen OEM Industrial Display Monitor Computer PC 15''
Features:
Specifications:
| System | |
| CPU | 3855U; I3-6100U; I5-6200U; I7-6500U ; 3865U; I3-7100U; I5-7200U; I7-7500U |
| Chipset | In tel SOC |
| System Memory | 1*DDR4 2133 MHz SODIMM, Max 16GB |
| BIOS | Insyde SPI 64Mbit Flash |
| Storage | 1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*mSATA |
| Display | 15.0'' TFT LCD |
| Touch | 5 wire resistive / PCAP touch screen |
| Expansion | 1*Mini PCIe(PCIe&USB signal),Opt.1*32-bit PCI or 1*PCIe X1 |

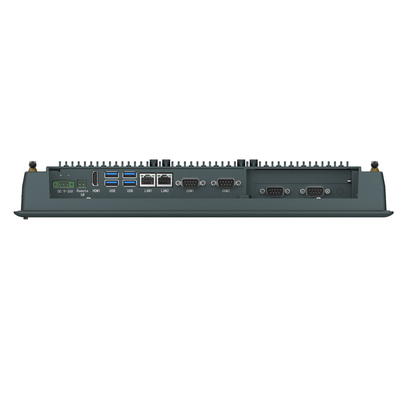

| Real I/O | 4*COM:2*RS232, 2*RS232/422/485, DB9(when using PCI/PCIe,there are only 2*COM) 1*HD MI,1*Line out |
| Front I/O | 1*USB2.0 Type A |
| LAN | 2*In tel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps |
| Audio | Real tek ALC662VD controller, Support 5.1 channel, 2*3W Speaker |
| Control SW | 1*Cmos, 1*AT/ATX, Power button, 2–pin connecter with power switch signal,HDD LED |
| Power Supply | DC to DC: 9~36V input, consumption: TDP 12V/2.95A(In tel I5–6200U CPU, 4GB DDR4) |
| OS Supply | Wins 7, Wins 8.1,Wins 10,Linux |
|
Mechanical and Environmental |
|
| Construction | Aluminum die–casting front bezel , fin–shaped radiator shell |
| Operating Temperature | 0~50℃ –HDD( –10~55℃ –SSD), with airflow |
| Storage Temperature | -20~60 ℃ |
| Operating Humidity | 10~95%@40, non-condensing |
| Shock | 10g peak acceleration(duration 11ms), in operating with HDD |
| Vibration | 1g 5~500Hz in operating with HDD |
| Mounting | Panel mounting, VESA 100*100 and 75*75mm, Rack mounting |
| Dimension | (W*H*D):380*315*56mm; mounting cut out(W*H): 367.3*303.3mm |
| Net Weight | 4.3kg |
| EMC | CE, FCC Class A |
| LCD | |
| Type | 15'' TFT LCD |
| Resolution | 1024 X 768 |
| Color | 16.2M |
| Pixel Pitch(mm) | 0.297*0.297(mm) |
| Brightness(cd/m2) | 350 |
| Viewing Angle |
80°(left), 80°(right), 70°(up),70°(down) |
| Operating Temperature | -20~70℃ |
| Backlight Lifetime | 50000 Hours |
| Touch | |
| Type | resistive / capacitive touch |
| Resolution | gapless |
| Light Transmittance | 83% / 90% |
| Interface | USB |
| Consumption | +5V @ 200mA / +5V @ 300mA |
| OS | Wins or Linux |
| Click Lifetime | 35 million times/ 3 million times |
Pictures:
