Product Details:
|
| Type: | Outdoor Lcd Advertising Display | System: | Andriod / Windows ( Optional ) |
|---|---|---|---|
| Max Resolution: | Optional 2K Or 4K | Brightness: | 2000 Nits |
| Contrast Ratio: | 4000 : 1 | Touch Support: | 1 - 20 Points Touch / No Touch ( Optional ) |
| Interface Type: | USB2.0 Interface×2，VGA Output×1 | Language: | Multi Languages |
| Operating Temperature: | -30°C - +50°C | Standby Power Consumption: | <30W |
| Working Power Consumption: | ≤800W | Protection Level: | IP55 / IP65 |
| High Light: | Floor Standing Outdoor Advertising LCD Display,Outdoor Advertising LCD Display 75 Inch |
||

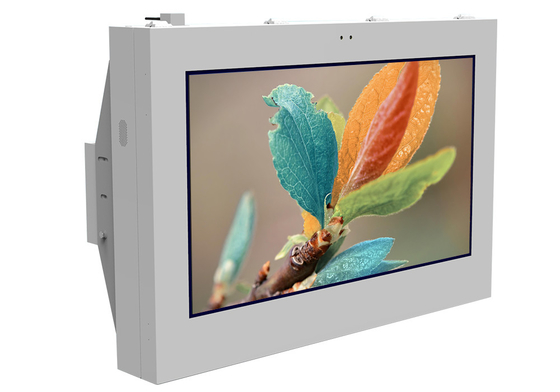

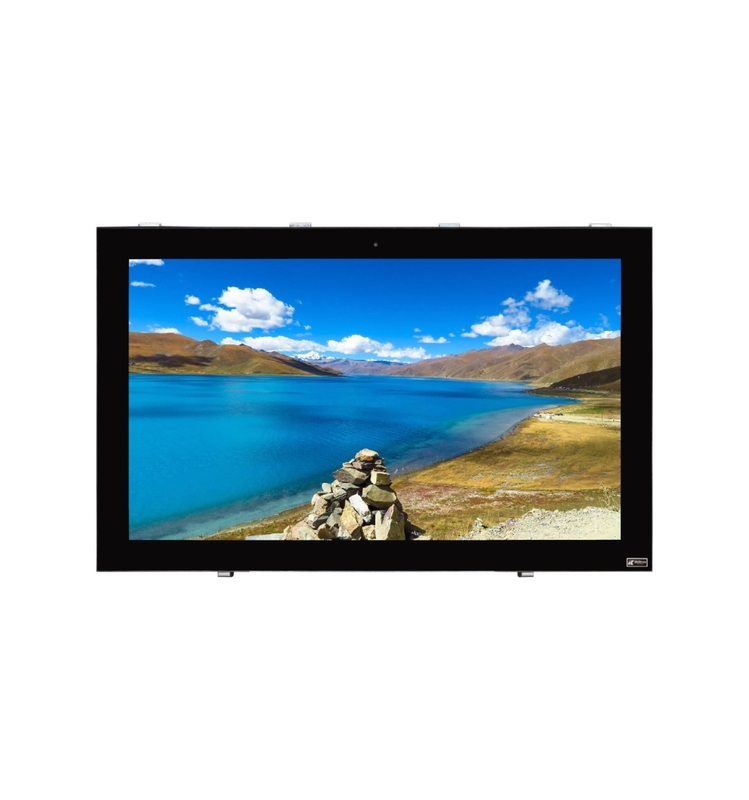

Main Features of Outdoor lcd advertising display
Outstanding function of Outdoor lcd advertising display
Specification of Outdoor lcd advertising display
|
Structure |
||||||
|
Installation method |
Wall Mounted |
|||||
|
Appearance size |
1900*1300*222 mm |
|||||
|
Appearance color |
Silver or optional |
|||||
|
Material & Corrosion protection |
1.5 ~ 2MM galvanized sheet, the surface is sprayed with outdoor powder |
|||||
|
Glass |
6mm tempered glass |
|||||
|
Protection level |
IP55/ IP65 (Optional) |
|||||
|
Machine weight |
≤250KG |
|||||
|
LCD screen |
||||||
|
Panel Size |
75 inch LG |
|||||
|
Panel type |
LCD Panel |
|||||
|
Display ratio |
16:9 |
|||||
|
Display size |
1625.4*930.4 mm |
|||||
|
Viewing angle |
178 |
|||||
|
Response time |
6ms |
|||||
|
Resolution |
3840(RGB)×2160(UHD) |
|||||
|
Contrast ratio |
4000:1 |
|||||
|
Brightness |
2000 nits |
|||||
|
Color |
16.7 M |
|||||
|
Service life |
More than 50000 hours |
|||||
|
Touch(Optional configuration) |
||||||
|
No Touch Screen , 1 - 20 points touch ( optional ) |
||||||
|
Player |
||||||
|
Operation system ( Optional ) |
Android 7.1 |
|||||
|
Main Board |
Android RK3288 |
|||||
|
Memory |
1G |
|||||
|
Flash |
8G( support 32G) |
|||||
|
Main frequency |
1.8GHz |
|||||
|
Network support |
Ethernet,WiFi |
|||||
|
3G/4G module function (optional, default none) |
||||||
|
Bluetooth |
Support onboard Bluetooth function (optional, default none) |
|||||
|
File system |
||||||
|
Languages |
Simplified Chinese, traditional Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, polish, Czech and other language |
|||||
|
Basic interface (Internal interface) |
||||||
|
USB2.0 Interface |
×4 |
VGA output |
×1 |
|||
|
HDMI output (optional) |
×1 |
MicroPhone |
×1 |
|||
|
RTC real time clock |
1 clock battery holder |
AV input |
×4 |
|||
|
Audio output |
Power amplifier output, can directly drive 2*10W/8Ω speakers |
|||||
|
SD card |
1 standard SD card slot, maximum support 32GB |
|||||
|
Working environment |
||||||
|
Temperature control |
Air cooling(air conditioning optional, cost extra) |
|||||
|
Operating temperature |
-30°C - +50°C(air cooling) |
|||||
|
Working humidity |
5% to 90% |
|||||
|
Storage temperature |
-20°C to 60°C |
|||||
|
Storage humidity |
10%～85% |
|||||
|
Power |
||||||
|
Input voltage |
AC220V |
|||||
|
Normal working power consumption |
≤800W |
|||||
|
Standby power consumption |
＜30W |
|||||
|
Certificate |
CE, FCC |
|||||
Drawing of Outdoor lcd advertising display
