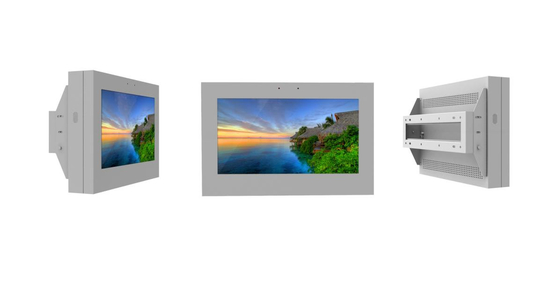

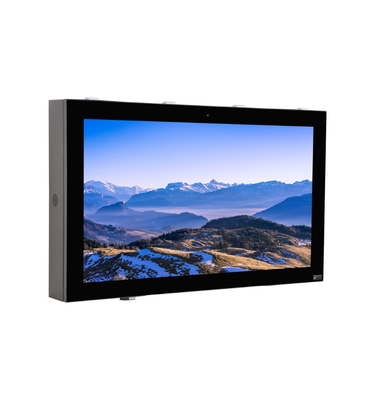

43'' Outdoor LCD Advertising Display , OEM Outdoor LCD Digital Signage 6ms Response

Structure

Installation method

Wall Mounted

Appearance size

Horizontal: 1180*830*200 mm

Appearance color

Silver or optional

Material & Corrosion protection

1.5~2MM galvanized sheet, the surface is sprayed with outdoor powder

Glass

5mm tempered glass

Protection level

IP55/ IP65 (Optional)

Machine weight

≤130KG

LCD screen

Panel Size

43 inch LG

Panel type

LCD Panel

Display ratio

16:9

Display size

941*529 mm

Viewing angle

178

Response time

6ms

Resolution

1920(RGB)×1080(UHD)

Contrast ratio

1200:1

Brightness

2000 nits

Color

16.7 M

Service life

More than 50000 hours

Player

Operation system(optional)

Android 5.1

Main Board

Android RK3288

Memory

2G

Flash

8G(support 32G)

Main frequency

1.8GHz

Network support

Ethernet,WiFi

3G/4G module function (optional, default none)

Bluetooth

Support onboard Bluetooth function (optional, default none)

File system

Languages

Simplified Chinese, traditional Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, polish, Czech and other language

Basic interface (Internal interface)

USB2.0 Interface

×4

VGA output

×1

HDMI output (optional)

×1

MicroPhone

×1

RTC real time clock

1 clock battery holder

AV input

×4

Audio output

Power amplifier output, can directly drive 2*10W/8Ω speakers

SD card

1 standard SD card slot, maximum support 32GB

Working environment

Temperature control

Air cooling(air conditioning optional, cost extra)

Operating temperature

-30°C - +50°C(air cooling)

Working humidity

5% to 90%

Storage temperature

-20°C to 60°C

Storage humidity

10%～85%

Power

Input voltage

AC220V

Normal working power consumption

≤300W

Standby power consumption

＜30W

Certificate

CE, FCC
