Product Details:
|
| Type: | Outdoor Lcd Advertising Display | Mode Name: | IK-550S-F5N-2000 |
|---|---|---|---|

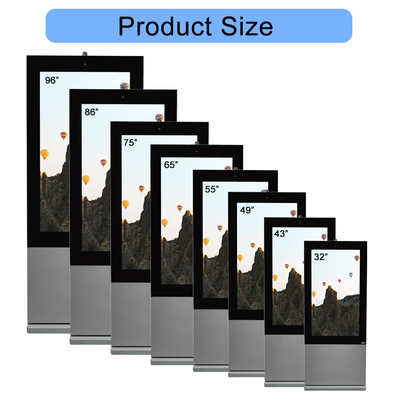

| Touch Support: | No Touch / 10 Points / 20 Points | Size: | 32/43/49/55/65/75/86/96 Inch |
| Color: | Grey | Interface Type: | USB2.0 Interface×2，VGA Output×1 |
| Optional Interface Type: | HDMI Output ×1，MicroPhone×1，1 Clock Battery Holder，AV Input，Audio Output，Power Amplifier Output | Voltage: | 100～240V 50/60HZ |
| Normal Working Power Consumption: | ≤400W | Standby Power Consumption: | <30W |
| High Light: | Dustproof Outdoor LCD Advertising Screen,Outdoor LCD Advertising Screen 55 Inch |
||
Main Features of 55 Inch Outdoor Lcd Advertising Display
2000 nits high-brightness
2K/4K high-definition
Intelligent temperature control system
High-tightness water-proof and drut-proof
Optional IP55/65 protection level
Main application of 55 inch outdoor lcd advertising display
Parameter of 55 Inch Outdoor Lcd Advertising Display
| Structure | ||||||
| Installation method | Floor standing | |||||
| Appearance size | 1975*825*120 mm | |||||
| Appearance color | Silver or optional | |||||
| Material & Corrosion protection | 1.5~2MM galvanized sheet, the surface is sprayed with outdoor powder | |||||
| Glass | 5mm tempered glass | |||||
| Protection level | IP55/ IP65 (Optional) | |||||
| Machine weight | ≤130KG | |||||
| LCD screen | ||||||
| Panel Size | 55 inch LG | |||||
| Panel type | LCD Panel | |||||
| Display ratio | 16:9 | |||||
| Display size | 1210*681 mm | |||||
| Viewing angle | 178 | |||||
| Response time | 6ms | |||||
| Resolution | 1920(RGB)×1080(UHD) | |||||
| Contrast ratio | 1200:1 | |||||
| Brightness | 2000 nits | |||||
| Color | 16.7 M | |||||
| Service life | More than 50000 hours | |||||
| Touch(Optional configuration) | ||||||
| No Touch Screen | ||||||
| Player | ||||||
| Operation system(optional) | Android 7.1 | |||||
| Main Board | Android RK3288 | |||||
| Memory | 2G | |||||
| Flash | 8G( support 32G) | |||||
| Main frequency | 1.8GHz | |||||
| Network support | Ethernet,WiFi | |||||
| 3G/4G module function (optional, default none) | ||||||
| Bluetooth | Support onboard Bluetooth function (optional, default none) | |||||
| File system | ||||||
| Languages |
Simplified Chinese, traditional Chinese, |
|||||
| Basic interface (Internal interface) | ||||||
| USB2.0 Interface | ×2 | VGA output | ×1 | |||
| HDMI output (optional) | ×1 | MicroPhone | ×1 | |||
| RTC real time clock | 1 clock battery holder | AV input | ×4 | |||
| Audio output | Power amplifier output, can directly drive 2*10W/8Ω speakers | |||||
| SD card | 1 standard SD card slot, maximum support 32GB | |||||
| Working environment | ||||||
| Temperature control | Air cooling(air conditioning optional, cost extra) | |||||
| Operating temperature | -30°C - +50°C(air cooling) | |||||
| Working humidity | 5% to 90% | |||||
| Storage temperature | -20°C to 60°C | |||||
| Storage humidity | 10%～85% | |||||
| Power | ||||||
| Input voltage | AC220V | |||||
| Normal working power consumption | ≤400W | |||||
| Standby power consumption | ＜30W | |||||
| Certificate | ||||||
| Certificate | CE, FCC | |||||
Drawing of 55 Inch Outdoor Lcd Advertising Display
Packaging of 55 Inch Outdoor Lcd Advertising Display
