Product Details:
|
| Type: | Outdoor Lcd Advertising Monitor | Max Resolution: | 1920(RGB)×1080(UHD) , Optional 4K |
|---|---|---|---|
| Contrast Ratio: | 1200 : 1 | Brightness: | Max Support 2000 Nits |
| Viewing Angle: | 178°(H) / 178°(V) | Touch Support: | Optional |
| Response Time: | 6ms | Working Power Consumption: | ≤300W |
| High Light: | Outdoor Advertising Kiosk 55 Inch,Ultra Narrow Outdoor Advertising Kiosk |
||

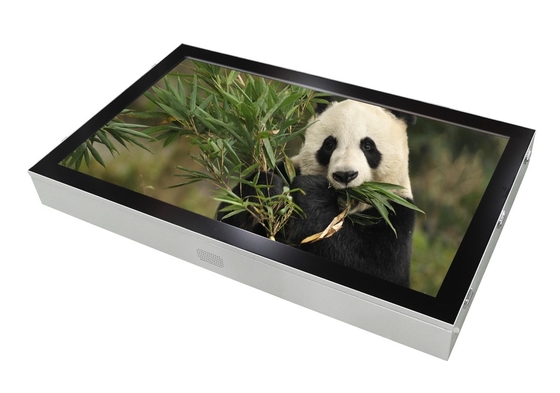

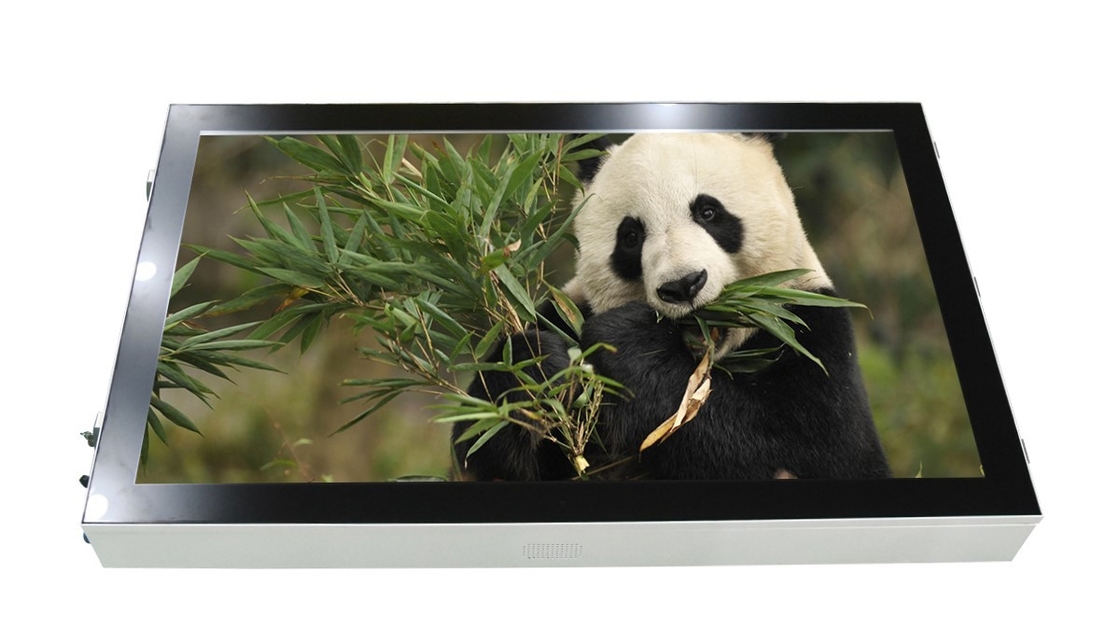

Main Features of 55 inch outdoor lcd advertising kiosk
It adopts industrial-grade high-reliability modular design, which can be professionally designed according to customer needs. The galvanized steel shell is waterproof, sun-proof, anti-corrosion, and explosion-proof, and reaches IP55 standards. More environmentally friendly, high reliability, good stability, especially suitable for working in harsh environments;
Using industrial-grade 16.7M color ultra-high-definition LCD screen, high resolution, high contrast, high brightness, better detail performance, brighter video images, stronger stereo perception, and no ghosting delay.
Built-in intelligent temperature control system, dual-channel air-cooling system, can quickly and effectively control the working temperature of the equipment, but also work to reduce noise.
Built-in intelligent protection system, leakage and overload protection, over-voltage protection, lightning protection device, over-temperature protection, etc., making it safer to use.
The built-in network control advertising system can control multiple devices placed in different places to play designated content at the same time, and can monitor the current working conditions of multiple devices and the content played on the display in real time, and can customize a variety of display effect templates;
Application of 55 inch out lcd advertising kiosk
Shopping mall, Walking street , Retails , Restaurants
Toll station, Bank , Bus stop sign , Airports, Parking Lot , Train stations
etc.
Specification of 55 inch outdoor lcd advertising kiosk
|
Structure |
||||||
|
Installation method |
Wall Mounted |
|||||
|
Appearance size |
Horizontal:1420*980*180 mm |
|||||
|
Appearance color |
Silver or optional |
|||||
|
Material & Corrosion protection |
1.5~2MM galvanized sheet, the surface is sprayed with outdoor powder |
|||||
|
Glass |
5mm tempered glass |
|||||
|
Protection level |
IP55/ IP65 (Optional) |
|||||
|
Machine weight |
≤110KG |
|||||
|
LCD screen |
||||||
|
Panel Size |
55 inch LG |
|||||
|
Panel type |
LCD Panel |
|||||
|
Display ratio |
16:9 |
|||||
|
Display size |
1209*680 mm |
|||||
|
Viewing angle |
178 |
|||||
|
Response time |
6ms |
|||||
|
Resolution |
1920(RGB)×1080(UHD) |
|||||
|
Contrast ratio |
1200:1 |
|||||
|
Brightness |
2000 nits |
|||||
|
Color |
16.7 M |
|||||
|
Service life |
More than 50000 hours |
|||||
|
Touch (Optional configuration) |
||||||
|
Player |
||||||
|
Operation system (optional) |
Android 5.1 |
|||||
|
Main Board |
Android RK3288 |
|||||
|
Memory |
2G |
|||||
|
Flash |
8G (support 32G) |
|||||
|
Main frequency |
1.8GHz |
|||||
|
Network support |
Ethernet,WiFi |
|||||
|
3G/4G module function (optional, default none) |
||||||
|
Bluetooth |
Support onboard Bluetooth function (optional, default none) |
|||||
|
File system |
||||||
|
Operating system |
Windows I5 and above / Android 5.1 and above |
|||||
|
Languages |
Simplified Chinese, traditional Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, polish, Czech and other language |
|||||
|
Basic interface (Internal interface) |
||||||
|
USB2.0 Interface |
×4 |
VGA output |
×1 |
|||
|
HDMI output (optional) |
×1 |
MicroPhone |
×1 |
|||
|
RTC real time clock |
1 clock battery holder |
AV input |
×4 |
|||
|
Audio output |
Power amplifier output, can directly drive 2*10W/8Ω speakers |
|||||
|
SD card |
1 standard SD card slot, maximum support 32GB |
|||||
|
Working environment |
||||||
|
Temperature control |
Air cooling (air conditioning optional, cost extra) |
|||||
|
Operating temperature |
-30°C - +50°C(air cooling) |
|||||
|
Working humidity |
5% to 90% |
|||||
|
Storage temperature |
-20°C to 60°C |
|||||
|
Storage humidity |
10%～85% |
|||||
|
Power |
||||||
|
Input voltage |
AC220V |
|||||
|
Normal working power consumption |
≤400W |
|||||
|
Standby power consumption |
＜30W |
|||||
|
Certificate |
CE, FCC |
|||||

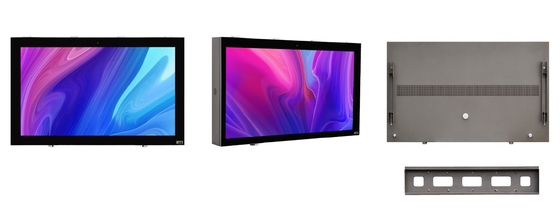

Drawing of 55 inch outdoor lcd advertising kiosk
