Product Details:
|
| Product Name: | PCAP Touch Foil | PCAP Touch Foil: | 20 Points (can Be Customized) |
|---|---|---|---|
| Driver Type: | Free Driver | Calibration Mode: | Software Calibration |
| Touch Deviation:: | Less Than 0.5mm | Touch Support: | Click, Drag, Zoom, Rotate |
| High Light: | 50 Inch PCAP Touch Foil,Transparent PCAP Touch Foil,20 Points Transparent Touch Screen Film |
||
Standard Size of Interactive Touch Foil:
15 inch to 84 inch (4: 3 and 16: 9 ratio). All standard sizes are being shipped to dealers worldwide within
one week (when in stock). Each touch foil comes with USB connector with cable Or RS232 Cable, driver
software, installation video's and user guide.
Types of Interactive Touch Foil
| Touch foil type for paste | Tail version | Touch controller | Foil ratio | Touch points |
| Water-adhesive (removable) | Base or bottom | USB interface | 16:9 (17”-120”) | 2,4,10,20,40 points |
| Adhesive (permernent) | Side or short | USB interface | 4:3 (40”-120”) |
Advantages of Interactive Touch Foil
1. Super-thin,and transparent appearance
2. High definition, Stable touch
3. Well-positioned ,and support multi touch points
4. Through the glass or other objects to touch just like gesture
5. The size can be customized
6. Low power consumption, the maximum power consumption is only 0.5w Flexible, could be applied to curve surface touch screen
7. The film sensor could be laminated on any smooth non-metallic flat
8. Various size from 15" to 84", lowest cost customization.
9. Interactive touch foil application reference.
Specifications of Interactive Touch Foils:
| Induction method | The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix |
| Touch size | 15"~84" (can be customized) |
| Touch accuracy | No drift, the deviation is about 1~3mm |
| Calibration way | software calibration |
| Induction thickness (penetration) | Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive, can penetrate non-metallic materials about the thickness of 20 mm (middle to allow air layer), the induction can even penetrate glass thickness aboutof 25mm |
| Scanning frequency | 60Hz~130hz |
| Output way | USB 2.0 (HID public interface to USB Mini B interface) |
| Compatibility system | WIN7 /WIN8 /Linux (ubantu 12.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel veersion>A20->3.3.0,RK3188->3.0.36) etc. |
| Temperature range | -20°C~60°C |
| Humidity range | 0% RH to 95% RH (without condensation neighborhood) |
| Transmittance | >93% |
| Power consumption | Max 0.5W |
| Product Certification | CE,FCC,ROHS |
Parameter comparison
By contrast we found that more than 30 inches touch market, the metal mesh film capacitors with all other similar products on the technical parameters of the method compared to no advantage.
| Touch technology | Accuracy | Size | Anti-injury | Price | Installation |
| Resistive | General | Small and medium size | Surface scratches easily | Cheap | Design with requirement |
| Capacitive | Accurate | 32 inches or less | No damage | Expensive | |
| Nano-Films | Accurate | Professional Large size | No damage | Cheap | Easy Installation |

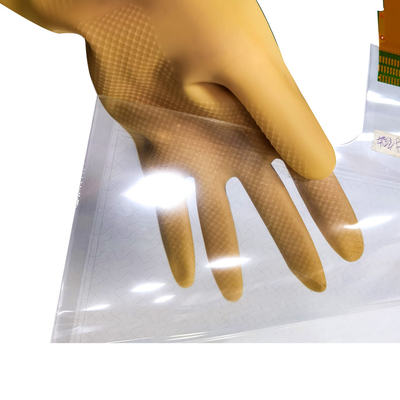

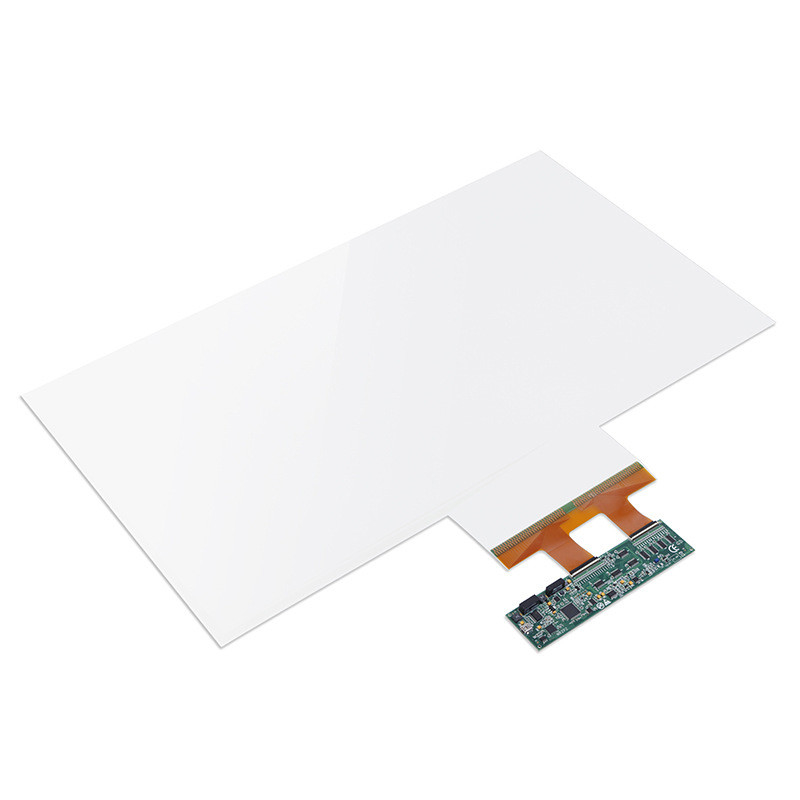

Detail Images
Drawings
Applications of Interactive Touch Foil
Suitable for Store window displays,
Indoor / outdoor kiosks,Exhibitions,
Visitor attractions,
Museums Touch tables,
Training,meeting rooms,etc.
