Product Details:
|
| Product Name: | TFT LCD Panel | Display Size: | 8.0 Inch |
|---|---|---|---|
| Backlight: | WLED | Pixel Configuration: | R.G.B. Stripe |
| Pixel Pitch(mm): | 0.158(H) ×0.158(V) | Display Mode: | TM With Normally White |
| Matching Connection Type: | FH12A-40S-0.5SH | Colors: | 262K/16.7M |
| High Light: | 40 Pins TFT LCD Panel,TFT LCD Panel A Si |
||
TFT-LCD display Features
♦A-Si TFT-LCD display panel
♦An operating temperature range of -20 ~ 70°C
♦Supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H)
♦Whose pixels are arranged in RGB Vertical Stripe
♦Active area of 162.048(W)×121.536(H) mm, outline size of 183(W)×141(H)×3.7(D) mm
♦Viewing area size of 164.65(W)×124.14(H) mm,
♦With surface treament of Clea
♦Connected by 40 pins FPC
♦It's typical vertical frame rate (Fv) is 60Hz
♦Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
♦Palette of 262K/16.7M colors
TFT LCD panel Specifications
| Panel Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA, 160PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 162.048(W)×121.536(H) mm |
| Bezel Opening | 164.65(W)×124.14(H) mm |
| Outline Size | 183(W)×141(H) ×3.7(D) mm |
| Surface | Clear |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 20 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 50% NTSC |
| Lamp Type | 3S9P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| Input Voltage | 3.3/11.5/20.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
Details

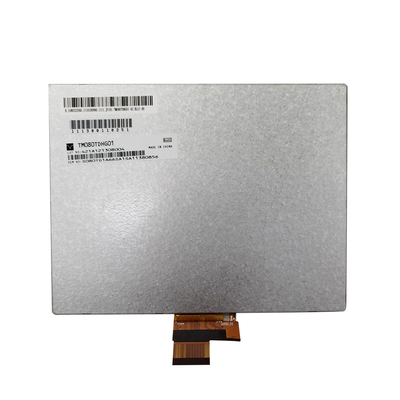

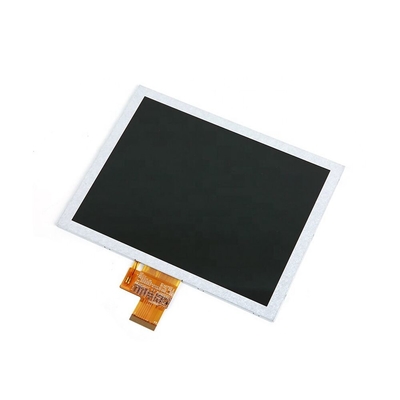

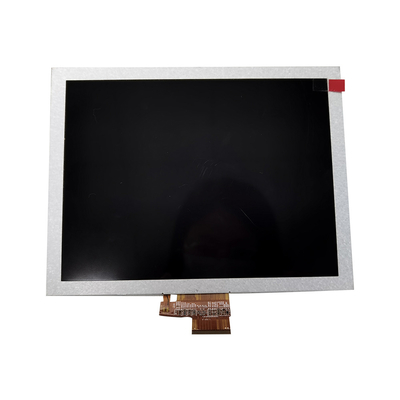

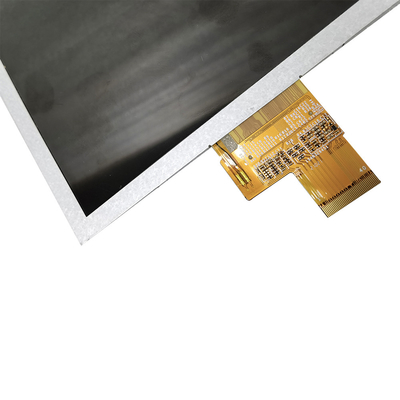

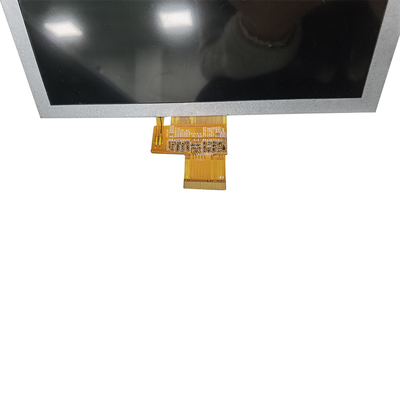

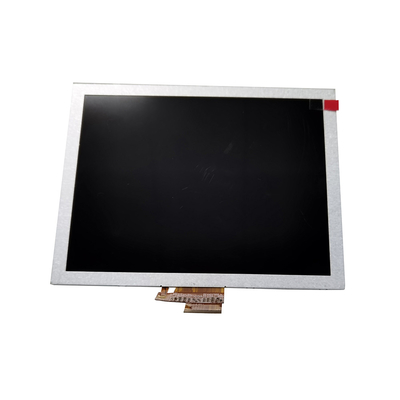

TFT-LCD display Pictures
