Product Details:
|
| Series: | Open Frame | Luminance(cd/m2): | 400 Cd/m² |
|---|---|---|---|
| Response Time(Rising): | 25msec | Viewing Angle (v/h): | 80/80/80/80(Typ.)(CR≥10) (Top/Button/Left/Right) |
| Contrast: | 700:1 | Power Supply: | DC 12V /4A |
| Warranty: | 1 Year | ||
| High Light: | Vandalproof PCAP Touch Monitor,400 cd/m2 PCAP Touch Monitor,Vandalproof pcap touch screen |
||
Vandalproof 8 inch Flat Screen Open Frame PCAP Touch Monitor with 10 points touch
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single & Multi-touch screens (custom sizes available)
Single & Multi-touch monitors (custom sizes and functions available)
All-in-one computers
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.
8 inch PCAP touch monitor Features:
8 inch Capacitive touch monitor specification :
| General | |
| Model | COT080-CPF02 |
| Series | Open frame |
| Monitor Dimensions | Width: 209mm Height: 172mm Depth: 42mm |
| LCD Type | 8” Active matrix TFT-LCD |
| Video Input | VGA and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply |
Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 162.048(W) × 121.536(H) mm |
| Resolution | 1024×768 @60Hz |
| Dot Pitch(mm) | 0.15825×0.15825 mm |
| Nominal Input Voltage | +3.3V(Typ) |
| Viewing angle (v/h) | 80/80/80/80(Typ.)(CR≥10) (Top/Button/Left/Right) |
| Contrast | 700:1 |
| Luminance(cd/m2) | 400 |
| Response Time(Rising) | 25msec |
| Support Color | 16.7M Colors |
| Backlight MTBF(hr) | Min 20000 hrs |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 5points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
8 inch PCAP touch monitor drawing:

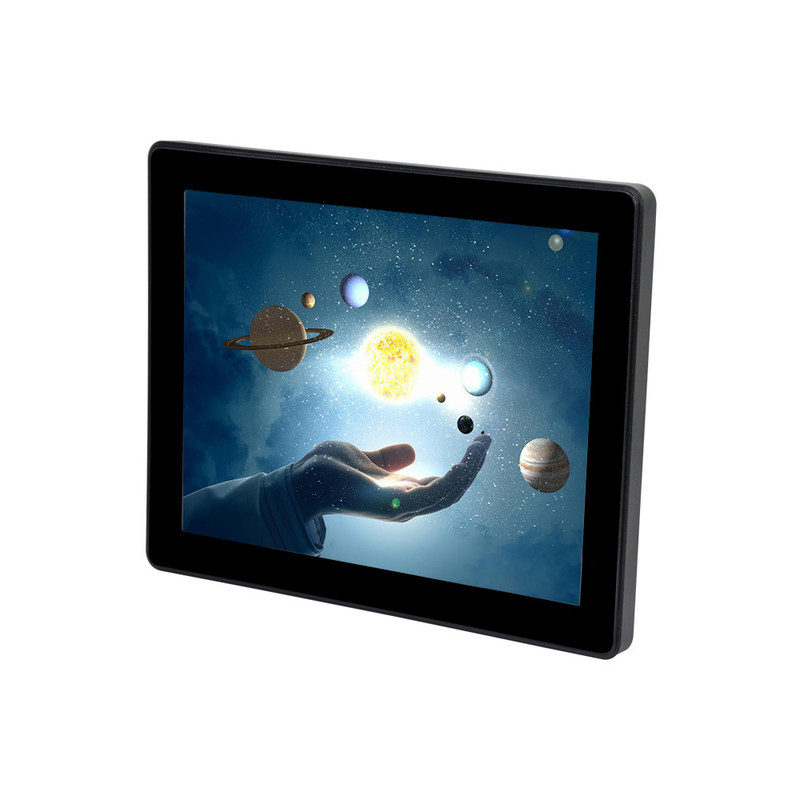

8 inch Capacitive display monitor pictures:
