Product Details:
|
| LCD Type: | Bar Led Advertising Display | After-sale Service:: | Online Technical Support |
|---|---|---|---|
| Brightness:: | 450cd/m2 700cd/m2 Available | View Angle:: | 89/89/89/89(Min) |
| Didsplay Area:: | 923*258.5mm(H*V) | MOQ: | 1 Piece |
| Warranty:: | 1 Year | CPUPixels:: | 1920*540 |
| Constrast Ratio:: | 1400:1 | ||
| High Light: | TFT Stretched Bar LCD Display,34.6 Inch Stretched Bar LCD Display,TFT Stretched Bar LCD Screen |
||

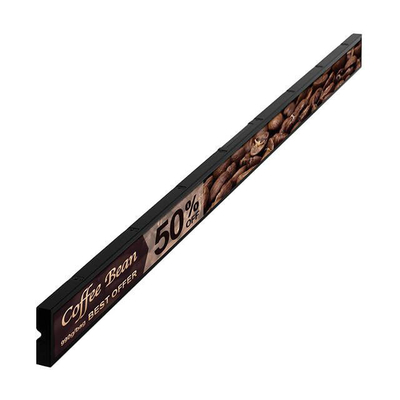

Stretched bar LCD display design for bus/metro,airport and other transportation,Shopping mall and retail shop, replacement of the traditional paper display.
● High contrast, high brightness, greatly improving the layering of the picture, and better performance of details;Wide color range.
● Sync play or Play as a video wall.
● Shelf edge LCD display with narrow bezel, advertisements are displayed without blocking the sight of consumers.
● Support WIFI/LAN,3G/4G(optional).Optional Refee CMS software for content remote management.
Specification:
| Size | 34.6inch led (40"cutting) | |||
| Panel item | CJRS346ENT-N01 | |||
| Display type | TFT-LCD | |||
| Display mode | IPS,Normally black,transmissive display | |||
| Pixels | 1920*162 | |||
| brightness | 450cd/m2 700cd/m2 | |||
| Constrast Ratio | 1200:01:00 | |||
| Display color | 16.7m | |||
| View angle | 89/89/89/89 | |||
| Dispaly area | 878*73mm(H*V) | |||
| Outline Size | 900*95*13mm(H*V*D) | |||
| Respon Time | 8ms | |||
| Installation method | Wall-mounted, horizontal screen (installation accessories are also available) | |||
| Appearance material | All metal, industrial appearance structural design | |||
| Backlight Type | WLED | |||
| Environmental Indicators | Operating Temperature:-5℃～60℃ | |||
| Environmental Indicators | Relative humidity:20％～80％ | |||
| Environmental Indicators | Storage Temperature:-20℃～60℃ | |||
| Power supply | DC12V/220VAC 50/60Hz External adapter power supply | |||
| External adapter power supply | ＜60W | |||
| Standby Consumption | <3W | |||
| Weight | 2.5kgs | |||
Products Picture
Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions,CJTouch believes in engaging with customers while providing customized services.
Experience:
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
Contact Person: Lydia Cai
Tel: +8613927483927
