Product Details:
|
| LCD Type: | Bar Lcd Advertising Display | Brightness: | 450cd/m2 700cd/m2 Available |
|---|---|---|---|
| View Angle: | 89/89/89/89(Min) | Didsplay Area: | 923*258.5mm(H*V) |
| Warranty: | One Year | CPUPixels: | 1920*540 |
| Constrast Ratio: | 1400:1 | ||
| High Light: | 34.6 Inch Stretched Bar Lcd Monitor,450cd/M2 Stretched Bar Lcd Monitor,450cd/M2 Ultra Wide LCD Panel |
||
450cd/M2 34.6 Inch Stretched Bar Lcd Monitor TFT Ultra Wide LCD Panel
34.6 inch ultra wide stretched bar lcd monitor commercial screen shelf advertising display
The high brightness liquid crystal substrate of the strip LCD screen is processed by a unique technology. The ordinary TV screen has the characteristics of an industrial liquid crystal screen, high reliability, good stability, and is suitable for working in a harsh environment.
Wider demonstration range, which makes the screen out of the traditional limitations, so that many traditional screens can not meet the creativity can be applied.
Wide strip screen can increase the amount of information, especially in the face of longer information, strip screen can befully displayed, reducing the viewer's information omission or misreading caused by insufficient space.
The strip LCD screen can be cut to any size according to customer requirements. The
thickness of the strip screen module can be adjusted according to customer requirements.
The strip LCD screen uses an imported aluminum substrate, and the ability to absorb and dissipate heat with great efficiency reduces the light decay of the LED lamp. The backlight heat has a low influence on the liquid crystal substrate, achieving energy saving and long life, effectively saving energy, and the product is lighter and thinner.
Specification:
| Size | 34.6inch led (40"cutting) | |||
| Panel item | CJRS346ENT-N01 | |||
| Display type | TFT-LCD | |||
| Display mode | IPS,Normally black,transmissive display | |||
| Pixels | 1920*162 | |||
| brightness | 450cd/m2 700cd/m2 | |||
| Constrast Ratio | 1200:01:00 | |||
| Display color | 16.7m | |||
| View angle | 89/89/89/89 | |||
| Dispaly area | 878*73mm(H*V) | |||
| Outline Size | 900*95*13mm(H*V*D) | |||
| Respon Time | 8ms | |||
| Installation method | Wall-mounted, horizontal screen (installation accessories are also available) | |||
| Appearance material | All metal, industrial appearance structural design | |||
| Backlight Type | WLED | |||
| Environmental Indicators | Operating Temperature:-5℃～60℃ | |||
| Environmental Indicators | Relative humidity:20％～80％ | |||
| Environmental Indicators | Storage Temperature:-20℃～60℃ | |||
| Power supply | DC12V/220VAC 50/60Hz External adapter power supply | |||
| External adapter power supply | ＜60W | |||
| Standby Consumption | <3W | |||
| Weight | 2.5kgs | |||

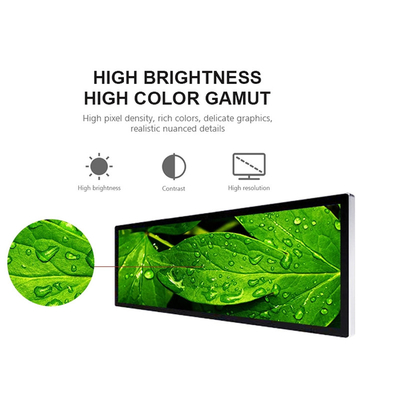

Products Picture
