Product Details:
|
| LCD Type: | Bar Lcd Advertising Display | After-sale Service: | Online Technical Support |
|---|---|---|---|
| Brightness: | 450cd/m2 700cd/m2 Available | View Angle: | 89/89/89/89(Min) |
| Didsplay Area: | 923*258.5mm(H*V) | CPUPixels: | 1920*540 |
| Constrast Ratio: | 1400:1 | ||
| High Light: | Ultra Wide Stretched Bar LCD Display,TFT Stretched Bar LCD Display,450cd/m2 Bar Lcd advertising display |
||
TFT Ultra Wide Stretched Bar LCD Display 34.6 Inch 1920X162
34.6 inch ultra wide stretched bar lcd monitor commercial screen shelf advertising display
The high brightness liquid crystal substrate of the strip LCD screen is processed by a unique technology. The ordinary TV screen has the characteristics of an industrial liquid crystal screen, high reliability, good stability, and is suitable for working in a harsh environment.
Wider demonstration range, which makes the screen out of the traditional limitations, so that many traditional screens can not meet the creativity can be applied.
Wide strip screen can increase the amount of information, especially in the face of longer information, strip screen can befully displayed, reducing the viewer's information omission or misreading caused by insufficient space.
Support horizontal and vertical screen playback switching, according to different functional requirements of customers, a variety of configurations are optional.
The strip LCD has ultra-high dynamic contrast, the color display is more saturated and gorgeous, the visual effect is more stereoscopic, ultra-fast response time, and the unique black field insertion and backlight
scanning technology enhances the visual performance under dynamic images.
Specification:
| Size | 34.6inch led (40"cutting) | |||
| Panel item | CJRS346ENT-N01 | |||
| Display type | TFT-LCD | |||
| Display mode | IPS,Normally black,transmissive display | |||
| Pixels | 1920*162 | |||
| brightness | 450cd/m2 700cd/m2 | |||
| Constrast Ratio | 1200:01:00 | |||
| Display color | 16.7m | |||
| View angle | 89/89/89/89 | |||
| Dispaly area | 878*73mm(H*V) | |||
| Outline Size | 900*95*13mm(H*V*D) | |||
| Respon Time | 8ms | |||
| Installation method | Wall-mounted, horizontal screen (installation accessories are also available) | |||
| Appearance material | All metal, industrial appearance structural design | |||
| Backlight Type | WLED | |||
| Environmental Indicators | Operating Temperature:-5℃～60℃ | |||
| Environmental Indicators | Relative humidity:20％～80％ | |||
| Environmental Indicators | Storage Temperature:-20℃～60℃ | |||
| Power supply | DC12V/220VAC 50/60Hz External adapter power supply | |||
| External adapter power supply | ＜60W | |||
| Standby Consumption | <3W | |||
| Weight | 2.5kgs | |||

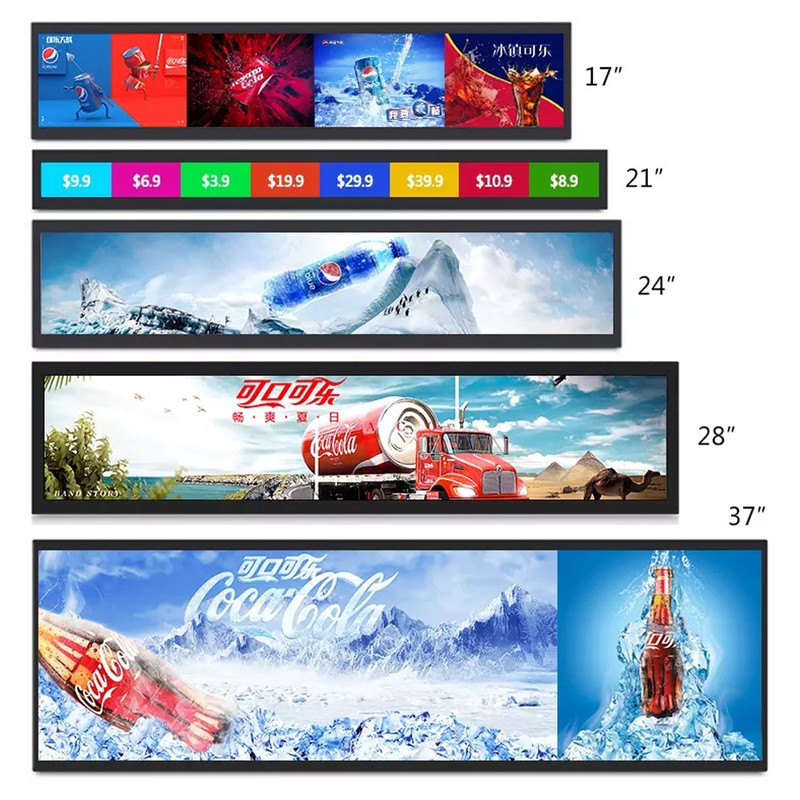

Products Picture
