Product Details:
Place of Origin: Dongguan China
Brand Name: CJ TOUCH
Certification: CE/FCC/CCC/ISO9001
Model Number: CJRS346ENT-N01
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: wooden box package
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000(pcs )per quarter

34.6 inch Stretched Bar LCD Display , TFT Ultra Wide LCD Panel 1920X162

Description
LCD Type: Bar Lcd Advertising Display After-sale Service:: Online Technical Support
Brightness:: 450cd/m2 700cd/m2 Available View Angle:: 89/89/89/89(Min)
Didsplay Area:: 923*258.5mm(H*V) MOQ: 1 Piece
Warranty:: 1 Year CPUPixels:: 1920*540
Constrast Ratio:: 1400:1
High Light:

34.6 Inch Stretched Bar Lcd Display

,

1920X162 Stretched Bar LCD Display

,

TFT Ultra Wide LCD Panel

34.6 inch ultra wide stretched bar lcd monitor commercial screen shelf advertising display

Products Features

The high brightness liquid crystal substrate of the strip LCD screen is processed by a unique technology. The ordinary TV screen has the characteristics of an industrial liquid crystal screen, high reliability, good stability, and is suitable for working in a harsh environment.
Wider demonstration range, which makes the screen out of the traditional limitations, so that many traditional screens can not meet the creativity can be applied.
Wide strip screen can increase the amount of information, especially in the face of longer information, strip screen can befully displayed, reducing the viewer's information omission or misreading caused by insufficient space.
The strip LCD screen can be cut to any size according to customer requirements. The
thickness of the strip screen module can be adjusted according to customer requirements.
The strip LCD screen uses an imported aluminum substrate, and the ability to absorb and dissipate heat with great efficiency reduces the light decay of the LED lamp. The backlight heat has a low influence on the liquid crystal substrate, achieving energy saving and long life, effectively saving energy, and the product is lighter and thinner.
The playback effect can be arbitrarily controlled by software. Different resolutions of HD and SD can be rewritten by software, single mode playback, network publishing system mode playback, single video single picture mode playback and split screen picture video mixed mode playback.
Support horizontal and vertical screen playback switching, according to different functional requirements of customers, a variety of configurations are optional.
The strip LCD has ultra-high dynamic contrast, the color display is more saturated and gorgeous, the visual effect is more stereoscopic, ultra-fast response time, and the unique black field insertion and backlight
scanning technology enhances the visual performance under dynamic images.



Specification:

Size 34.6inch led (40"cutting)
Panel item CJRS346ENT-N01
Display type TFT-LCD
Display mode IPS,Normally black,transmissive display
Pixels 1920*162
brightness 450cd/m2 700cd/m2
Constrast Ratio 1200:01:00
Display color 16.7m
View angle 89/89/89/89
Dispaly area 878*73mm(H*V)
Outline Size 900*95*13mm(H*V*D)
Respon Time 8ms
Installation method Wall-mounted, horizontal screen (installation accessories are also available)
Appearance material All metal, industrial appearance structural design
Backlight Type WLED
Environmental Indicators Operating Temperature:-5℃~60
Environmental Indicators Relative humidity:20%~80
Environmental Indicators Storage Temperature:-20℃~60
Power supply DC12V/220VAC 50/60Hz External adapter power supply
External adapter power supply 60W
Standby Consumption <3W
Weight 2.5kgs

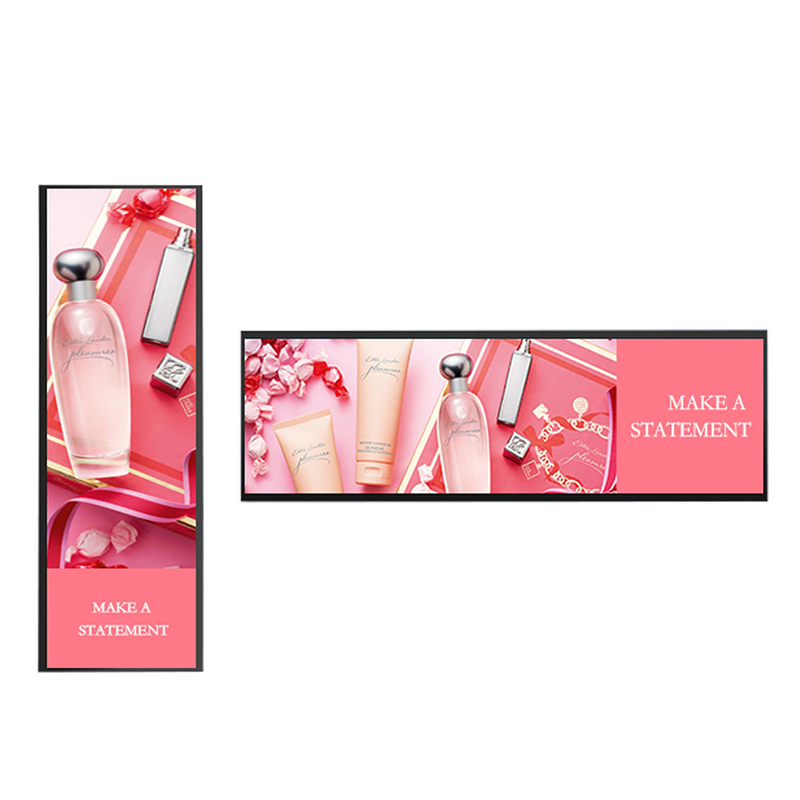

Products Picture
34.6 inch Stretched Bar LCD Display , TFT Ultra Wide LCD Panel 1920X162 034.6 inch Stretched Bar LCD Display , TFT Ultra Wide LCD Panel 1920X162 1
34.6 inch Stretched Bar LCD Display , TFT Ultra Wide LCD Panel 1920X162 2
