Product Details:
|
| Keywords: | Infrared Touch Screen HD LCD Display Monitor | Resolution: | 3840*2160,1920*1080 |
|---|---|---|---|
| Touch Point: | 1-10 Points Option | Screen Size: | 55" |
| Brightness: | 250cd/m2 | Interface: | VGA/DVI/USB/HDMI/DC12V |
| Material: | Metal Case+ Infrared Touch Panel | Application: | Indoor, Industial, Vending Machine Kiosk |
| High Light: | 55inch LCD Display Monitor,Vandalproof LCD Display Monitor,IR Frame Touch Screen For Education |
||
This CJTOUCH Infrared IR touch monitor is Wall mount touch monitors, Open Frame Touch monitors, Interactive Digital Signage,it is cost-effective touch solution which is designed for different Kiosks, ATM,Interactive digital, Transportation etc, and Public environments: Hotel lobbies, Office buildings, Auto dealerships, Bank, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc.
Size with 32" 43" 49" 55" 75" 86" 98" optional, indoor or outdoor using optional
Infrared Touch screen monitor Feature:
|
Economy choice, Reliable quality, Easy operation Custom Sizes Available,Easy to Install |
On-screen display (OSD) |
| Supreb cosmetic, slim housing | 3840*2160,1920*1080 Display |
| nfrared multi touch frame ,supports 10,20,40 precise touch points ,Driver free | Optional VESA 100mm x 100mm, 200mm x 200mm back bracket option |
| Video Input VGA,DVI,HDMI options | Anti-vandal 4mm Physical tempering glass |
|
Industrial Desgin With Excellent Durablity Extremely Durable / Scratch Resistant |
Easy to Use:Plug and play Compatible with Win7, Win8, Win10, Android, Linux system |
|
Perfect Solutions For Use In Public Waterproof optional,High Stability / Reliability |
OEM/ODM Customized Option: Brightness/Computer Integrated Inside/Etc |
| Factory Competitive Price | Fast Delivery |
Functionalities:
1. Stable operation
2. Accurate Touch Response
3. Durable
4. Scratch-resistant glass sur face
5. Anti-glare
6. Vandal-Proof (Tempered glass
7.superior Image Clarity resolution
Specification:
| Product Parameters | |||
| Product Name : | Touch Screen Monitor | Display Type: | Active Matrix TFT LCD, LED Backlight |
| Diagonal Dimension: | 55.0" Diagonal | P/N: | GT-TM-5502E-IR-HD |
| Active Area: | 1209.6mm(H) x 680.4mm(V) | Resolution: | 1920*1080 @60Hz |
| Brightness: | 400 cd/m² | Contrast Ratio: | 1200:1 |
| Display Colors: | 16.7M | Response Time: | 8 ms |
| Regular Sizes: | 32",43",49",55",65" | Video Formats: | VGA, DVI, HDMI |
| Touch Technology: | Infrared Touch | Touch Points: | 20 points |
| Touch Voltage: | 5V | Touch Chip: | EETI,ILITEK,WEIDA |
| Touch Interface: | USB | Touch System: | Windows,Android,linux |
| Power Consumption : | Display Only: 75W(Typ.) | View Angle: | L/R:89/89;U/D:89/89 (Typ.)(CR≥10) |
| Temperature: | Operating: 0°C to 40°C | Temperature: | Storage: -20°C to 60°C |
| Humidity: | Operating: 20% to 80% | Humidity: | Storage: 10% to 90% |
| MTBF: | 50,000 Hours | Explosion-proof : | IK08 |
| Warranty: | 1 Year | OSD: | Digital OSD |
| Surface Treatment: | AG,AR,AF(optional) | Agency Approvals: | FCC,CE,CB,HDMI,CCC |
| Weight (approx.): | Net weight: 13kg(Typ.); Shipping: (15.0 kg (reference) | ||
| Mounting Options: | 600MMX600MM wall-mounted installation; mobile bracket installation; K-type base | ||

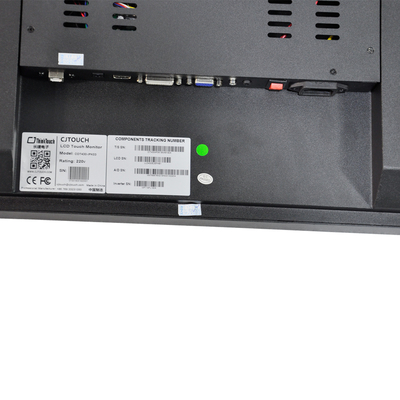

| Video Signal Connector: | Female Head DE - 15 Connector,Female Head DVI - D, Dual - Link Connector,Female Head HDMI Connector. | ||

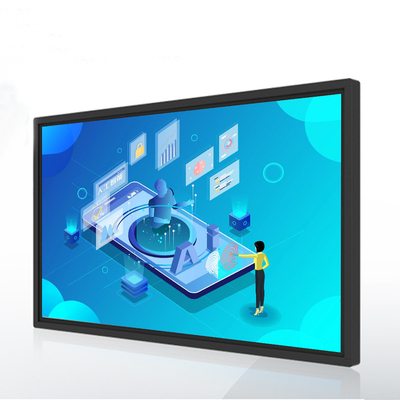

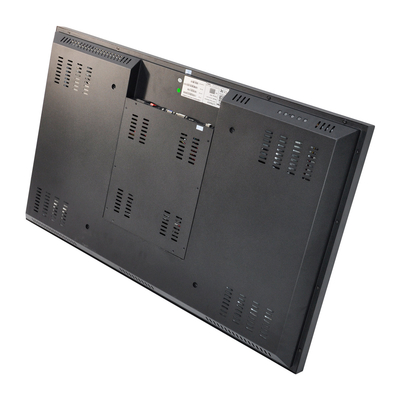

Product Picture
Drawing :
