Product Details:
|
| Type: | Industrial Infrared IR Touch Screen Monitor | Touch Point: | 4 Points Touch |
|---|---|---|---|
| Color: | Black(other Colors Optional ) | Resolution: | 1024*768 |
| Brightness: | 250cd/m2 | Interface: | VGA/DVI/USB/HDMI/DC12V |
| Material: | Metal Case+ Infrared Touch Panel | Application: | Indoor,industial,Vending Machine Kiosk |
| High Light: | IP65 Infrared Touch Monitor,Embedded Infrared Touch Monitor,Waterproof Touch Screen Infrared |
||
This CJTOUCH Infrared IR touch monitor is Wall mount touch monitors, Open Frame Touch monitors, Interactive Digital Signage,it is cost-effective touch solution which is designed for different Kiosks, ATM,Interactive digital, Transportation etc, and Public environments: Hotel lobbies, Office buildings, Auto dealerships, Bank, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc.
Waterproof IR touch screen Size with 15" 17" 19" 21.5" optional, indoor or outdoor using optional
Infrared Touch screen monitor Feature:
|
Economy choice, Reliable quality, Easy operation Custom Sizes Available,Easy to Install |
On-screen display (OSD) |
| Supreb cosmetic, slim housing | 1024*768 Display |
| nfrared multi touch frame ,supports 4precise touch points ,Driver free | Optional VESA 100mm x 100mm, 75mm x 75mm back bracket option |
| Video Input VGA,DVI,HDMI options | Anti-vandal 4mm Physical tempering glass |
|
Industrial Desgin With Excellent Durablity Extremely Durable / Scratch Resistant |
Easy to Use:Plug and play Compatible with Win7, Win8, Win10, Android, Linux system |
|
Perfect Solutions For Use In Public Waterproof optional,High Stability / Reliability |
OEM/ODM Customized Option: Brightness/Computer Integrated Inside/Etc |
| Factory Competitive Price | Fast Delivery |
Functionalities:
Specification:
| Display Specifications | ||||
| Characteristic | Value | Comment | ||
| LCD Size/Type | 15” SXGA Color TFT-LCD | |||
| Aspect Ratio | 4:03 | |||
| Active Area | Horizontal | 306.00 mm | ||
| Vertical | 230.00 mm | |||
| Pixel | Horizontal | 0.297 | ||
| Vertical | 0.297 | |||
| Panel Resolution | 1024×768 (75 Hz) | Native | ||
| Display Color | 16.7 Million | 6-bits + Hi-FRC | ||
| Contrast Ratio | 500:01:00 | Typical | ||
| Brightness | 250 nits | Typical | ||
| Response Time | 3.6 ms | Typical | ||
| Viewing Angle | Horizontal | 160 | Typical | |
| Vertical | 160 | |||
| Video Signal Input | VGA and DVI and HDMI | |||
| Physical Specifications | ||||
| Dimensions | Width | 349.0 mm | ||
| Height | 273.0 mm | |||
| Depth | 41.5 mm | |||
| Weight | Net Weight 5 kgs | Shipping Weight 7 kgs | ||
| Box Dimensions | Length | 400 mm | ||
| Width | 450 mm | |||
| Height | 200 mm | |||
| Electrical Specifications | ||||
| Power Supply | DC 12V 4A | Power Adapter Included | ||
| 100-240 VAC, 50-60 Hz | Plug Input | |||
| Power Consumption | Operating | 38 W | Typical | |
| Sleep | 3 W | |||
| Off | 1 W | |||
| Touch Screen Specifications | ||||
| Touch Technology | Infrared 2 touch point | |||
| Touch Interface | USB (Type B) | |||
| Controller Model Number | HID plug and play | |||
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) | ||
| Driver | Calibration Tool Offered | |||
| Environmental Specifications | ||||
| Condition | Specification | |||
| Temperature | Operating | -10°C ~+ 50°C | ||
| Storage | -20°C ~ +70°C | |||
| Humidity | Operating | 20% ~ 80% | ||
| Storage | 10% ~ 90% | |||
| MTBF | 50000 Hrs at 25°C | |||

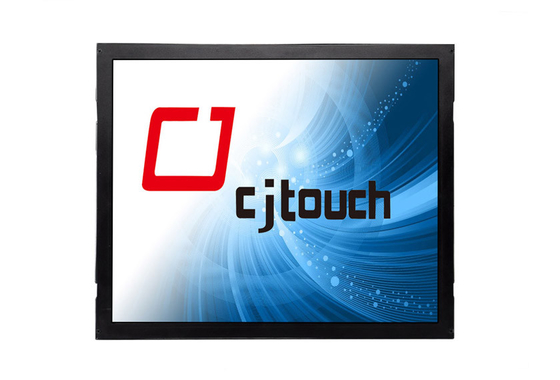

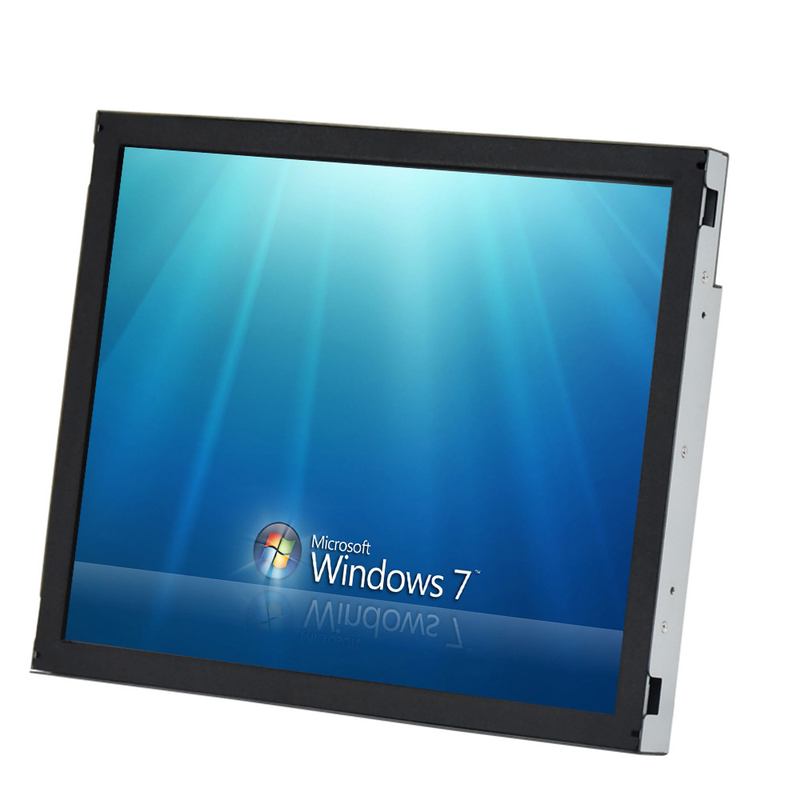

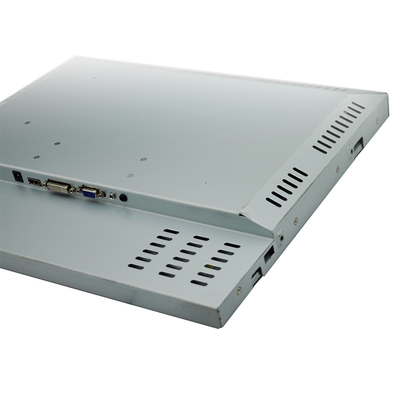

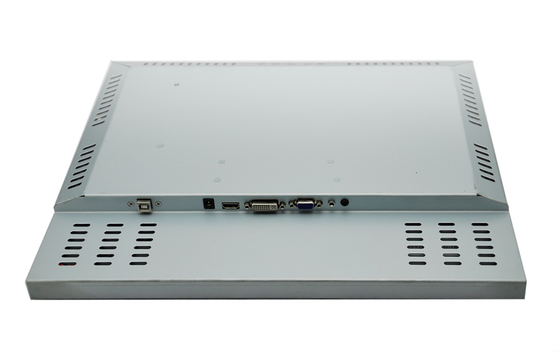

Product Picture
Drawing :
