Product Details:
|
| Touch Screen: | IR Touch (Support Multi Touch), Infrared Touch Screen | Material: | Metal Case+ Infrared Touch Panel |
|---|---|---|---|
| Screen Size: | 32" | Resolution: | 1920×1080 |
| Brightness: | 250cd/m2 | Interface: | VGA/DVI/USB/HDMI/DC12V |
| Touch Point: | 1-10 Points Option | Application: | Gaming ,retail ,kiosk,care,education |
| High Light: | 60Hz Infrared Touch Monitor,Infrared Touch Monitor With Tempered Glass,Vandalproof Infrared Touch Panel |
||
This CJTOUCH touch display produced with 32inch TFT LCD panel and 32inch 6 points IR touch screen . Could be optional come with/without OS to applied as monitor or PC base on your detail requirements., cost-effective touch solution which is designed for Kiosks, ATM, Gaming, Casino, Interactive digital, Industrial, Education, Transportation etc..., is easily Connected and integrated by user.
Infrared Touch screen monitor Feature:
· Industrial Desgin With Excellent Durablity
· IR touch Technology Multi Touch 2-10 Touch Points
· 3MM Enhanced Glass With Vandal Proof Resistance
· High Light Transmission Clear Glass
· Easy to Use:Plug and Works on Windows/Linux/(Android)
· Perfect Solutions For Use In Public
· VESA Mounting and Rear Mounting
· OEM/ODM Customized Option: Brightness/Computer Integrated Inside/Etc
· Factory Competitive Price and Fast Delivery
Our advantage
1.Infrared multi touch frame , supports 10,20,32,64 precise touch points ,Driver free
2.USB plug and play, Sizes from 15" to 800" (4:3 ,16:9, 16:10)
3.Custom Sizes Available, Easy to Install
4.Waterproof optional, High Stability / Reliability
5.Extremely Durable / Scratch Resistant
6.Compatible with Win7, Win8, Win10, Android, Linux system
7.Simple calibration
Functionalities:
1. Stable operation
2. Accurate Touch Response
3. Durable
4. Scratch-resistant glass sur face
5. Anti-glare
6. Vandal-Proof (Tempered glass
7.superior Image Clarity resolution
Specification:
| Display Specifications | |||||
| Characteristic | Value | Comment | |||
| LCD Size/Type | 32” a-Si TFT-LCD | ||||
| Aspect Ratio | 16:09 | ||||
| Active Area | Horizontal | 698.4mm | |||
| Vertical | 392.85mm | ||||
| Pixel | Horizontal | 0.36375 | |||
| Vertical | 0.36375 | ||||
| Panel Resolution | 1920(RGB)×1080 (FHD)(60Hz) | Native | |||
| Display Color | 16.7 Million | 8-bits + Hi-FRC | |||
| Contrast Ratio | 1100:01:00 | Typical | |||
| Brightness | 400 cd/m² | Typical | |||
| Response Time | 10ms | Typical | |||
| Viewing Angle | Horizontal | 178 | Typical 89/89/89/89 (Min.)(CR≥10) | ||
| Vertical | 178 | ||||
| Video Signal Input | VGA and DVI and HDMI | ||||
| Physical Specifications | |||||
| Dimensions | Width | 762.8mm | |||
| Height | 457.3 mm | ||||
| Depth | 73 mm | ||||
| Electrical Specifications | |||||
| Power Supply | AC220V | Power Adapter Included | |||
| 100-240 VAC, 50-60 Hz | Plug Input | ||||
| Power Consumption | Operating | 38 W | Typical | ||
| Sleep | 3 W | ||||
| Off | 1 W | ||||
| Touch Screen Specifications | |||||
| Touch Technology | Infrared (IR) Touch Screen 10 Touch Point | ||||
| Touch Interface | USB (Type A) | ||||
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) | |||
| Driver | Driver Offered | ||||
| Environmental Specifications | |||||
| Condition | Specification | ||||
| Temperature | Operating | -10°C ~+ 50°C | |||
| Storage | -20°C ~ +70°C | ||||
| Humidity | Operating | 20% ~ 80% | |||
| Storage | 10% ~ 90% | ||||
| MTBF | 30000 Hrs at 25°C | ||||

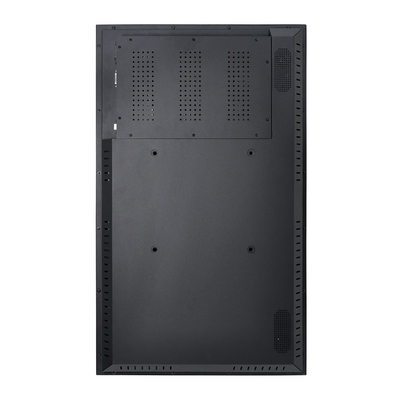

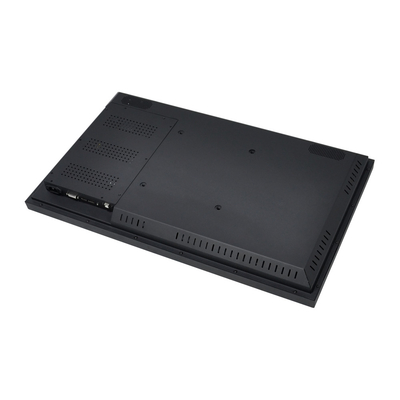

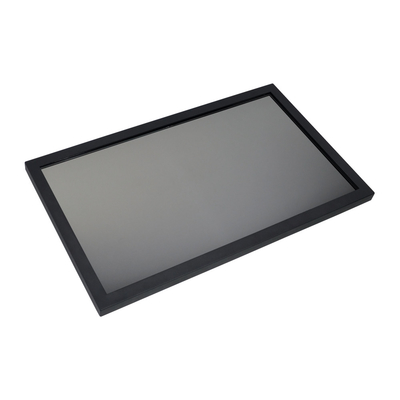

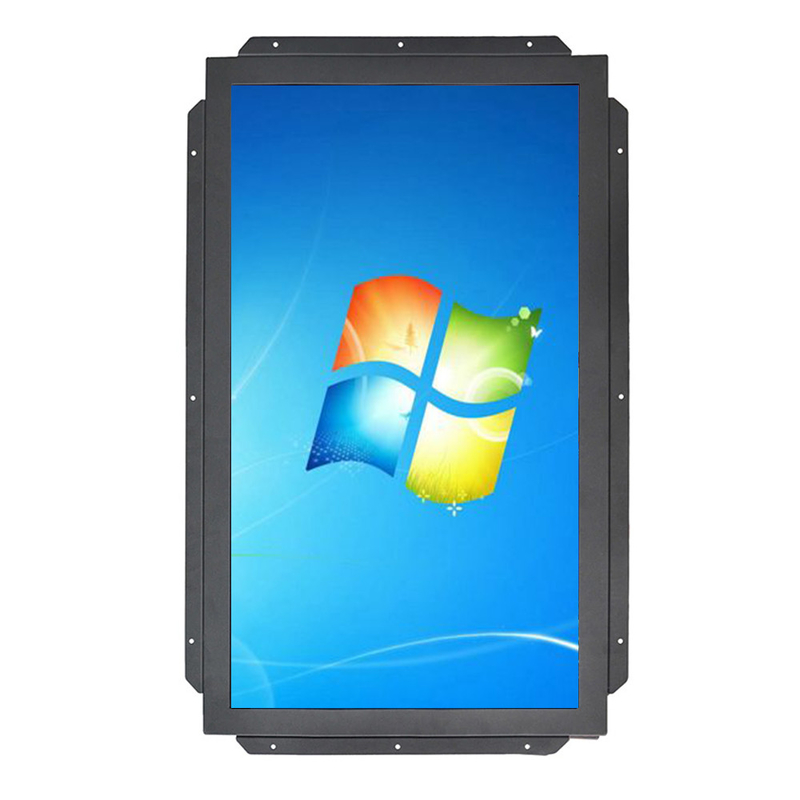

Product Picture
Drawing :
