Product Details:
|
| Series: | Water-proof And Flat Screen | Viewing Angle (v/h): | 80/80/50/60 (Typ.)(CR≥10) |
|---|---|---|---|
| Resolution: | 800×600@60Hz | Video Input: | VGA And DVI |
| Luminance(cd/m2): | 400 | Response Time(Rising): | 10/25 (Typ.)(Tr/Td) Ms |
| Contrast: | 600:1 | Power Supply: | DC 12V 4A |
| Warranty: | 1 Year | ||
| High Light: | 12.1 Inch PCAP Touch Monitor,PCAP Touch Monitor With Tempered Glass,USB PCAP Touch Screen Monitor |
||
12.1 Inch USB VGA DVI PCAP Touch monitor LCD display monitor with tempered glass
12.1 inch PCAP touch monitor Features:
Projected capacitive touch technology
High quality LCD display panel with excellent viewing angle
Achieve 5/10 points multi touch
Multilingual on-screen display (OSD)
VESA hole or mount bracket, horizontal or vertical
Fully RoHS,FCC certification
LCD backlight MTBF 30000
Experience:
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
Our service strength
Your any inquiry or question will be replied within 24hrs.
Custom are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize your idea.
You can find the right product you want,whatever the most competitive price or Highest quality!
12.1 inch Capacitive touch monitor specification :
| General | |
| Model | COT121-CFF02 |
| Series | Flat screen and waterproof |
| Monitor Dimensions | Width: 293.5mm Height: 224mm Depth: 40mm |
| LCD Type | 12.1” Active matrix TFT-LCD |
| Video Input | VGA and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply |
Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 246.0(H)×184.5(V) |
| Resolution | 800×600@60Hz |
| Dot Pitch(mm) | 0.3075×0.3075 |
| Nominal Input Voltage VDD | +3.3V(Typ) |
| Viewing angle (v/h) | 80/80/50/60 (Typ.)(CR≥10) |
| Contrast | 600:1 |
| Luminance(cd/m2) | 400 (Typ.) |
| Response Time(Rising/Falling) | 10/25 (Typ.)(Tr/Td) ms |
| Support Color | 16.2M colors |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Resolution | 10points touch |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
12.1 inch PCAP touch monitor drawing:

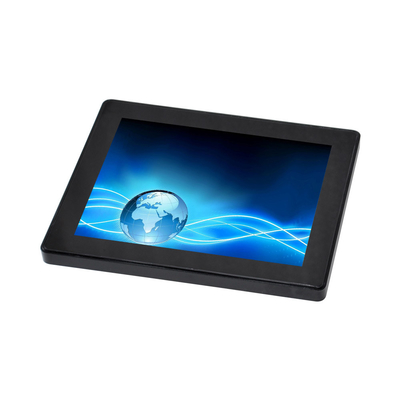

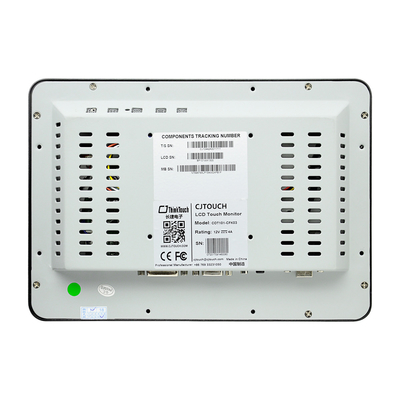

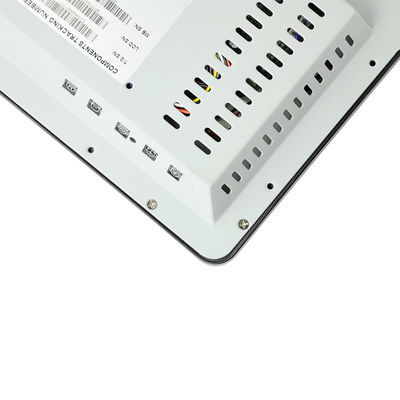

12.1 inch Capacitive display monitor pictures:
