Product Details:
|
| Series: | Water-proof And Flat Screen | Active Area(mm): | 344.16 (H) X 193.59 (V) |
|---|---|---|---|
| Resolution: | 1920 X1080@60Hz | Viewing Angle (v/h): | 85°/85°(CR>10) |
| Contrast: | 800:1 | Luminance(cd/m2): | 220 |
| Response Time(Rising): | 8MS/16MS | Multi Touch: | 10points Touch |
| Touch System Interface: | USB Interface | Warranty: | 1 Year |
| High Light: | Multi Touch PCAP Touch Monitor,8MS PCAP Touch Monitor,10Points Multi Touch Monitor |
||
Interactive 15.6" inch PCAP touch monitor 10 points multi touch monitor
Experience:
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single or Multi-touch screens (custom sizes available)
Single or Multi-touch monitors (custom sizes and functions available)
All-in-one computers
Custom services
15.6 inch PCAP touch monitor Features:
-Using a brand new LCD screen
-Aluminum alloy enclosure with efficient heat dissipation.
-Industrial design with Excellent durability
-It can achieve 5/10 points multi touch
-High Light Transmission Clear Glass
-Perfect Solutions For Use In Public
-VESA Mounting and Rear Mounting
-Factory Competitive Price & Fast Delivery
-Application: Self service kiosk. Advertising signage, Interactive whiteboard, Vending machine ect.
15.6 inch Capacitive touch monitor specification :
| General | |
| Model | COT156-CFK03 |
| Series | Water-proof and Flat screen |
| Monitor Dimensions | Width: 399.7mm Height: 247mm Depth: 40mm |
| LCD Type | 15.6” Active matrix TFT-LCD |
| Video Input | VGA ,DVI and H-DMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply |
Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 344.16 (H) x 193.59 (V) |
| Resolution | 1920 x1080@60Hz |
| Dot Pitch(mm) | 0.17925 (H) x 0.17925 (V) |
| Nominal Input Voltage | +3.3(Typ) |
| Viewing angle (v/h) | 85°/85°(CR>10) |
| Contrast | 800:1 |
| Luminance(cd/m2) | 220 |
| Response Time(Rising) | 8MS/16MS |
| Support color | 16.2M colors |
| Backlight MTBF(hr) | 15000(Min) |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 10points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
15.6 inch PCAP touch monitor drawing:

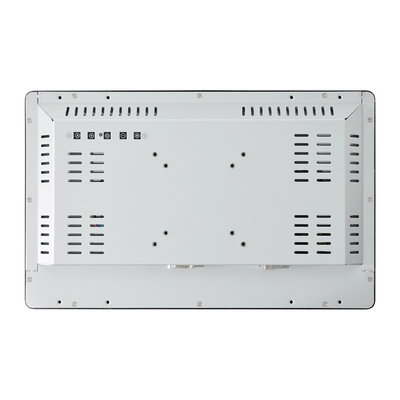

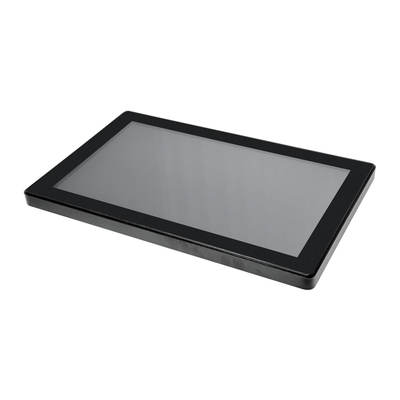

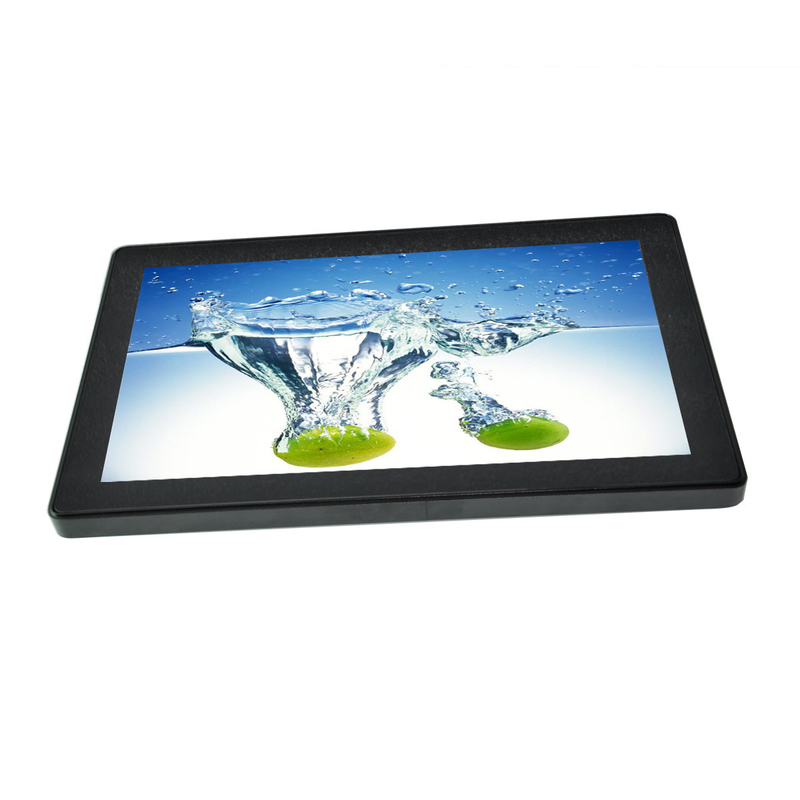

15.6 inch Capacitive display monitor pictures:
