Product Details:
|
| Touch Screen: | PCAP Sensor Touchscreen | Size: | 7, 8, 8.4 Inch |
|---|---|---|---|
| Glass: | 3mm Glass | Screen: | Toughened Glass Screen |
| Characteristic: | Anti-tamper | Touch Points: | 5/10 Touch Points |
| Input Voltage: | 5V | Hardness: | ≥6H |
| High Light: | Antiglare Multi Touch Capacitive Touchscreen,Dustproof Multi Touch Capacitive Touchscreen,Capacitive Touch Screen PCAP |
||
What is PCAP touch screen?
Projected Capacitive (PCAP) touch screens offer the user friendly multi-touch experience, associated with smartphones and tablets, operating with very light touch through a highly durable glass surface.
Now ,Let me introduce features of projected capacitive technology
Application
Main Feature
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

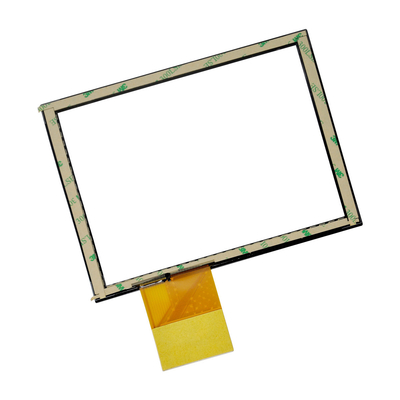

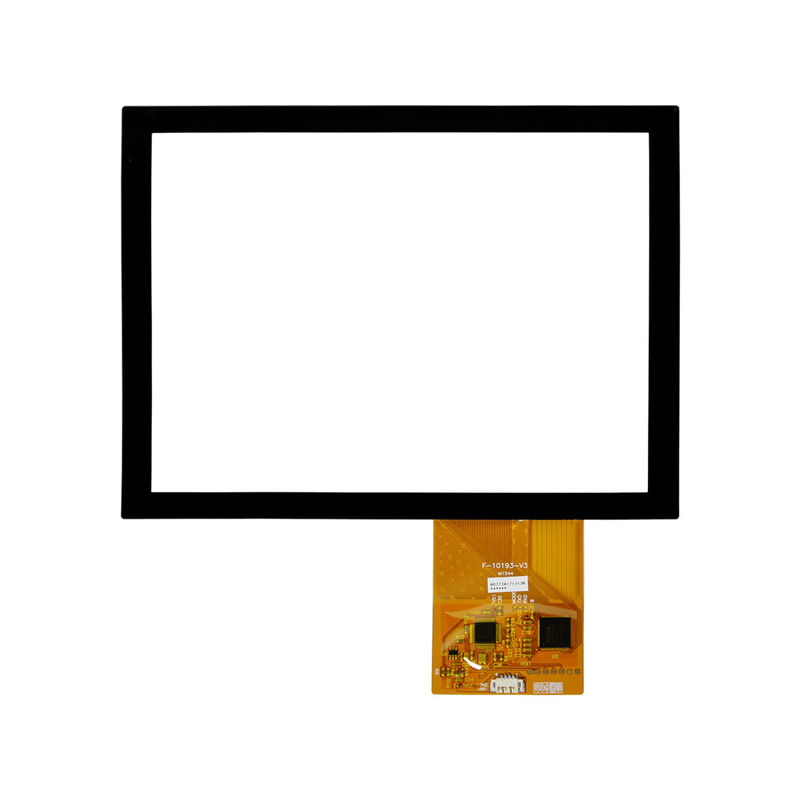

Picture of Product

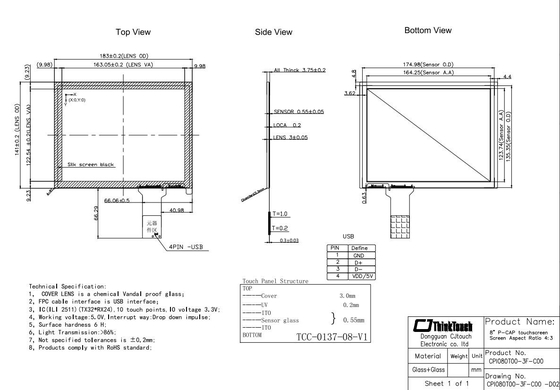

Technical Drawing
