Product Details:
|
| Touch Screen: | Capacitive Touchscreen | Size: | 13.3 Inch (19:6) |
|---|---|---|---|
| Glass: | 3mm Glass | Screen: | Toughened Glass Screen |
| Characteristic: | Anti-tamper | Touch Points: | 10 Touch Points |
| Input Voltage: | 5V | Hardness: | ≥6H |
| High Light: | USB PCAP Touch Screen,Dustproof PCAP Touch Screen,Multipoint USB Capacitive Touch Screen |
||
What is the Projected Capacitive touch ?
Projected capacitive sensor has X and Y electrodes, and there are several ways to put them together.the two-sheets-laminated structure is introduced in this museum.In the two-sheets-laminated structure of projected capacitive, X electrodes are forming on one glass, and Y electrodes are forming on another glass. The two glass sheets are laminated in the way that two electrode sides are facing. The X and Y electrodes are intersecting in matrix.Projected capacitive supports multiple touches, thus supports various elaborate inputs.
Projected capacitive has relatively long life because it has no moving parts in operation.
Take an application example In Financial institutions
In addition to the industries described above. We use touch screens widely in a variety of industries. We frequently use touch screen in Shopping malls, exhibition halls and venues. Therefore,It can transmit and publicize information mainly through the touch screen. To facilitate delivery to customers.
Take an application example In Cinema
The staff of touch screen manufacturers introduced that movie theaters are also places where touch screens are often used. Many movies need to be promoted through the touch screen in the early stage of the screening. Only in this way can more people learn about the movie and its content. So according to the staff of touch screen manufacturers, the frequency of use of touch screens in movie theaters has gradually increased in recent years. So many lovers and theater staff lovers lov many movie lovers and theater staff.
Application
Main Feature
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

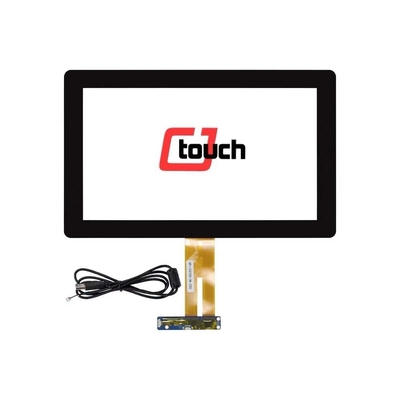

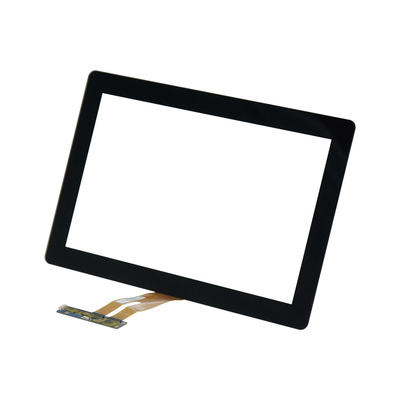

Picture of Product
Technical Drawing
