10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface

Certification
China Dongguan CJTouch Electronic Co., Ltd certification
China Dongguan CJTouch Electronic Co., Ltd certification
Customer Reviews
Have a great time with the people you choose, well even with the ones you wouldn't choose, but that you get to share your time, because it's Christmas, and everybody deserves and should have company, Nobody should be alone, especially now during these days that we are living. So please smile, eat whatever you feel like, and if at some point, when y

—— Xavier

I'm Online Chat Now

10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface

10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface
10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface 10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface

Large Image :  10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface

Product Details:
Place of Origin: China
Brand Name: CJTOUCH
Certification: CE/FCC
Model Number: CPI150T00-3F-C00
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: 1pcs or 15 pcs in a carton
Delivery Time: 2-5 working day
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500pcs/week

10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface

Description
Touch Panel: Projected Capacitive Touch Panel Glass: 3mm Toughened Glass
Size: 15 Inch Screen: Square Screen
Characteristic: Water Proof And Dust Proof Touch Points: 10 Touch Points
Input Voltage: 5V Hardness: ≥6H
High Light:

10 Point Capacitive PCAP Touch Screen

,

PCAP Touch Screen With USB Interface

,

PCT 10 Point Capacitive Touch Screen

USB interface PCAP touch screen 15" PCT Capacitive touchscreens for smart monitor

How PCAP Touch screen Work?

A Projected Capacitive Touch (PCT; also PCAP) technology consists of an insulator such as glass, which is coated with a transparent conductor, like ITO (indium tin oxide). The user’s finger conducts electricity, so touching the surface of the screen results in a distortion of the screen’s electrostatic field; that distortion is measurable as a change in capacitance.

In other words, a capacitance-based sensor is a circuit designed to sense touch by coupling with the electrical fields; touch causes the capacitance of the circuit to change.

Different technologies may be used to determine the location of the touch; the location is then sent to the controller for processing.



Limitations of capacitive touch screen technology:

  • Can not be used with a gloved hand
  • Can not be used with stylus
  • Requires periodic recalibration
  • Ofter retofitted to standrad non-touch LCD monitors which may not be as stable when touched
  • Not usually fitted to monitors when applications require dust , water , scratch or impact resistance

Capacitive touch screen technology is often recommended to customers who would like the confidence of a brand name LCD such as NEC, which the capacitive touch screen would then be retrofitted to.



Main Feature

  • High image clarity
  • Free of drift
  • Z-axis pressure recognition
  • Strong mechanical strength
  • Short response time
  • Compact size for easy integration
  • Customization available on glass sensorsize, driver, accessories

Specification of Product

Technical specification
Type Projected touch panel
Interface USB
Number of touch point 10
input voltage 5V ----
Pressure endurance value <10g
Input Hand writing or capacitive pen
Transmittance >90%
Surface Hardness ≥6H
Usage The specification is applied to transparent and handwriting input
capacitive touch panels
Application It's applied in ordinary electric equipments and automatic office facilities
Cover Lens Specification
Pressure Value 400 ~500 mPA above 6u
Ball Drop Test 130g±2g, 35cm, No damage after the impact at the central area for once.
Hardness ≥6H Pencil: 6H Pressure: 1N/45.
Environment
Working temperature and humidity -10~+60ºC, 20~85% RH
Storage temperature and humidity -10~+65ºC, 20~85% RH
Humidity resistance 85% RH, 120H
Heat resistance 65ºC, 120H
Cold resistance -10ºC, 120H
Thermal shock -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles
Anti - glare Test Incandescent lamp (220V,100W) ,
operating distance over 350mm
Altitude 3,000m
Working Environment Directly Under sunlight ,indoor and outdoor
Software(Firmware)
Scanning Auto full screen scanning
Operate system Win 7,Win 8,Win10, Andriod,Linux
Calibration tool Precalibrated & Software can be download in CJTouch Website

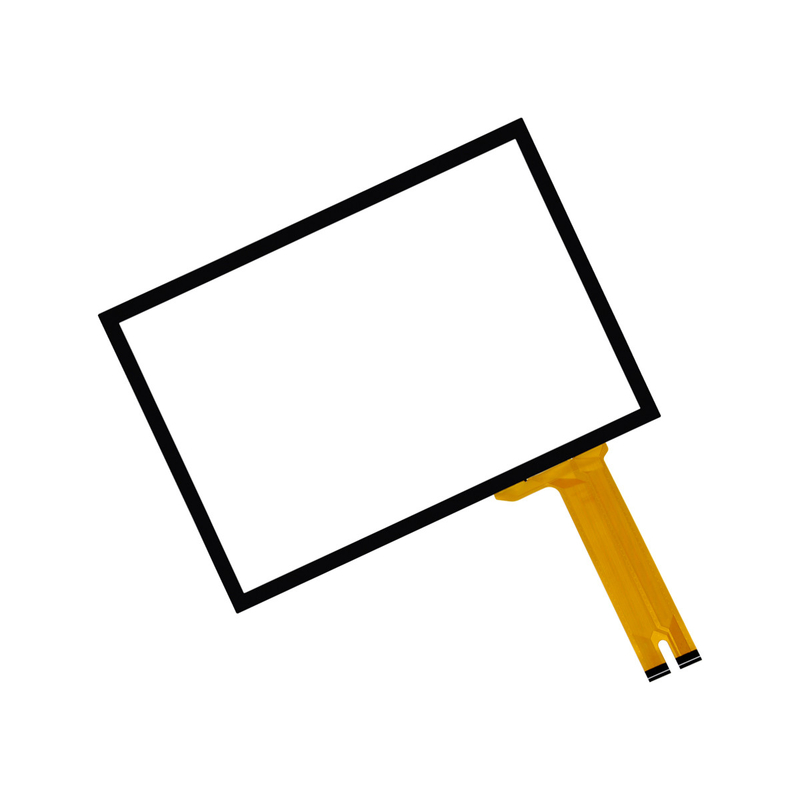

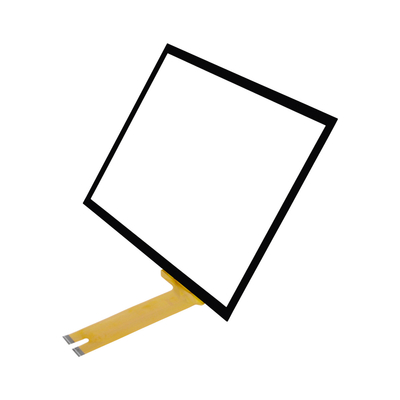

Picture of Product

10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface 0

Technical Drawing

10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface 1
