Product Details:
|
| Type: | Industrial Infrared Touch Screen Monitor | Resolution: | 1366×768 |
|---|---|---|---|
| Touch Point: | 1-10 Points Option | Materials: | Plastic And Aluminum |
| Interface: | VGA/DVI/USB/HDMI/DC12V | Products Status: | Stock |
| Warranty: | 1 Year | Application: | Gaming ,retail ,kiosk,care,education |
| High Light: | 12V 10 Point Multi Touch Monitor,IR 10 Point Multi Touch Monitor,18.5inch IR Touch Screen Monitor |
||
Features
1.1-10 point real multi touch
2.VESA Hole for Wall Mount installation
3.Free for 1 year warranty
4.Optional size: from 10.4'' to 110"
5.Can Customizable vanfalprool /waterproof /dusproof/Anti Sunlight/AG/AR/AF Glass option.
6.This 19 inch open frame touch monitor is nicely mounted onto any special application. Industrial grade chipset and overall design. Easy to be integrated on POP/POS display/kiosk.
Packing Details
--Anti-static film, bubble bag, Pearl sponge and wooden case
Delivery Details
--1~20 working days after deposit received
Delivery method
--TNT, DHL, airfreight and seafreight are welcome. You are welcome to ask us to delivery for you and contact your own agent.
OEM / ODM It Is Welcome
1. Different Metal Case Optional.
2. No Frame Optional (SKD).
3. Touch Screen Optional (Resistive,Infrared,Capacitive Touch).
4. DVI USB AV BNC SD Card Optional.
5. Industrial Panel,IPS Panel,High Brightness Panel Optional.
6. Different Size 5inch-42inch Optional.
7. Desktop,Wall Mount Optional.
8. Customized Service.
Specification:
|
General |
|
|
Model |
COT185-IPK02-BT |
|
Monitor Dimensions |
Width: 451mm Height: 272mm Depth: 54.9mm |
|
Weight(N.W/G.W) |
6Kg / 9Kg (Approx.) |
|
LCD Type |
18.5”SXGA Color TFT-LCD |
|
Video Input |
VGA and DVI |
|
OSD controls |
Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
|
Power Supply |
Type: External brick |
|
Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
|
LCD Specification |
|
|
Active Area(mm) |
409.8(H)×230.4(V) |
|
Resolution |
1366*768 @75Hz |
|
Dot Pitch(mm) |
0.3×0.3 |
|
Nominal Input Voltage VDD |
+5.0V(Typ) |
|
Viewing angle (v/h) |
80°/85° |
|
Contrast |
1000:1 |
|
Luminance(cd/m2) |
250 |
|
Response Time(Rising/Falling) |
3.6s/1.4s |
|
Support Color |
16.7M colors |
|
Backlight MTBF(hr) |
30000 |
|
Touchscreen Specification |
|
|
Type |
Cjtouch IR touch screen with dual touch |
|
Resolution |
4096*4096 |
|
Light Transmission |
92% |
|
Touch Life Cycle |
50 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /4A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
|
Operating Temp. |
0～50°C |
|
Storage Temp. |
-20～60°C |
|
Operating RH: |
20%～80% |
|
Storage RH: |
10%～90% |

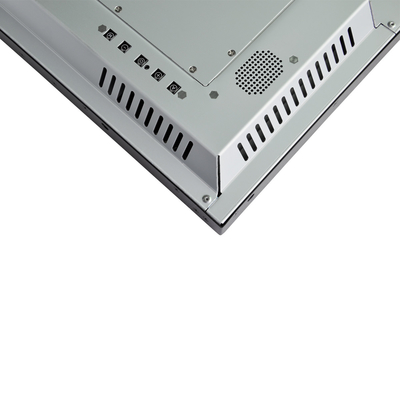

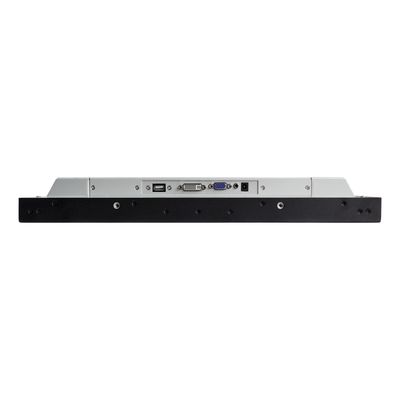

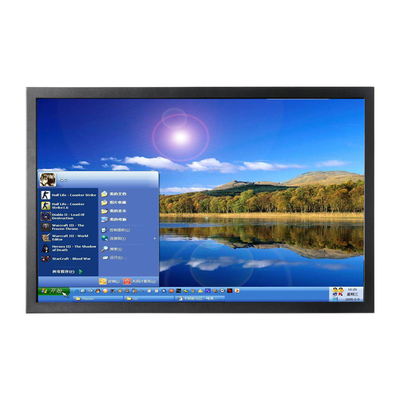

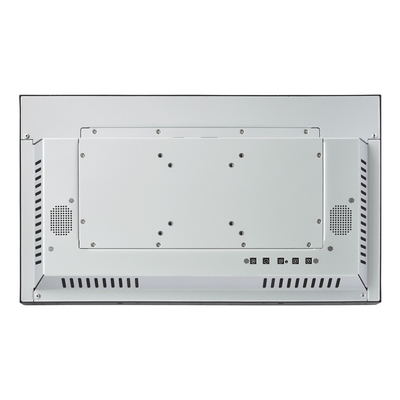

Product Picture
Drawing :
