Product Details:
|
| Touch Type: | Surface Acoustic Wave Touchscreen | Size: | 12.1inch |
|---|---|---|---|
| Warranty: | 1 Year | Application: | Gaming ,retail ,kiosk,health ,care,pos |
| Resolution: | 1024×768 | View Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Touch Point: | 1 Point | Interface: | VGA/DVI/USB//DC12V |
| High Light: | 12.1 Inch SAW Touch Monitor,1024×768 SAW Touch Monitor,USB Surface Acoustic Wave Touchscreen |
||
Application Filed Usage
Self-service Kiosk,Advertising Signage,Whiteboard,Touch Table,Payment ATM,POS,Vending ect.
Industrial / Anti Glare / Anti Reflection / Anti Fingerprint ect.
Tempered / Vandalproof / Waterproof / Anti Sunlight / Dustproof / AR / AG / AF ect option;
Structure Design
Openframe / Wall mounted / Embedded / Landscape / VESA and Brackets Supported ;
About US:
Professional RD team, pre-sales and after-sales service,,Provide you with professional solutions.
Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market.
Our goal is "Innovation First, Quality First, Customer First, Service First". We are committed to providing quality products,
Main Feature
1.Touch function and LCD display all in one solution, performance excellent, good appearance;
2.Higher sensitivity and response speed than same product, very smoothly when touch and draw line;
3.Bottom base detachable, can be wall mounted or bracket installation;
4.High life time, LCD upgrade or change will not cause the touch monitor appearance different;
5.Hight brightness, high contrast ratio, quick response time, multi color support, wide viewing angle;
6.beautiful out-looking, narrow frame design, slender and super thin;
7.National standard professional production line, one million dust-free environment ,screen body and LCD screen fit;
8.Certification: FCC,CE.

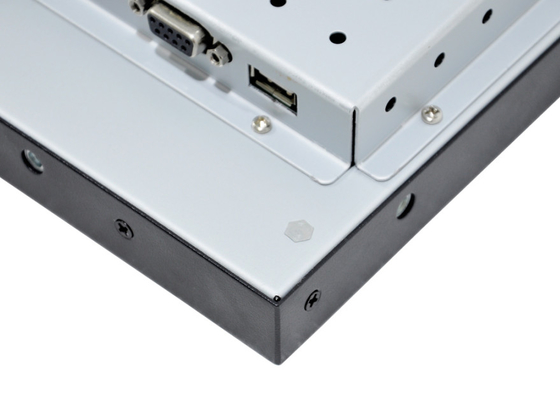

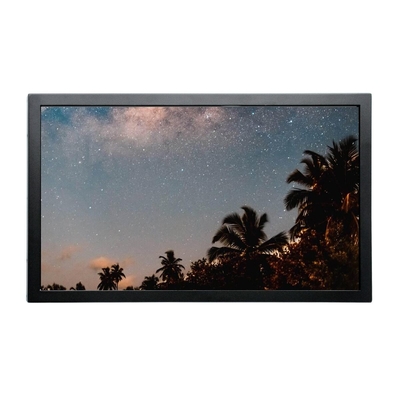

Touch monitor Pictures:
Specification :
| Model | COT121-APF02 |
| Series | Water-proof and Compact |
| Monitor Dimensions | Width: 294mm Height: 254mm Depth: 44.5mm |
| Weight(N.W/G.W) | 4Kg / 7.8Kg (Approx.) |
| LCD Type | 12.1"SXGA Color TFT-LCD (Panel Model :G121EG01 V0) |
| Video Input |
Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally |
| Recommend Resolution | 1024×768 |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 1 years for SAW Sensor; 3 years for controller; 1 year for LCD |
| Agency Approval | FCC,CE |
2.LCD specs
| Active Area(mm) | 245.76 × 184.32 mm (H×V) |
| Resolution | 1024×768 |
| Dot Pitch(mm) | 0.120×0.120 |
| Signal Electrical Voltage Input | 3.3V (Typ.) |
| Viewing angle (v/h) | 80/80/80/80 (Typ.)(CR≥10) |
| Contrast | 700 : 1(Typ.) |
| Luminance(cd/m2) | 450 cd/m² (Typ.) |
| Response Time(Rising/Falling) | 5/11 (Typ.)(Tr/Td) |
| Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Backlight MTBF(hr) | WLED , 30K hours , With LED Driver |
| NOTE:The LCD Specification will change follow the relevant LCD panel brand and model | |
3.Touch screen
| Type | Cjtouch Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | 5v |
Products Drawing :
