Product Details:
|
| Touch Type: | SAW Touchscreen Panel Monitor | Size: | 22 Inch |
|---|---|---|---|
| Warranty: | 1 Year | Application: | Gaming ,retail ,kiosk,health ,care,pos |
| Resolution: | 1680(RGB)×1050 (WSXGA+) 90PPI | View Angle: | 85/85/80/80 (Typ.)(CR≥10) |
| Touch Point: | 1 Point | Interface: | VGA/DVI/USB/RS232/DC12V |
| High Light: | 22 Inch Saw Touch Panel,TFT Saw Touch Panel,Metal Case lcd touch panel |
||
1.2 point multi SAW touch screen monitor
2. High quality panel with strong metal case
3.Competitive price , quickly delivery time
4.Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
5.Compatible with various industrial systems/application.
6.Support non-touch,resistive touch,capacitive touch.
7.Whole system is equipped with WI-FI module,more convennient.
8.Build-in 2.0 speakers,support 1080P HD video.
9.CE,FCC,CCC,ROHS certificate.
10.Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
11.Shock resistance standard reach GB2423,protection during transportation/working on the sea.
12.Anti-static level of contact 4KV(customized MAX 6KV),air 8KV( customized MAX 16KV).
13.Anti surge design,it is proper functioning during Instantaneous voltage rising into 280v.
Specification :
| Model | COT220-APK02 |
| Series | Water-proof and Compact |
| Monitor Dimensions | Width: 528mm Height: 345mm Depth: 54.6mm |
| Weight(N.W/G.W) | 5Kg / 10Kg (Approx.) |
| LCD Type | 22"SXGA Color TFT-LCD (Panel Model :G220EG01 V0) |
| Video Input |
Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally |
| Recommend Resolution | 1680(RGB)×1050 |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 1years for SAW Sensor; 1years for controller; 1 year for LCD |
| Agency Approval | FCC,CE |
2.LCD specs
| Active Area(mm) | 473.76(H)×296.1(V) mm |
| Resolution | 1680(RGB)×1050 |
|
Dot Pitch(mm |
0.094×0.282 mm (H×V) |
| Nominal Input Voltage VDD | 5.0V (Typ.) |
| Viewing angle (v/h) | 85/85/80/80 (Typ.)(CR≥10) |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 250 cd/m² (Typ.) |
| Response Time(Rising/Falling) | 1.3/3.7 (Typ.)(Tr/Td) ms |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 50000 |
| NOTE:The LCD Specification will change follow the relevant LCD panel brand and model | |
3.Touch screen
| Type | Cjtouch Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | +5V@80mA |

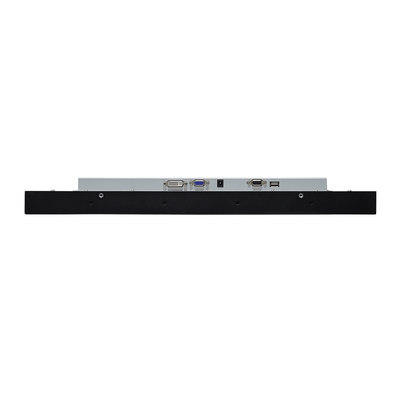

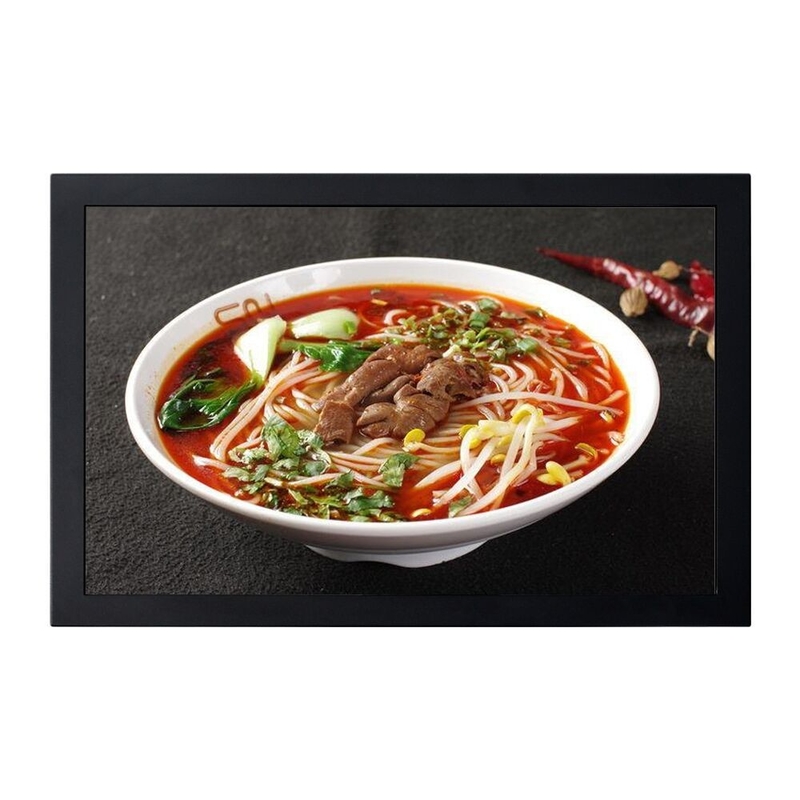

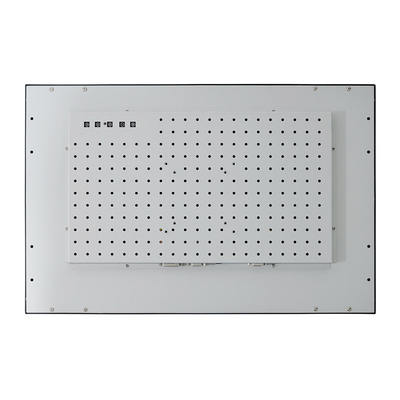

Touch monitor Pictures
Products Drawing :
