Product Details:
|
| Touch Type: | Multi Infrared Touch Panel | Touch Points: | 10 Touch Ponits |
|---|---|---|---|
| Glass: | 4mm Tempered Glass | Input Voltage: | 5V |
| Driver: | Plug And Play | Interface: | USB |
| High Light: | Anti Tamper Infrared Touch Screen,Dustproof Infrared Touch Screen |
||
42"infrared touch screen frame, with/without glass, 10 touch points, USB port support Win7/8/10/Android(Linux support latest version)
4mm toughened glass, glass thickness can be customized, without fear of violence and glare interference
Recommended size 15"-27"including glass packaging
Recommended size 32"-84", excluding glass
Multi-touch, support zoom in, zoom out, drag and drop, high accuracy, writing fluency
For Rail Transit, industrial control, new retail, commercial self-service, and for outdoor
and semi-outdoor
Main feature
Aluminum frame or plastic frame - Dust proof or water proof
3/4 mm tempered glass - Vandal proof
Sunlight readable
Multi touch - 2/4/6/10 touch points
USB 2.0, plug and play
Support windows XP/7/8/10, Android, Linux OS
Where is infrared touch screen used?
Due to these merits, infrared touch screens are used on ATM, factory automation, plant control system, ticketing machiens, medical equipment, Kiosk, POS, interactive whiteboard, other large-size applications, and office automation.
Specification of Product
| MECHANICAL | |
| P/N | CIP Slim series |
| Overlay Thickness | 14.6 mm |
| Overlay Frame Width | 19.1 mm |
| Housing | Aluminum frame/ Plastic frame |
| TOUCH CHARACTERISTICS | |
| Input Method | Finger or touch pen |
| Touch Points | NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points |
| Touch Activation Force | Non Minimum activation force |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | Touch: 6ms |
| Drawing : 6ms | |
| Cursor Speed | 120 dot/sec |
| Glass | 4mm glass Transparency : 92% |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions single touch |
| ELECTRICAL | |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Power | 1.0W (100mA at DC 5V) |
| Anti -Static Discharge (Standard :B) | Touch Discharge,Grade 2:Lab Vol 4KV |
| Air Discharge,Grade 3:Lab Vol 8KV | |
| ENVIRONMENT | |
| Temperature | operating:-10 °C ~ 60 °C |
| storage:-30°C ~ 70 °C | |
| Humidity | operating:20% ~85% |
| storage:0%~95% | |
| Relative Humidity | 40 °C,90% RH |
| Anti – glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Interface | USB2.0 full speed |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
| Software(Firmware) | |
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
| VID | 1FF7 |
| PID | 0 013 |

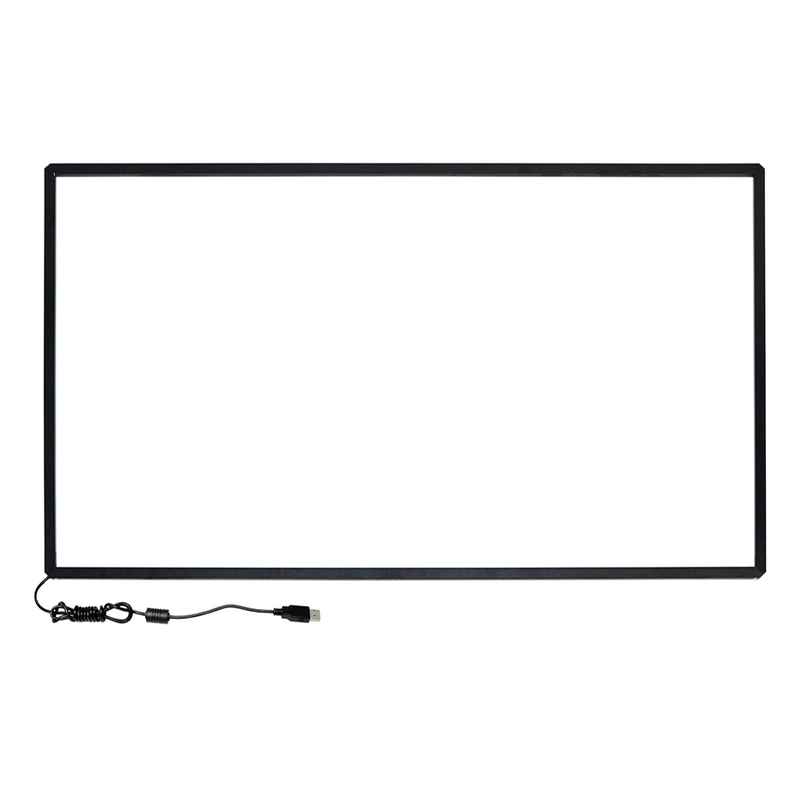

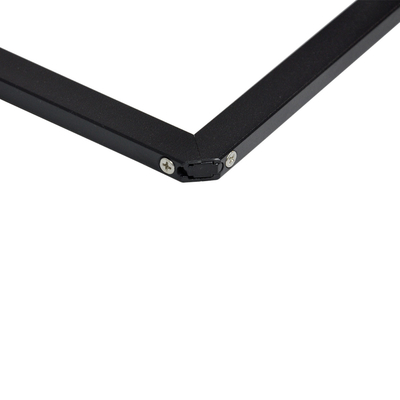

Picture of Product
Technical Drawing
