40" Antiglare Infrared Touch Screen For Advertising Display 10points Touch

40" Antiglare Infrared Touch Screen For Advertising Display 10points Touch
40" Antiglare Infrared Touch Screen For Advertising Display 10points Touch 40" Antiglare Infrared Touch Screen For Advertising Display 10points Touch

Large Image :  40" Antiglare Infrared Touch Screen For Advertising Display 10points Touch

Product Details:
Place of Origin: China
Brand Name: CJTOUCH
Certification: CE / FCC
Model Number: CIP400AP-4K-DNA10
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 1pcs or 20pcs in a carton
Delivery Time: 1-2 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500pcs/week

40" Antiglare Infrared Touch Screen For Advertising Display 10points Touch

Description
Touch Type: Infrared Multi Touch Screen Touch Points: 10 Touch Ponits
Glass: 4mm Tempered Glass Input Voltage: 5V
Driver: Plug And Play Interface: USB
High Light:

Antiglare Infrared Touch Screen

,

10points Infrared Touch Screen

Multi Infrared Touch screen 40" 10 touch points IR touch screen for Advertising Display

Our 40inch Infrared touch screen support 10 touch points,USB interface,plug and paly,metal frame with 4mm vandalproof glass.An infrared touchscreen device emits infrared light across the interface, which is picked up by various sensors, typically located on the edges or corners. The infrared light is invisible to the naked eye.This makes it particularly beneficial when used to produce large touchscreen displays.

 Typical Applications:
·Vandal proof,wear-resistant
·Maintenance free,longer life expectancy
·Fault tolerance design to ensure reliability Indoor/outdoor kiosk
·Versatile touch object ·In-vehicles and transportation
·Super transparency ·Medical instrument
·Integrated controller ·Industrial control systems
·Gesture support for E2-series ·Gaming machine
·Operable in various light conditions Ticket machine indoor and outdoor



Specification of Product

MECHANICAL
P/N CIP Slim series
Overlay Thickness 14.6 mm
Overlay Frame Width 19.1 mm
Housing Aluminum frame/ Plastic frame
TOUCH CHARACTERISTICS
Input Method Finger or touch pen
Touch Points NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points
Touch Activation Force Non Minimum activation force
Position Accuracy 1mm
Resolution 4096(W)×4096(D)
Response Time Touch: 6ms
Drawing : 6ms
Cursor Speed 120 dot/sec
Glass 4mm glass Transparency : 92%
Object Touch Size ≥ Ø5mm
Touch Intensity Over 60 millions single touch
ELECTRICAL
Operating Voltage DC 4.5V ~ DC 5.5V
Power 1.0W (100mA at DC 5V)
Anti -Static Discharge (Standard :B) Touch Discharge,Grade 2:Lab Vol 4KV
Air Discharge,Grade 3:Lab Vol 8KV
ENVIRONMENT
Temperature operating:-10 °C ~ 60 °C
storage:-30°C ~ 70 °C
Humidity operating:20% ~85%
storage:0%~95%
Relative Humidity 40 °C,90% RH
Anti – glare Test Incandescent lamp (220V,100W) ,
operating distance over 350mm
Altitude 3,000m
Interface USB2.0 full speed
Seal Ability IP64 Anti-Spill (Customizable to IP65 Waterproof)
Working Environment Directly Under sunlight ,indoor and outdoor
Application of Display Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks
Software(Firmware)
Operate system Windows 7,Windows 8,Windows 10, Andriod,Linux
Calibration tool Precalibrated & Software can be download in CJTouch Website
VID 1FF7
PID 0 013

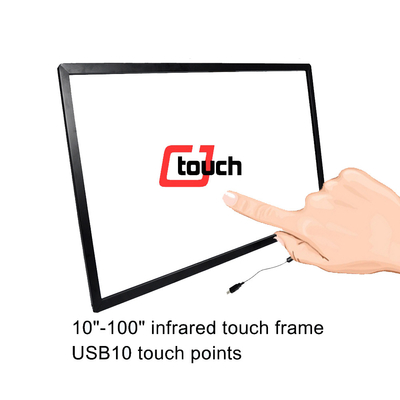

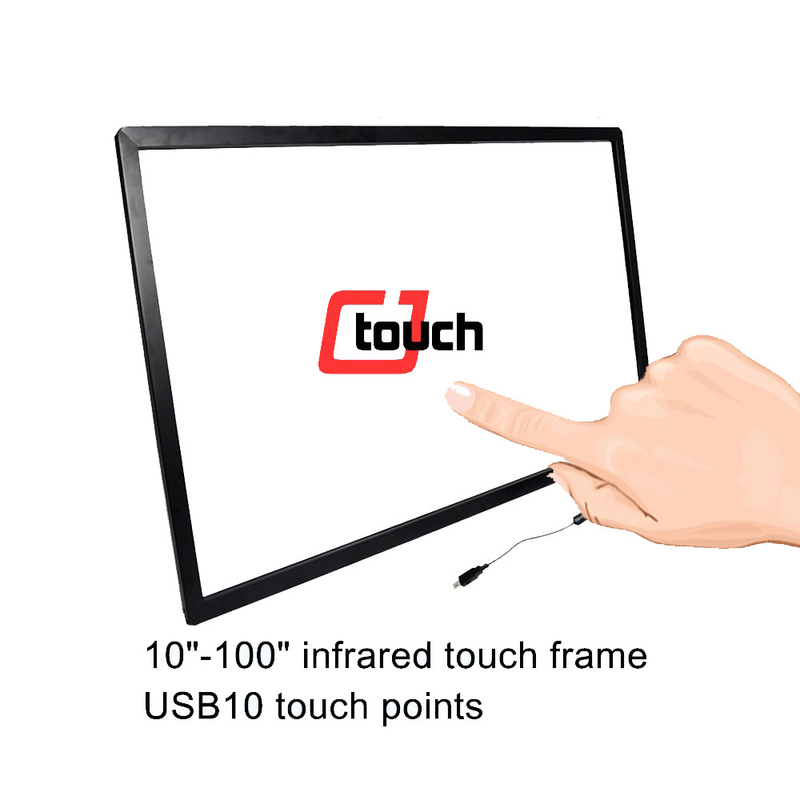

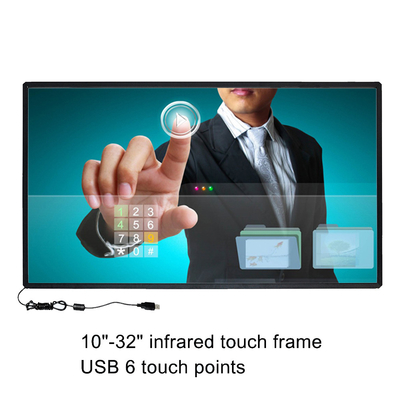

Picture of Product

40" Antiglare Infrared Touch Screen For Advertising Display 10points Touch 040" Antiglare Infrared Touch Screen For Advertising Display 10points Touch 1

Technical Drawing

40" Antiglare Infrared Touch Screen For Advertising Display 10points Touch 2
