Product Details:
|
| Touch Type: | IR Industrial Touch Screen Panel | Touch Points: | 2,4,6 Touch Ponits |
|---|---|---|---|
| Glass: | 3mm Tempered Glass | Input Voltage: | 5V |
| Driver: | Plug And Play | Interface: | USB |
| High Light: | 27Inch Infrared Touch Screen Monitor,OEM Infrared Touch Screen Monitor,Indoor IR Touch Overlay Screen |
||
Main Features:
No film overlay, preserves optical clarity
Interpolated4096x4096·Fast response speed
Finger,glove,pen,any object>8mm diameter
Maintenance free
Vandal proof,wear-resistant,tempered glass
IP64 rugged conditions operable:fog,rain, snow Operable in various light conditions,indoor and outdoor
No need for extra controller integration
Designed to work from-41C to 70C
Fault tolerance design to ensure reliability·
We also can offer 27" IRtouch screen with waterprrof,the waterproof technology of infrared touchscreen, which can be operated with Works with water,dust,oil,moisten and provides a high quality touch experience under harsh condition. CJtouch offers both standard and custom.
An infrared touchscreen device emits infrared light across the interface, which is picked up by various sensors, typically located on the edges or corners. The infrared light is invisible to the naked eye. This makes it particularly beneficial when used to produce large touchscreen displays.
Specification of Product
| MECHANICAL | |
| P/N | CIN Slim series |
| Overlay Thickness | 7.9 mm |
| Overlay Frame Width | 18.5 mm |
| Housing | Aluminum frame/ Plastic frame |
| TOUCH CHARACTERISTICS | |
| Input Method | Finger or touch pen |
| Touch Points | NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points |
| Touch Activation Force | Non Minimum activation force |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | Touch: 6ms |
| Drawing : 6ms | |
| Cursor Speed | 120 dot/sec |
| Glass | 3mm glass Transparency : 92% |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions single touch |
| ELECTRICAL | |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Power | 1.0W (100mA at DC 5V) |
|
Anti -Static Discharge (Standard :B) |
Touch Discharge,Grade 2:Lab Vol 4KV |
| Air Discharge,Grade 3:Lab Vol 8KV | |
| ENVIRONMENT | |
| Temperature | operating:-10 °C ~ 60 °C |
| storage:-30°C ~ 70 °C | |
| Humidity | operating:20% ~85% |
| storage:0%~95% | |
| Relative Humidity | 40 °C,90% RH |
| Anti – glare Test |
Incandescent lamp (220V,100W) , operating distance over 350mm |
| Altitude | 3,000m |
| Interface | USB2.0 full speed |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
| Software(Firmware) | |
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
| VID | 1FF7 |
| PID | 0013 |

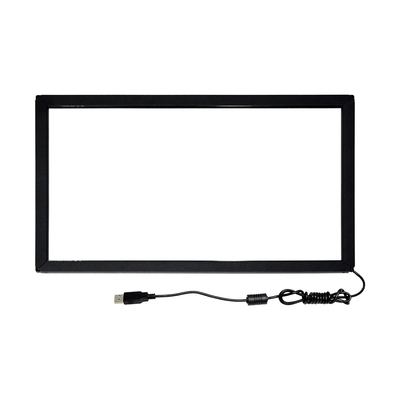

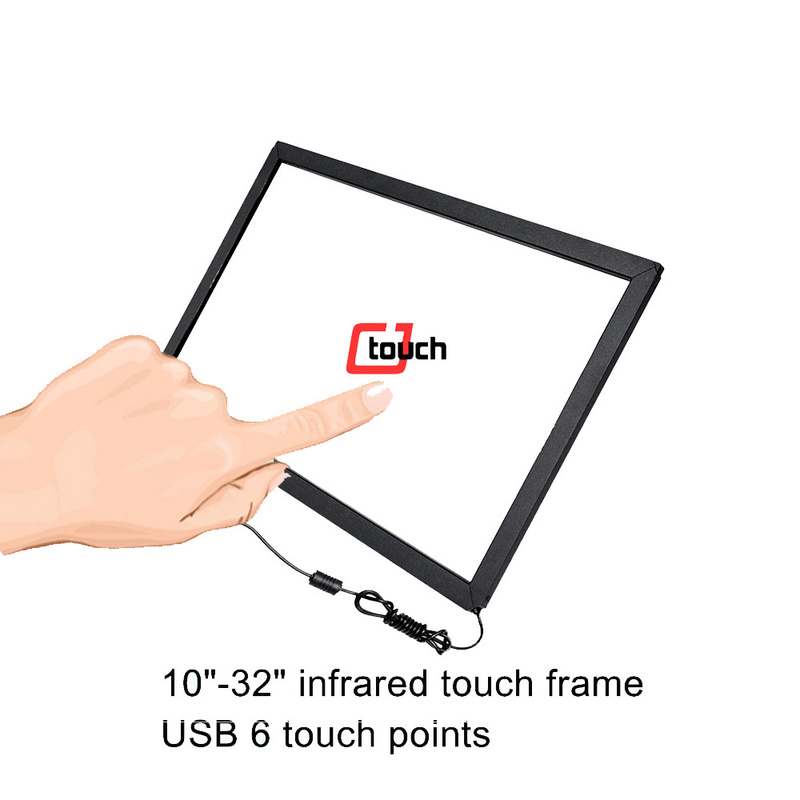

Picture of Product
Technical Drawing
