Durable 21.5 Inch IR Touch Screen Panel For Laptop Tablet Desktop

Durable 21.5 Inch IR Touch Screen Panel For Laptop Tablet Desktop
Durable 21.5 Inch IR Touch Screen Panel For Laptop Tablet Desktop Durable 21.5 Inch IR Touch Screen Panel For Laptop Tablet Desktop

Large Image :  Durable 21.5 Inch IR Touch Screen Panel For Laptop Tablet Desktop

Product Details:
Place of Origin: China
Brand Name: CJTOUCH
Certification: CE / FCC
Model Number: CIN215AP-3K-NA2
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 1pcs or 20pcs in a carton
Delivery Time: 1-2 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500pcs/week

Durable 21.5 Inch IR Touch Screen Panel For Laptop Tablet Desktop

Description
Touch Type: Multi IR Touch Screen Touch Points: 2, 4, 6 Touch Points
Glass: 3mm Tempered Glass Input Voltage: 5V
Driver: Plug And Play Interface: USB
High Light:

IR Touch Screen Panel For Laptop

,

IR Touch Screen Panel For Tablet

21.5 inch IR multi touch screen panel for laptop/tablet/desktop

Advantages of our Infrared IR Touch Frame:

High Reliablity IR Touch Frames Series

Multi-touch 2-4-6-10 points

High Compatibility of hardware & Software

Support Operation System Xp/Win7/Win8/Win10/Linux/Android

Perfect Anti-Sun IR Touch Screen Series

How do infrared touch screens detect touch?

An infrared touchscreen uses infrared emitters and receivers to create an invisible grid of infrared light beams across the screen. A sensor detects a person's touch when an object interrupts the light beams. This enables multi-touch and also does not require the user to apply pressure to register a touch.

Full frame IR touch ,support 6 points touch and 6 points writing

Multi-person writing at the same time, more than one students answer questions on machine

Infrared touch screens through various touch panel structures including anti sacratched glass layers.
Due to its highly durable and smooth surface,infrared touch screen is suitable for industrial touchscreen display applications,Gaming.



Specification of Product

MECHANICAL
P/N CIN Slim series
Overlay Thickness 7.9 mm
Overlay Frame Width 18.5 mm
Housing Aluminum frame/ Plastic frame
TOUCH CHARACTERISTICS
Input Method Finger or touch pen
Touch Points NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points
Touch Activation Force Non Minimum activation force
Position Accuracy 1mm
Resolution 4096(W)×4096(D)
Response Time Touch: 6ms
  Drawing : 6ms
Cursor Speed 120 dot/sec
Glass 3mm glass Transparency : 92%
Object Touch Size ≥ Ø5mm
Touch Intensity Over 60 millions single touch
ELECTRICAL
Operating Voltage DC 4.5V ~ DC 5.5V
Power 1.0W (100mA at DC 5V)

Anti -Static Discharge

(Standard :B)

Touch Discharge,Grade 2:Lab Vol 4KV
  Air Discharge,Grade 3:Lab Vol 8KV
ENVIRONMENT
Temperature operating:-10 °C ~ 60 °C
  storage:-30°C ~ 70 °C
Humidity operating:20% ~85%
  storage:0%~95%
Relative Humidity 40 °C,90% RH
Anti – glare Test

Incandescent lamp (220V,100W) ,

operating distance over 350mm

Altitude 3,000m
Interface USB2.0 full speed
Seal Ability IP64 Anti-Spill (Customizable to IP65 Waterproof)
Working Environment Directly Under sunlight ,indoor and outdoor
Application of Display Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks
Software(Firmware)
Operate system Windows 7,Windows 8,Windows 10, Andriod,Linux
Calibration tool Precalibrated & Software can be download in CJTouch Website
VID 1FF7
PID 0013



Picture of Product

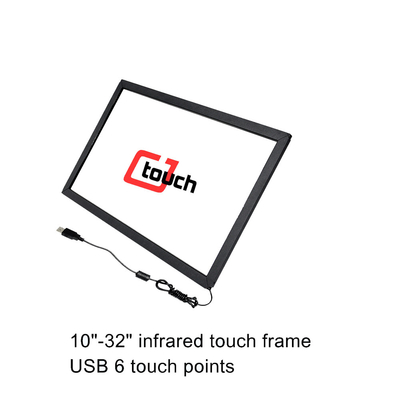

Durable 21.5 Inch IR Touch Screen Panel For Laptop Tablet Desktop 0

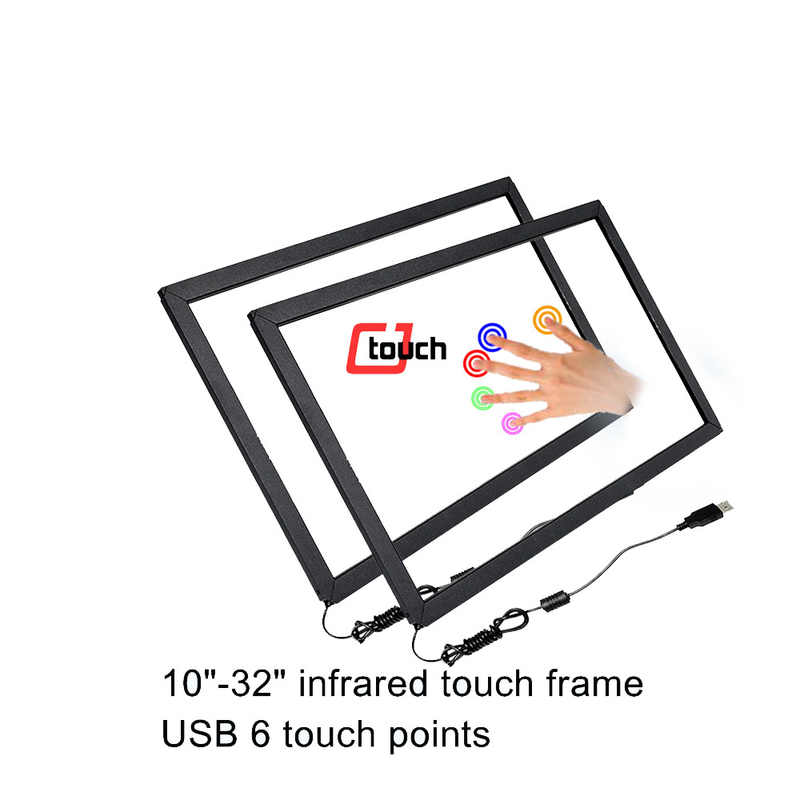

Durable 21.5 Inch IR Touch Screen Panel For Laptop Tablet Desktop 1





Technical Drawing



Durable 21.5 Inch IR Touch Screen Panel For Laptop Tablet Desktop 2
