Product Details:
|
| Abbreviation: | Capacitive Screens | Touch: | Capacitive Touch Screen |
|---|---|---|---|
| Interface: | USB | Touch Type: | PCAP Touch Screen |
| Touch Points: | 10 Touch Points | Cover Lens: | 3mm |
| Input: | Hand Writing Or Capacitive Pen | Humidity Resistance: | 85% RH, 120 H |
| High Light: | Vandalproof Projected Capacitive Screen,5V Projected Capacitive Screen,19 Inch PCAP Touch Monitor |
||
19 inch PCAP Touch Screen with USB Interface Capacitive touchscreen, Multi-Touch Point PCT
Projected Capacitive (PCAP) touch screens offer the user friendly multi-touch experience, associated with smartphones and tablets, operating with very light touch through a highly durable glass surface.
CJtouch projected capacitive touch screen kits provide a high quality Glass on Glass sensor construction bundled with a discrete controller board, for commercial applications.
CJTOUCH PCAP innovations include a patented group controller, where a common controller serves a range of screen sizes to simplify design and reduce inventory costs. The controller offers USB-HID compatibility with major operating systems, simplified product development and accelerated time to market.
What is PCAP touch screen?
Projected Capacitive (PCAP) touch screens offer the user friendly multi-touch experience, associated with smartphones and tablets, operating with very light touch through a highly durable glass surface .
Typical Application
Main Feature
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

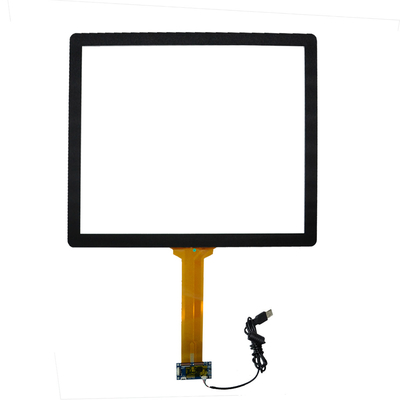

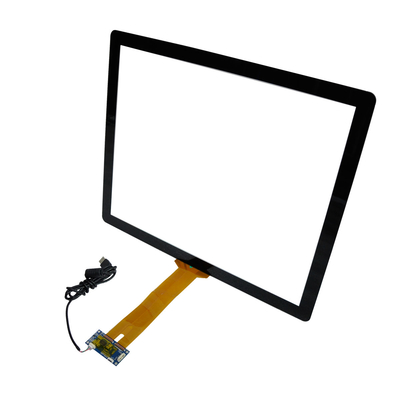

Picture of Product
Technical Drawing
