Product Details:
|
| Touch Type: | Infrared Sensor Touch Screen | Touch Points: | 2,4,6 Touch Ponits |
|---|---|---|---|
| Glass: | 3mm Tempered Glass | Input Voltage: | 5V |
| Driver: | Plug And Play | Interface: | USB |
| High Light: | Vandal Proof Infrared Touch Screen,Infrared Touch Screen With 3mm Glass |
||
Main feature
CJTouch Infrared touch screens operate in extreme temperature, shock, vibration, and lighting conditions. The display is protected by a choice of glass or acrylic overlays optimized for optical clarity, security, or safety.CJTouch’s infrared touch screens provide optical sensor technology for applications in harsh or glass-free environments. Featuring a low profile with nearly pixel-level touch resolution and no parallax.CJTouch touch screens provide stable, drift-free operation while delivering an extremely sensitive, accurate touch response with no touch activation force required.
Specification of Product
| MECHANICAL | |
| P/N | CIN Slim series |
| Overlay Thickness | 7.9 mm |
| Overlay Frame Width | 18.5 mm |
| Housing | Aluminum frame/ Plastic frame |
| TOUCH CHARACTERISTICS | |
| Input Method | Finger or touch pen |
| Touch Points | NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points |
| Touch Activation Force | Non Minimum activation force |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | Touch: 6ms |
| Drawing : 6ms | |
| Cursor Speed | 120 dot/sec |
| Glass | 3mm glass Transparency : 92% |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions single touch |
| ELECTRICAL | |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Power | 1.0W (100mA at DC 5V) |
|
Anti -Static Discharge (Standard :B) |
Touch Discharge,Grade 2:Lab Vol 4KV |
| Air Discharge,Grade 3:Lab Vol 8KV | |
| ENVIRONMENT | |
| Temperature | operating:-10 °C ~ 60 °C |
| storage:-30°C ~ 70 °C | |
| Humidity | operating:20% ~85% |
| storage:0%~95% | |
| Relative Humidity | 40 °C,90% RH |
| Anti – glare Test |
Incandescent lamp (220V,100W) , operating distance over 350mm |
| Altitude | 3,000m |
| Interface | USB2.0 full speed |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
| Software(Firmware) | |
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
| VID | 1FF7 |
| PID | 0013 |

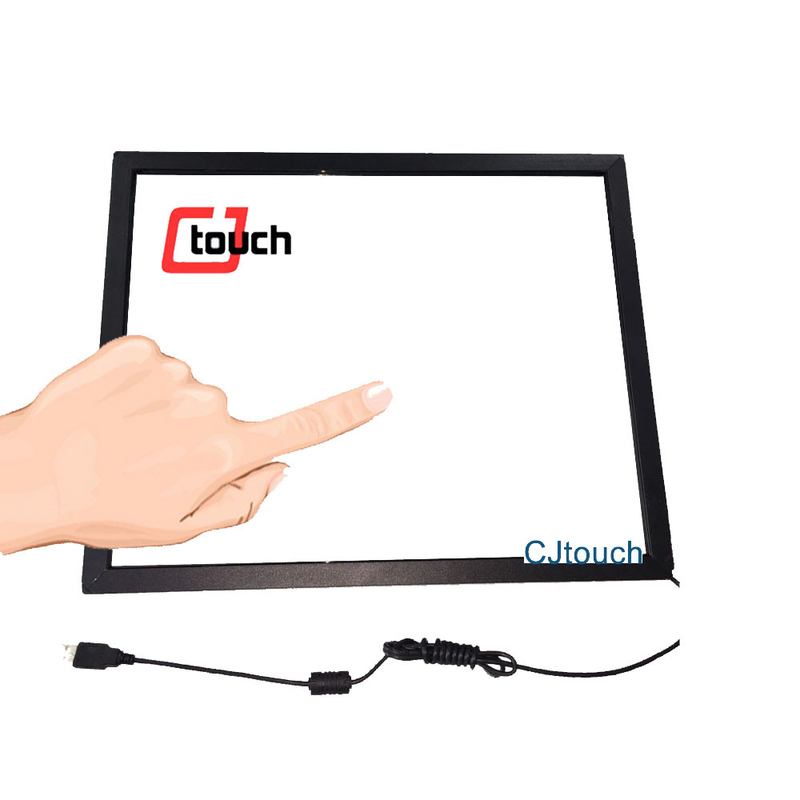

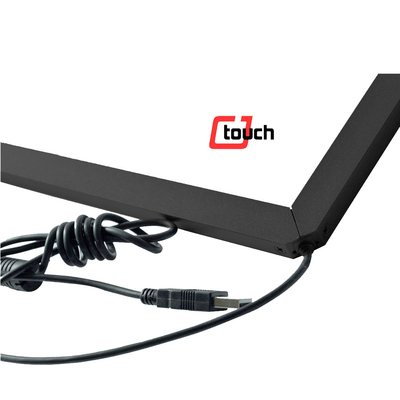

Picture of Product
Technical Drawing
