Product Details:
|
| Type: | 5 Wire Resistive Touch Screen | Wire: | 5wires |
|---|---|---|---|
| Interface Type: | USB | Touch Points: | 1 Touch Points |
| Cover Lens: | 1mm | Input Voltage: | 5V |
| Response: | <15ms | Customized: | Support |
| High Light: | 10.4 Inch Multi Touch Resistive Touchscreen,Multi Touch Resistive Touchscreen 5 Wires,5 Wires Resistive Lcd Touch Screen |
||
In electrical engineering, a resistive touchscreen is a touch-sensitive computer display composed of two flexible sheets coated with a resistive material and separated by an air gap or microdots.
Is there structural difference between 4-wire and 5-wire technologies?
Just same as analog 4-wire resistive technology, an analog 5-wire resistive sensor consists of top and bottom sheets which are facing each other with a gap in between. Unlike analog 4-wire resistive technology, electrodes are placed on four corners of the bottom sheet in analog 5-wire technology. The sensing process is as below
Are resistive touch screens good?
A resistive touch screen is made of several layers. A capacitive touch screen consists of an insulator coated with a transparent conductor.
How does a resistive touch screen work?
In simple terms, a Resistive Touch Screen is a touch-sensitive computer display that responds by applying pressure.When contact is made to the surface of the touchscreen, these two sheets are pressed together. Each sheet has horizontal and vertical lines that register the precise location of the touch.
Main Feature
Specification of Product
| 5 Wires Resistive Touch Panel Specification | |
| General Size | 10.4 inch To 22 inch |
| Fit in with | Panel display device |
| Mechanical | |
| Input Method | Finger or gloved hand (rubber ,cloth or leather) |
| Active Force | Stylus or Finger or Similar <45g~110g |
| Ball Impact | ø13.0. Steel Ball/9g, Height=30cm, 1 time, no damage [Impact at center area] |
| Durability | >35 million touches |
| Positional Accuracy | <1.5% |
| Optical | |
| Light Transmission | 82% |
| Clear surface | <3% |
| Anti-glare Surface | <4% |
| Anti-Newton | <10% |
| Gloss | 90±20 gloss units tested on a hard-coated front surface Accordance with ASTM D 2457 |
| Electrical | |
| Supply voltage | DC5V |
| Circuit Resistance | X:20~25Ω0, Y:20~250Ω |
| Linearity | X<1.5%, Y<1.5% |
| Response | <15ms |
| Insulation | >20MΩ/25V(DC) |
| Endurance | No acting damage at DC50V/60sec. |
| Resolution | Based on controller resolution of 4096 x 4096 |
| Environmental | |
| Operation Temperature | -10°C ~ +60°C |
| Operation Humidity | 20%RH ~ 85%RH, no condensing |
| Storage Temperature | -40°C ~ +80°C |
| Storage Humidity | 10%RH ~ 90%RH, no condensing |
| Waterproof | Not damaged by running water applied to the active area |
| Reliability | |
| Heat Cycle | 70°C /240 hrs |
| Cold Cycle | -40°C /240 hrs |
| Thermal Cycle | -40°C ~7°0C [60 min./cycle] *10 cycles |
| Operationg System | |
| Operation System | Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/ 7 /Mac OS |
| Warranty | |
| Touch screen 1 years | |
| Touch Controller 1 years | |

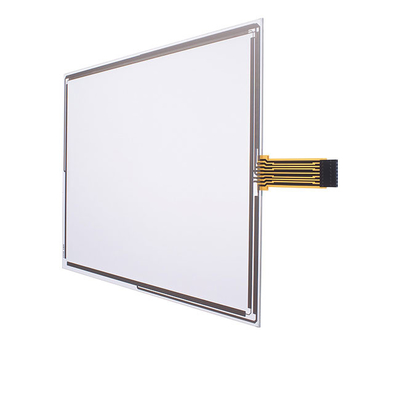

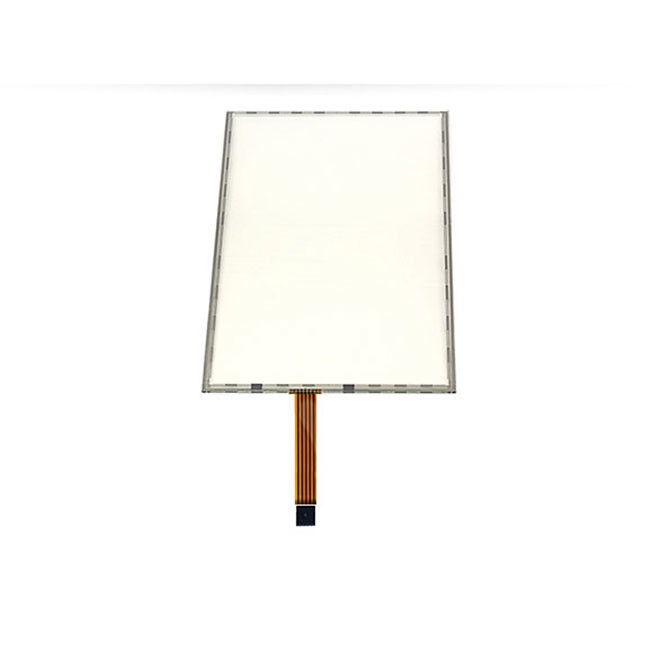

Picture of Product
