Product Details:
|
| Touch Type: | SAW Touch Monitor | Size: | 19 Inch |
|---|---|---|---|
| Warranty: | 1 Year | Application: | Gaming ,retail ,kiosk,health ,care,pos |
| Resolution: | 1280*1024 | View Angle: | 85/85/80/80 |
| Touch Point: | 1 Point | Interface: | VGA/DVI/USB/RS232/DC12V |
| High Light: | 19 Inch SAW Touch Monitor,1Point SAW Touch Monitor,SAW Open Frame Touch Screen Monitor |
||
This monitor will come with 4mm/6mm Industrial touch screen,
Waterproof, dust-proof, Anti-glare, Anti-vandal are optional.
Multiple mounting options including rear Mount and VESA mounting
Can do USB and RS232 touch interface, DVI, HD-MI, VGA video input optional
Saw touch screen panel with controller 8-42''
Infrared touch screen overlay 12.1-84''
Projected/sur face capacitive touch screens
Open Feame touch screen monitor 8''-32''
E-L-0 compatible touch screen monitors
High Brightness touch monitors 8''-32''
Desktop touch screen monitor 15-17-19''
Touch Screen Monitor
Series: metal-cased open frame dustproof type
Size: 415mm*343mm*55mm
LCD Type:SXGA Color TFT-LCD
OSD control: [auto]+[menu]+[power], Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Mount interface: VESA 75mm and 100m + mount bracket
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single Multi-touch screens (custom sizes available)
Single Multi-touch monitors (custom sizes and functions available)
All-in-one computers
ODM/OEM services
Specification :
| Model | COT190E-AWF02 |
| Series | Water-proof and Compact |
| Monitor Dimensions | Width: 415mm Height: 343mm Depth: 55mm |
| Weight(N.W/G.W) | 5Kg / 7.8Kg (Approx.) |
| LCD Type | 19"SXGA Color TFT-LCD (Panel Model :G190EG01 V0) |
| Video Input |
Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally |
| Recommend Resolution | 1280×1024@75Hz |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 1 years for SAW Sensor; 3 years for controller; 1 year for LCD |
| Agency Approval | FCC,CE |
2.LCD specs
| Active Area(mm) | 379.72×304.46 |
| Resolution | 1280×1024@75Hz |
| Dot Pitch(mm) | 0.098×0.294 (H×V) |
| Nominal Input Voltage VDD | +5.0V(Typ) |
| Viewing angle (v/h) | 85°/80° |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 450 |
| Response Time(Rising/Falling) | 1.3/3.7 (Typ.) |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 50000 |
| NOTE:The LCD Specification will change follow the relevant LCD panel brand and model | |
3.Touch screen
| Type | Cjtouch Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | +5v |

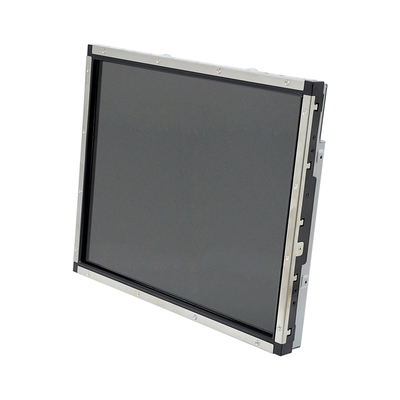

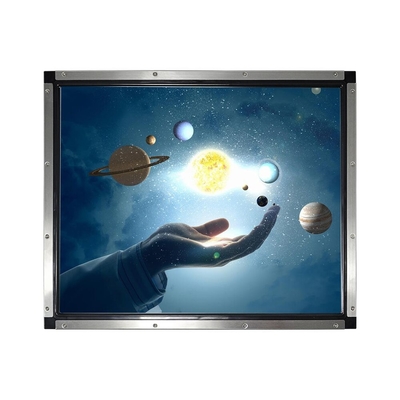

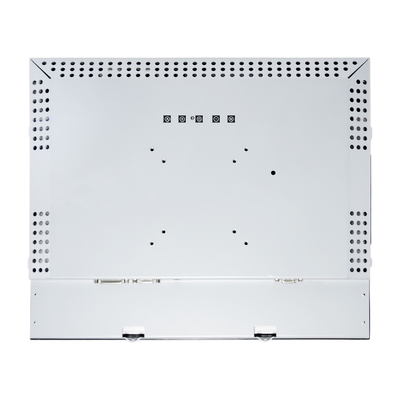

Touch monitor Pictures
Products Drawing :
