Product Details:
|
| Type: | IR Touch Screen | Frame: | Metal Front Frame |
|---|---|---|---|
| Interface: | VGA/DVI/USB/HDMI/DC12V | Touch Point: | 2,4，6 Points Option |
| Application: | Gaming ,retail ,kiosk,care,education | Warranty: | 1 Year |
| Resolution: | 1280*1024 | Color: | Black |
| High Light: | Dustproof Infrared Touch Monitor,390mm Infrared Touch Monitor,Led Touch Screen Monitor For Kiosk |
||
1-10 point real multi touch
Aluminum frame /LED/LED display
Free for 1 year warranty
Optional size:10.4'' 12.1'15''15.6''17''18.5''19''21.5''22''23.6''27''...........
Can Customizable vanfalprool /waterproof /dusproof/Anti Sunlight/AG/AR/AF Glass option.
Specification:
|
General information |
|
| Model | COT170-IPF03 |
| Series | Dust-proof and compact |
| Monitor Dimentions | Width:390mm Height: 322mm Depth: 51.4mm |
| LCD Type | 17’’ a-Si TFT-LCD |
| Video Input | VGA, DVI,HDMI. |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | Mount bracket, horizontal or vertical |
| Warranty | 1 year for complete unit |
| LCD Specification | |
|
Active Area(mm) |
337.92(H)×270.336(V) |
| Resolution | 1280×1024 |
| Pixel Pitch(mm) | 0.264×0.264 (H×V) |
| Nominal Input Voltage | +5V(Typ) |
| Viewing Angle (v/h) | 85/85/80/80 (Typ.) |
|
Contrast |
3000:1 |
| Luminance(cd/m2) | 300 |
| Interface | LVDS |
| Response Time(Rising/Falling) | 7/5 (Typ.)(Tr/Td) ms |
|
Support Color |
16.7M |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification | |
| Type | Cjtouch infrared touch screen |
| Multi touch | 2 points touch |
| Touch Life Cycle | 50 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240V AC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |

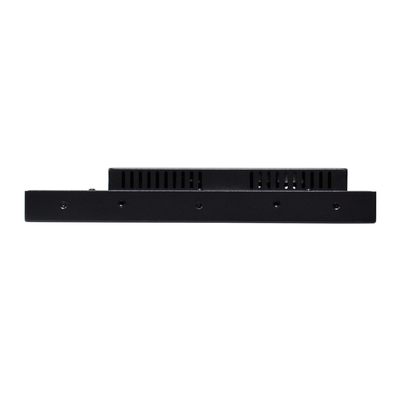

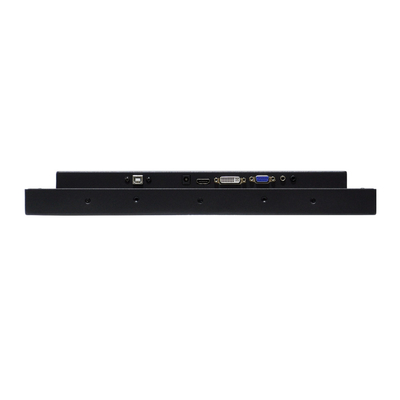

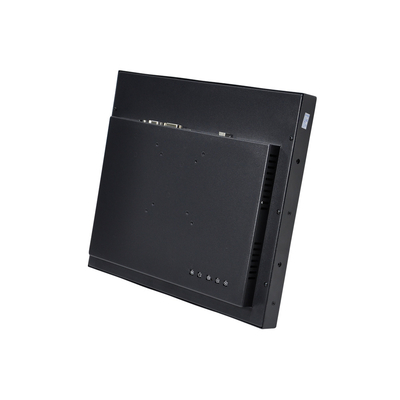

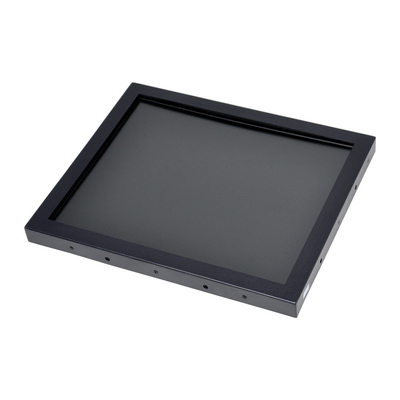

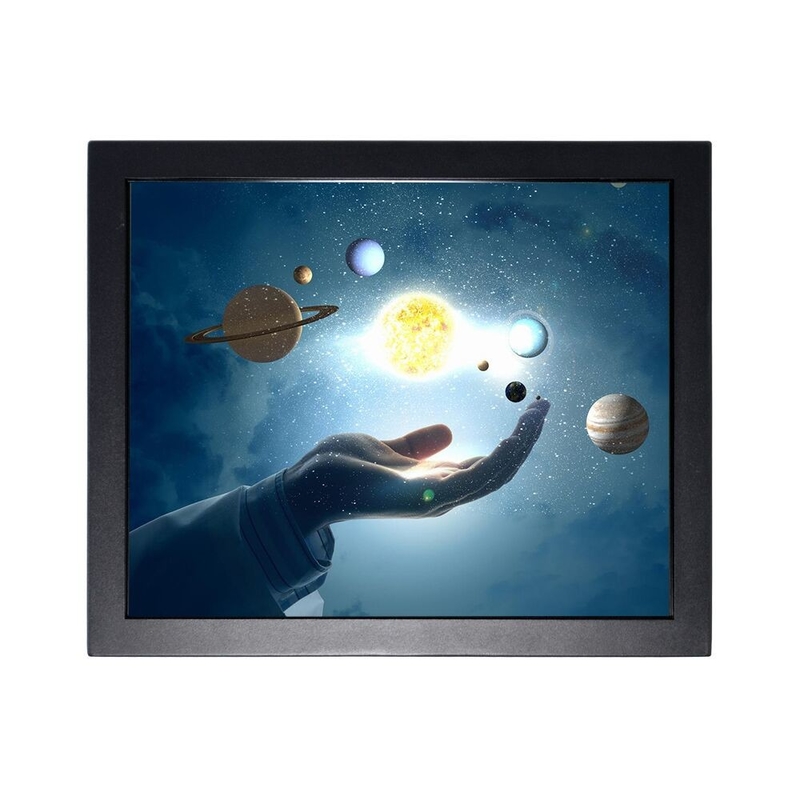

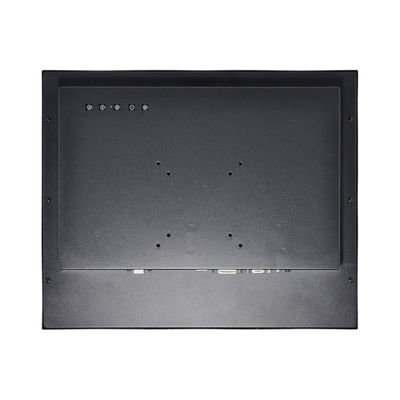

Product Picture
Drawing :
Who we are ?
We CJTOUCH Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 12years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We can offer ?
♦ IR touch screen/Frame
♦ SAW touch screen
♦ PCAP touch screen panel
♦ 4wire/5wire resistive touch screen
♦ PCAP/NANO touch foil/film
♦ PCAP flat screen touch monitor
♦ SAW touch screen monitor
♦ IR Open frame touch display
♦ Desktop touch monitor
♦ Desktop all in one touch PC
♦ PCAP all in one touch computer
♦ Bar lcd panel
♦ High brightness advertising player/advertising machine
♦ Curved touch display
♦ Full bonding TFT lcd panel with touch screens
♦ Touch monitor with mirror
♦ OEM/ODM/Customization
