Product Details:
|
| Touch Technology: | Capacitive Touch Screen Monitor | Size: | 15 Inch |
|---|---|---|---|
| Frame: | Metal Front Frame | Viewing Angle (v/h): | 80°/80° |
| Resolution: | 1024×768@60Hz | Contrast: | 500:1 |
| Touch Points: | 10 Points Touch | Luminance(cd/m2): | 250 |
| Application: | Gaming, Retail, Kiosk, Health Care, Education | Warranty(Year): | 1 Year |
| High Light: | 15Inch 10 Point Touch Screen Monitor,PCAP 10 Point Touch Screen Monitor,High Sensitivity PCAP Touchscreens |
||
Unlike resistive touch screen, capacaitive touch screen does not rely on fingers to create and change voltage values to detect coordinates. Capacitive scrrens work through anything that holds and electric charge including human skin. CJTOUCH PCAP touch monitors are vandal-proof and waterproof. With the resistance to light interference, it is applicable to harsh environment.
Simple desigh with good stability performance
Ture flat touchscreen desigh
Support 10 points multi touch
HDMI/VGA/DVI, USB interface. Easy to use
With 3mm tempered glass, waterproof/ vandalproof/ dustproof/ sunlight readable option
Operation system: Wins/ Linus/ Andriod
Customer customization can be accepted
Application: Self service kiosk. Advertising signage, Interactive whiteboard, Vending machine ect.
Warranty: 1 year
14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/PC
15 inch Capacitive touch monitor specification :
| General | |
| Model | COT150-CFF03 |
| Series | Water-proof and Open frame |
| LCD Type | 15” Active matrix TFT-LCD |
| Video Input | VGA ,DVI and H-DMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 304.128(H)×228.096(V) |
| Resolution | 1024×768@60Hz |
| Dot Pitch(mm) | 0.297×0.297 |
| Nominal Input Voltage | +3.3V(Typ) |
| Viewing angle (v/h) | 80°/80° |
| Contrast | 500:1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising) | 8ms/12ms |
| Support color | 16.2M |
| Backlight MTBF(hr) | 50000 |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 10points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |

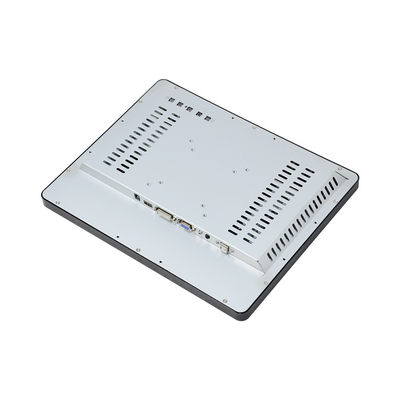

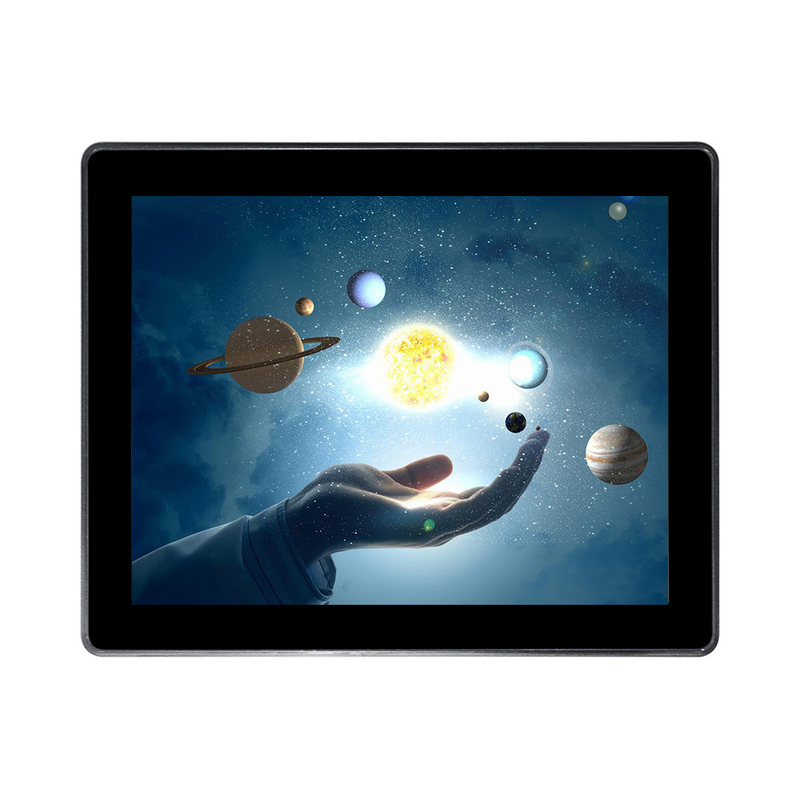

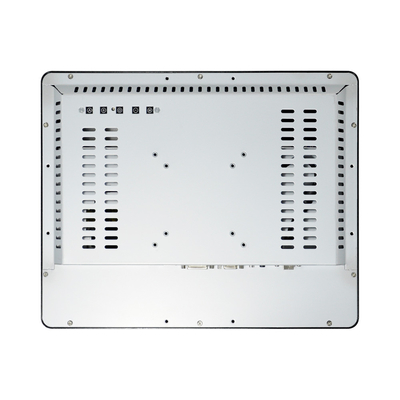

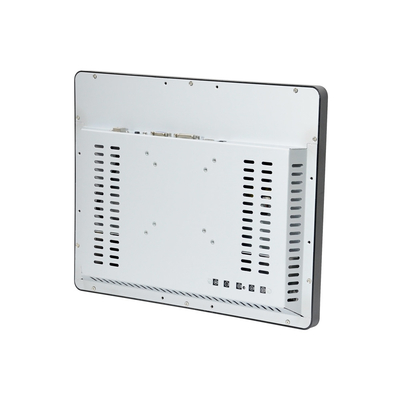

15 inch Capacitive touch monitor pictures:
15 inch Capacitive touch monitor drawing:
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
