Product Details:
|
| Product Name: | Infrared Ir Touch Screen LCD Monitor | Brightness: | 1000cd/m2 |
|---|---|---|---|
| Response Time: | Less Than 15ms | Resolution: | 800×600 |
| Materials: | Metal | Interface: | VGA/DVI/USB/HDMI/DC12V |
| Touch Point: | 1-10 Points Option | Application: | Gaming ,retail ,kiosk,care,education |
| High Light: | OEM Infrared Touch Monitor,12.1 Inch Infrared Touch Monitor,1000cd/M2 Infrared Touch Monitor Screen |
||
Infrared Touch screen monitor Main Features
1. LCD panel with wide temperature can work 24hours
2. Long lasting product cycle-enclosure controlled by WiViKiosk specifications
3. Future generation panels phased-in without external changes
4. High brightness, high contrast, fast response time, multi-color support, wide viewing angle
5. A variety of mounting options, including horizontal mounting bracket mounting, vertical mounting bracket mounting, VESA standard mounting, and customer self-designed mounting
6. Flat-panel capacitive touch for a stable and sensitive touch experience and high-definition visual enjoyment
7. Can adapt to various customization requirements of customers
Our advantage
1.Infrared multi touch frame ,supports 10,20,32,64 precise touch points ,Driver free
2.USB plug and play,Sizes from 15" to 800" (4:3 ,16:9, 16:10)
3.Custom Sizes Available,Easy to Install
4.Waterproof optional,High Stability / Reliability
5.Extremely Durable / Scratch Resistant
6.Compatible with Win7, Win8, Win10, Android, Linux system
7.Simple calibration
Functionalities:
1. Stable operation
2. Accurate Touch Response
3. Durable
4. Scratch-resistant glass sur face
5. Anti-glare
6. Vandal-Proof (Tempered glass
7.superior Image Clarity resolution
Specification:
| General | |
| Model | COT121-IWF02-HB |
| Series | Open frame |
| Monitor Dimensions | Width: 287mm Height: 273mm Depth: 43.9mm |
| LCD Type | 12.1” Active matrix TFT-LCD |
| Video Input | VGA and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 246.0(H)×184.5(V) |
| Resolution | 800×600@75Hz |
| Dot Pitch(mm) | 0.3075×0.3075 |
| Nominal Input Voltage VDD | +3.3V(Typ) |
| Viewing angle (v/h) | 60°/70°(CR>5) |
| Contrast | 600:1 |
| Luminance(cd/m2) | 1000 |
| Response Time(Rising/Falling) | 5s/5s |
| Support Color | 16.2M colors |
| Backlight MTBF(hr) | 50000 |
| Touchscreen Specification | |
| Type | Cjtouch surface acoustic wave (SAW) touch screen |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |

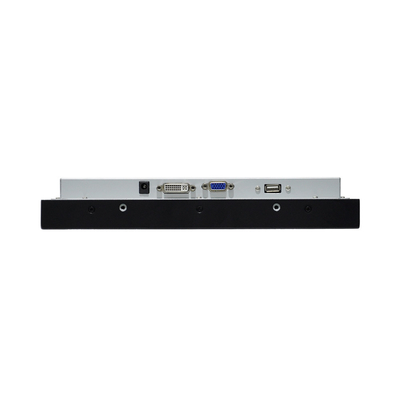

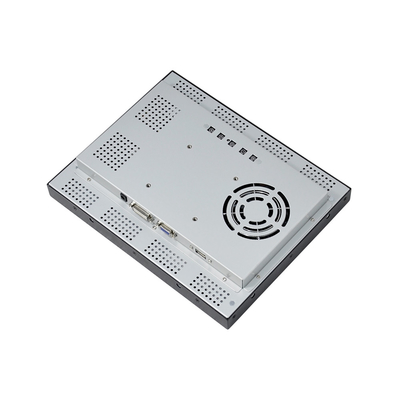

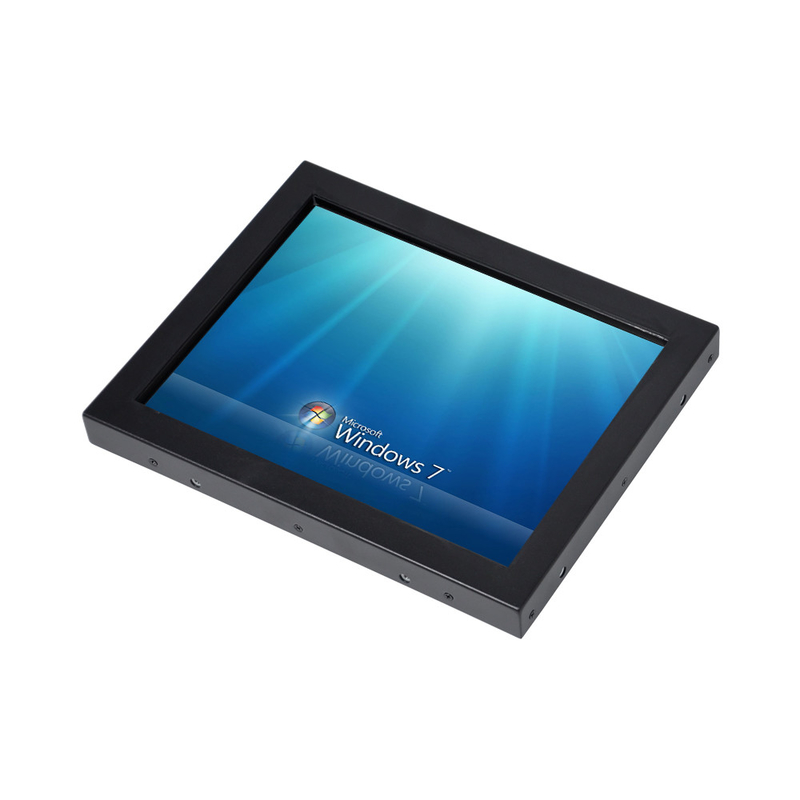

Product Picture
Drawing :
