Product Details:
|
| Product Name: | AIO Touch PC Computer | Touch Type: | PCAP Touch Screen |
|---|---|---|---|
| Touch Points: | Multi Touch 10 Point Touch | Aspect Ratio: | 4:3 |
| Resolution: | 800*600 | CPU: | I3 / I5 / I7 / Android |
| RAM: | 2GB-32GB | Memory: | 32GB- 512GB |
| Interface: | H-DMI /VGA /RJ45 / USB / COM, Etc. | Custom Made: | AIO Touch PC Computer With Camera/ 4G/ Printer, Etc. |
| Highlight: | Vandal Proof AIO Touch PC,Waterproof AIO Touch PC,ODM All In One Touch PC |
||
12.1'' AIO Touch PC Computer Features:
12.1inch AIO Touch PC Computer Specifications:
| General Information | |
| Model | CCT121-CFF-J1900 |
| CPU | J1900 / I3/I5/I7/ Android optional |
| RAM | 2/4/8/16/32GB RAM |
| Memory | 32/64/128/256/512 GB SSD |
| Interface | H-DMI, VGA, USB, COM, RJ45 |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
246 × 184.5 (H×V) mm |
| Resolution |
800×600@60Hz |
| Pixel Pitch(mm) |
0.3075×0.3075 mm (H×V) |
| Nominal input voltage VDD | 3.3v |
| Viewing angle(v/h) |
80/80/65/75 (Typ.)(CR≥10) |
| Contrast |
800:1 |
| Luminance (cd/m2) | 400 cd/m² (Typ.) |
| Response time | 30 (Typ.)(Tr+Td) ms |
| Support color |
262K / 16.7M |
| Backlight MTBF(hr) | 30000 |
|
Touchscreen Specification |
|
|
Type |
Cjtouch Projected Capacitive touch screen |
|
Multi touch |
10 points touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Package :
1 or 2 pcs AIO Touch PC Computer in one carton, EPE package inside
Shipping :
For small order: By Fedex, TNT, UPS, DHL etc. door to door service
For big order: By air to airport or by sea to seaport

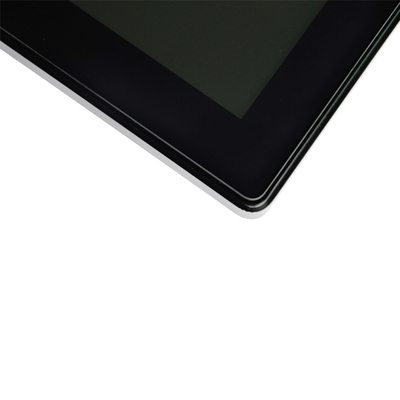

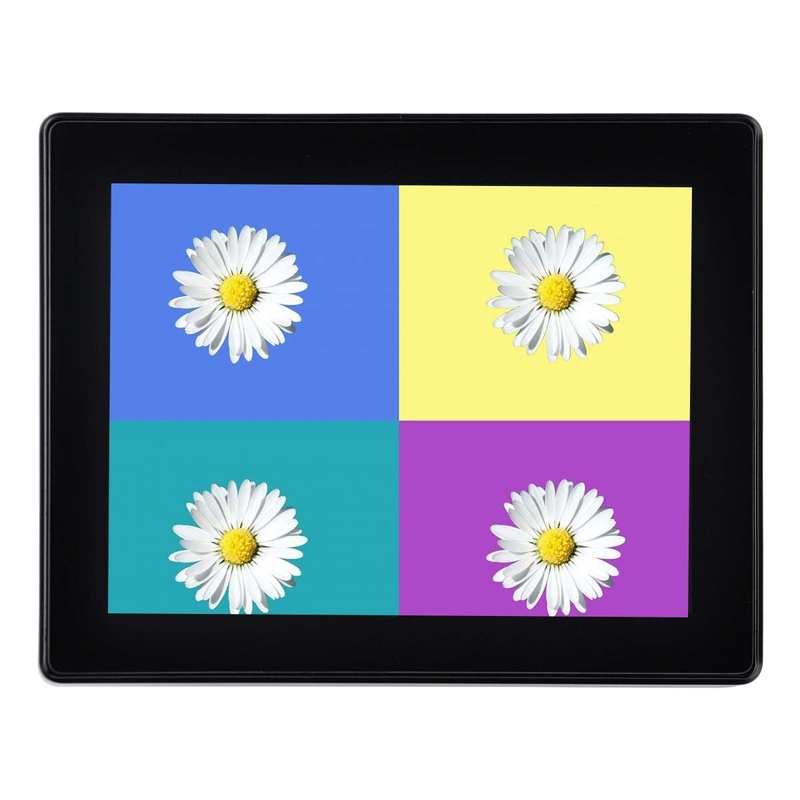

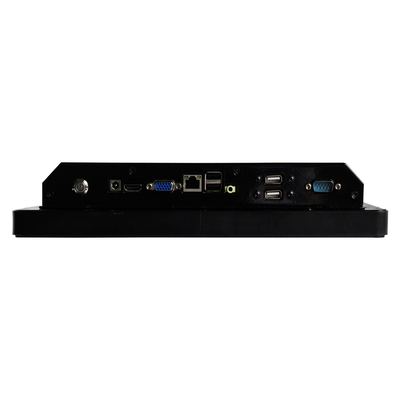

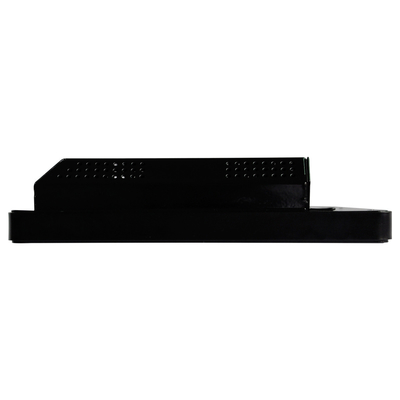

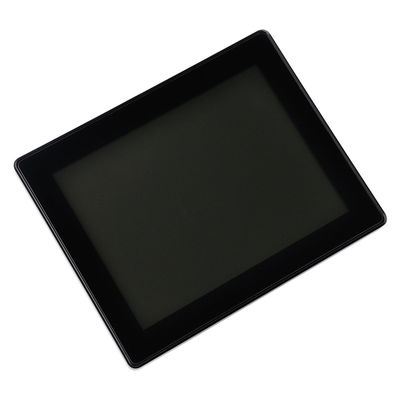

Pictures:
12.1'' AIO Touch PC computer Drawing:
