Product Details:
|
| Touch Type: | Pcap Touchscreen | Application: | Information Kiosks |
|---|---|---|---|
| Interface: | USB | Glass: | Tempered Glass |
| Touch Points: | 10 Touch Points | Structure: | G+G |
| Input: | Hand Writing Or Capacitive Pen | Humidity Resistance: | 85% RH, 120 H |
| Highlight: | Antiglare Multi Touch Capacitive Touchscreen,Dustproof Multi Touch Capacitive Touchscreen,Capacitive Touch Screen PCAP |
||
Projected capacitive touch screen 10.1 Inch Pcap Touch Screen with high quality glass
What’s the Difference Between IR and PCAP Displays?
Infrared (IR) and Projected Capacitive (PCAP) are the two most common types of touch screen technologies. Although you may not be able to tell the difference when using an interactive touch screen unless you know how to identify which is which, they are quite different in structure and design. Below we’ll break down the difference between the two to give you better idea of why one might be better than the other for whatever purpose you may be buying or renting your touch systems for.
What is capacitive touch screen technology?
Capacitive touch screens are control displays that utilise the electrical properties of the human body as input. When a finger (or specialised input device, such as stylus) comes in contact with the display it detects when and where on the display the user touches it.
Typical Application
We use touch screens widely in a variety of industries. We frequently use touch screen in Shopping malls, exhibition halls and venues. Therefore,It can transmit and publicize information mainly through the touch screen. To facilitate delivery to customers.
Markets
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

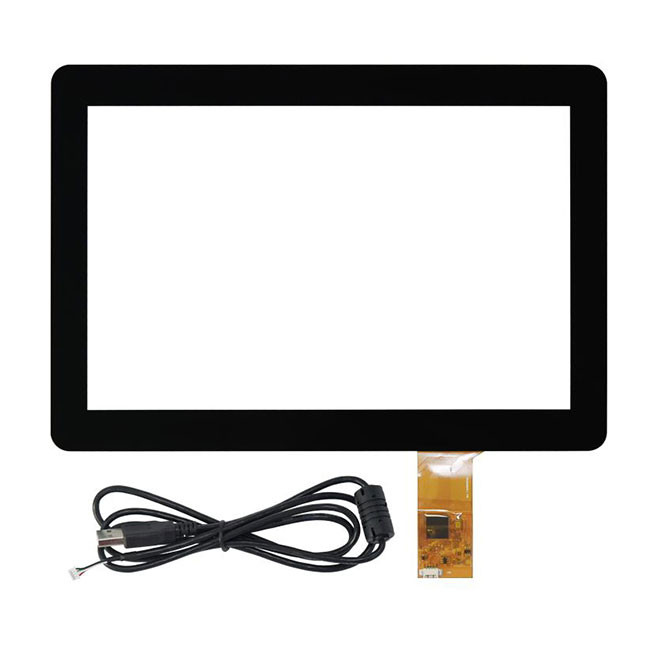

Picture of Product
Technical Drawing
